Crankshaft Position (CKP) Sensor - 2.3L Removal/Installation
›
Notes
Crankshaft Position (CKP) Sensor - 2.3L Removal/Installation: Notes

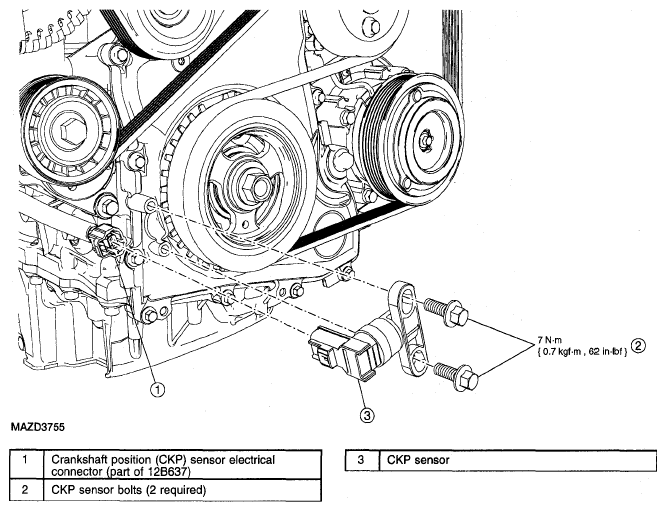

Fig 1: Crankshaft Position (CKP) Sensor With Torque Specifications -- 2.3L Replacement Components
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
