Throttle Position (TP) Sensor - 3.0L (4V) Removal/Installation

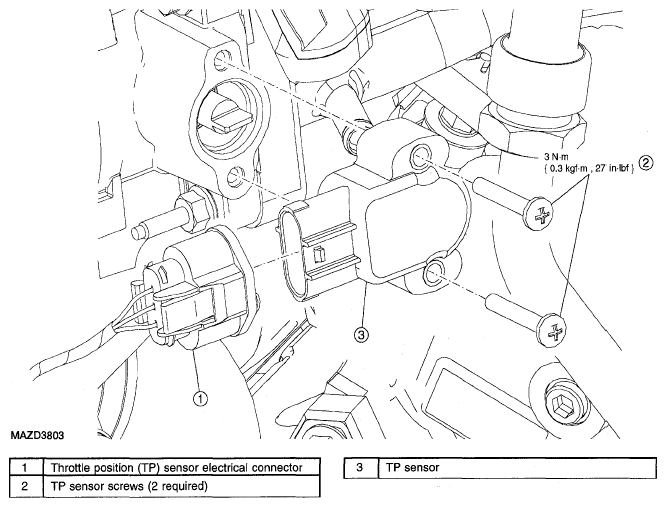

Fig 1: Throttle Position (TP) Sensor With Torque Specifications -- 3.0L (4V) Replacement Components

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the throttle position (TP) sensor electrical connector.
2. Remove the 2 screws and the TP sensor.
   • To install, tighten to 3 N.m {0.3 kgf.m, 27 in.lbf}.
3. To install, reverse the removal procedure.
