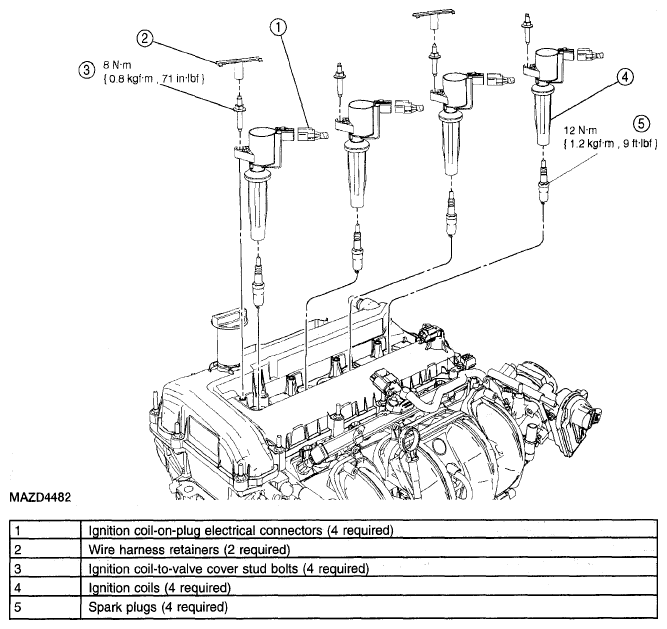

Engine Ignition - Exploded View

Fig 1: Exploded View Of Engine Ignition & Torque Specifications

Courtesy of MAZDA MOTORS CORP.

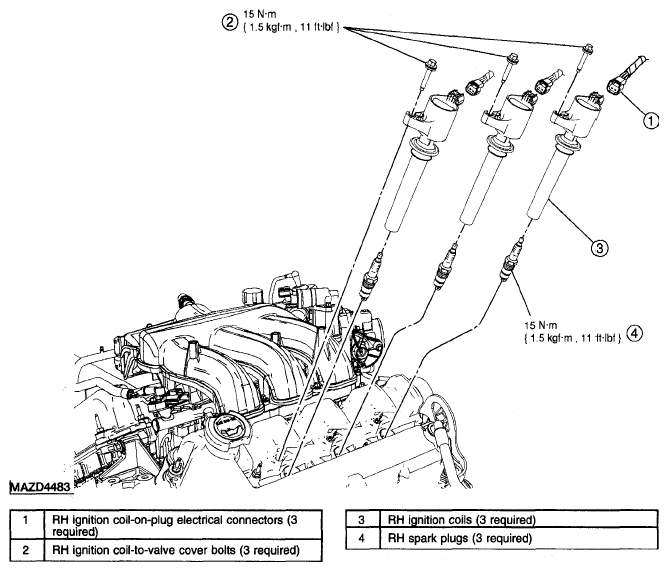

Engine Ignition - RH

Fig 2: Exploded View Of (RH) Engine Ignition & Torque Specifications

Courtesy of MAZDA MOTORS CORP.

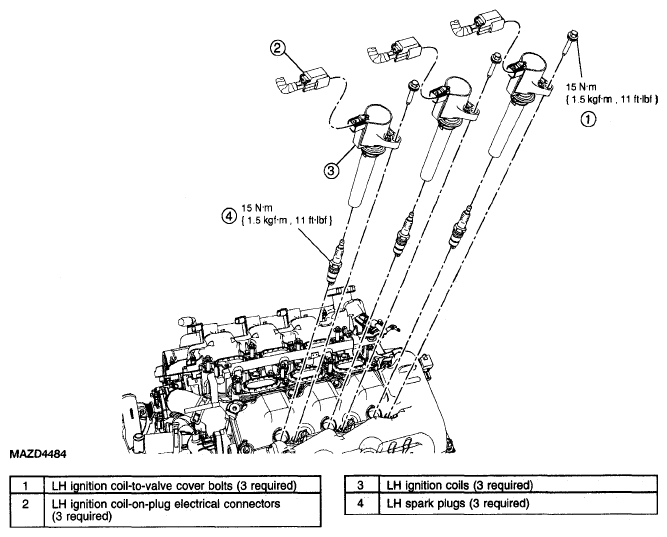

Engine Ignition - LH

Fig 3: Exploded View Of (LH) Engine Ignition & Torque Specifications

Courtesy of MAZDA MOTORS CORP.

1. For additional information, see the procedures in this section.
