Generator Removal/Installation [L3 With TC]: Notes
WARNING:
- Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
- When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery cable before performing the following operation.
CAUTION:
- The generator can be damaged by the heat from the exhaust manifold. Make sure the generator duct is installed securely.
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3 WITH TC] ).
- Disconnect the negative battery cable.
- Remove the charge air cooler and charge air cooler bracket. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION [L3 WITH TC] .)
- Remove the heat insulator (body side) and exhaust manifold insulator (upper). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [L3 WITH TC] .)
- Remove the under cover and splash shield as a single unit.
- Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [L3 WITH TC] .)

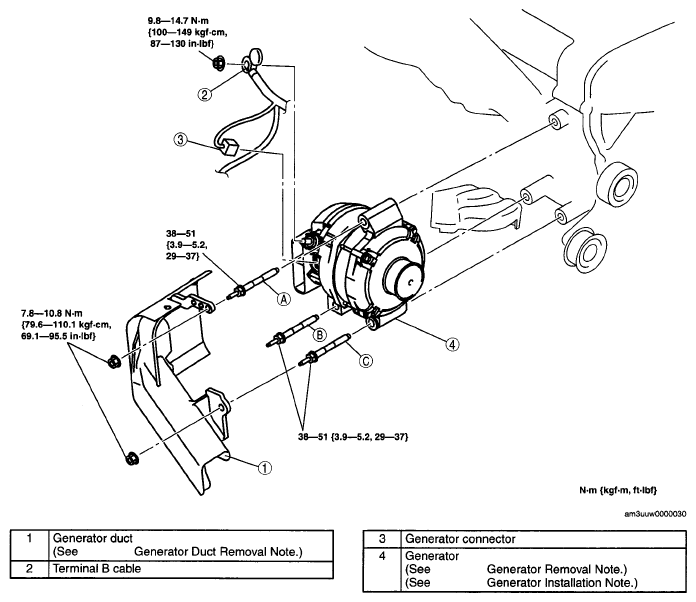

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
