Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment & Dash Overview

G00270944

Courtesy of MAZDA MOTORS CORP.

Fig 2: Engine Compartment & Dash Overview

G00270945

Courtesy of MAZDA MOTORS CORP.

Fig 3: Engine Compartment & Dash Overview

G00270946

Courtesy of MAZDA MOTORS CORP.

Fig 4: Dash

G00270947

Courtesy of MAZDA MOTORS CORP.

Fig 5: Engine Compartment

G00270948

Courtesy of MAZDA MOTORS CORP.

Fig 6: Dash

G00270949

Courtesy of MAZDA MOTORS CORP.

Fig 7: Dash

G00270950

Courtesy of MAZDA MOTORS CORP.

Fig 8: Vehicle Overview

G00270952

Courtesy of MAZDA MOTORS CORP.

Fig 9: Engine Compartment & Vehicle Overview

G00270956

Courtesy of MAZDA MOTORS CORP.

Fig 10: Engine Compartment & Vehicle Overview

G00270959

Courtesy of MAZDA MOTORS CORP.

Fig 11: Engine Compartment

G00270960

Courtesy of MAZDA MOTORS CORP.

Fig 12: Dash

G00270961

Courtesy of MAZDA MOTORS CORP.

Fig 13: Vehicle Overview (4 Door)

G00270963

Courtesy of MAZDA MOTORS CORP.

Fig 14: Dash & Vehicle Overview (5 Door)

G00270967

Courtesy of MAZDA MOTORS CORP.

Fig 15: Vehicle Overview

G00271141

Courtesy of MAZDA MOTORS CORP.

Fig 16: Engine Compartment

G00271142

Courtesy of MAZDA MOTORS CORP.

Fig 17: Dash

G00271143

Courtesy of MAZDA MOTORS CORP.

Fig 18: Vehicle Overview

G00271144

Courtesy of MAZDA MOTORS CORP.

Fig 19: Vehicle Overview

G00271145

Courtesy of MAZDA MOTORS CORP.

Fig 20: Vehicle Overview

G00271149

Courtesy of MAZDA MOTORS CORP.

Fig 21: Vehicle Overview

G00271150

Courtesy of MAZDA MOTORS CORP.

Fig 22: Engine Compartment & Vehicle Overview

G00271152

Courtesy of MAZDA MOTORS CORP.

Fig 23: Dash & Center Console

G00271153

Courtesy of MAZDA MOTORS CORP.

Fig 24: Vehicle Overview

G00271154

Courtesy of MAZDA MOTORS CORP.

Fig 25: Vehicle Overview

G00271155

Courtesy of MAZDA MOTORS CORP.

Fig 26: Engine Compartment

G00271156

Courtesy of MAZDA MOTORS CORP.

Fig 27: Dash

G00271157

Courtesy of MAZDA MOTORS CORP.

Fig 28: Dash & Engine Compartment

G00271158

Courtesy of MAZDA MOTORS CORP.

Fig 29: Engine Compartment

G00271159

Courtesy of MAZDA MOTORS CORP.

Fig 30: Dash & Center Console

G00271160

Courtesy of MAZDA MOTORS CORP.

Fig 31: Engine Compartment & Vehicle Overview

G00271161

Courtesy of MAZDA MOTORS CORP.

Fig 32: Engine Compartment

G00271163

Courtesy of MAZDA MOTORS CORP.

Fig 33: Engine Compartment

G00271164

Courtesy of MAZDA MOTORS CORP.

Fig 34: Engine Compartment

G00271165

Courtesy of MAZDA MOTORS CORP.

Fig 35: Engine Compartment

G00271166

Courtesy of MAZDA MOTORS CORP.

Fig 36: Dash & Engine Compartment

G00271167

Courtesy of MAZDA MOTORS CORP.

Fig 37: Dash & Engine Compartment

G00271168

Courtesy of MAZDA MOTORS CORP.

Fig 38: Engine Compartment

G00271169

Courtesy of MAZDA MOTORS CORP.

Fig 39: Engine Compartment

G00271170

Courtesy of MAZDA MOTORS CORP.

Fig 40: Engine Compartment

G00271186

Courtesy of MAZDA MOTORS CORP.

Fig 41: Engine Compartment

G00271175

Courtesy of MAZDA MOTORS CORP.

Fig 42: Dash

G00271177

Courtesy of MAZDA MOTORS CORP.

Fig 43: Engine Compartment

G00271178

Courtesy of MAZDA MOTORS CORP.

Fig 44: Vehicle Overview

G00271179

Courtesy of MAZDA MOTORS CORP.

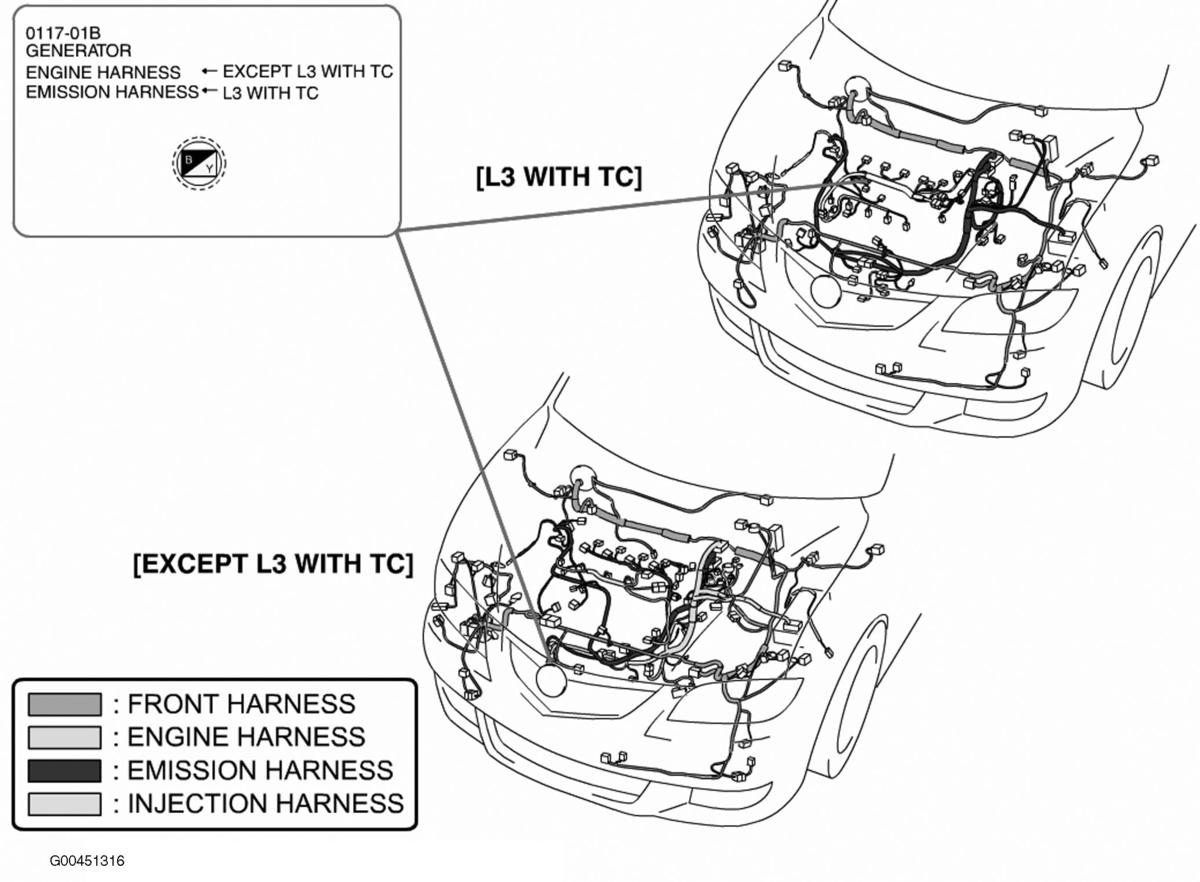

Fig 45: Engine Compartment

G00451316

Courtesy of MAZDA MOTORS CORP.

Fig 46: Dash & Engine Compartment

G00271182

Courtesy of MAZDA MOTORS CORP.

Fig 47: Dash

G00271183

Courtesy of MAZDA MOTORS CORP.

Fig 48: Passenger Junction Box (PJB)

G00271187

Courtesy of MAZDA MOTORS CORP.

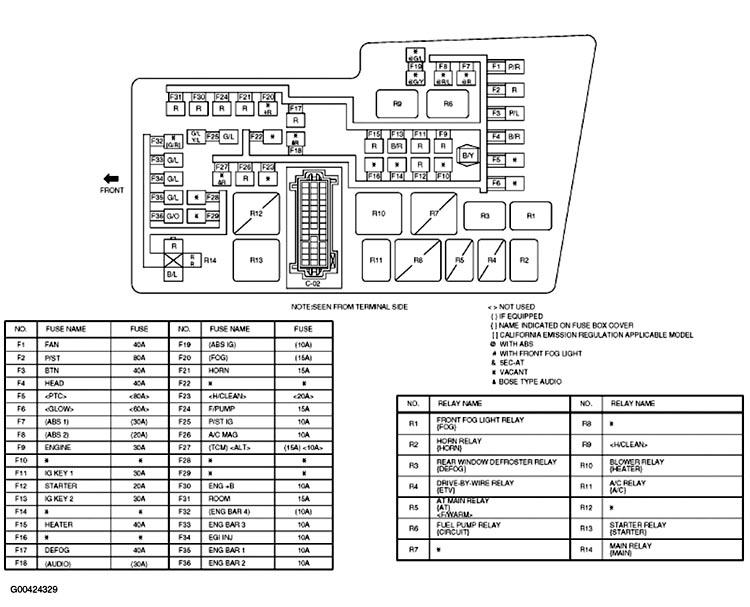

Fig 49: Fuse & Relay Box

G00434329

Courtesy of MAZDA MOTORS CORP.

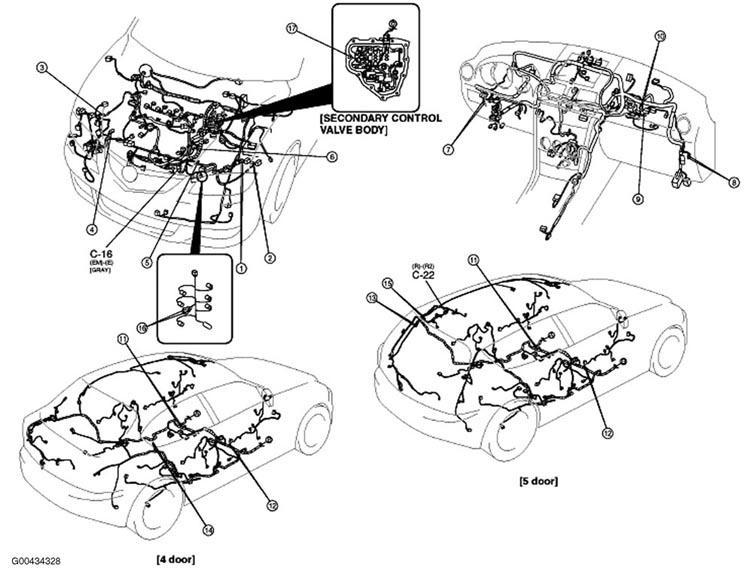

Fig 50: Vehicle Overview

G00434328

Courtesy of MAZDA MOTORS CORP.

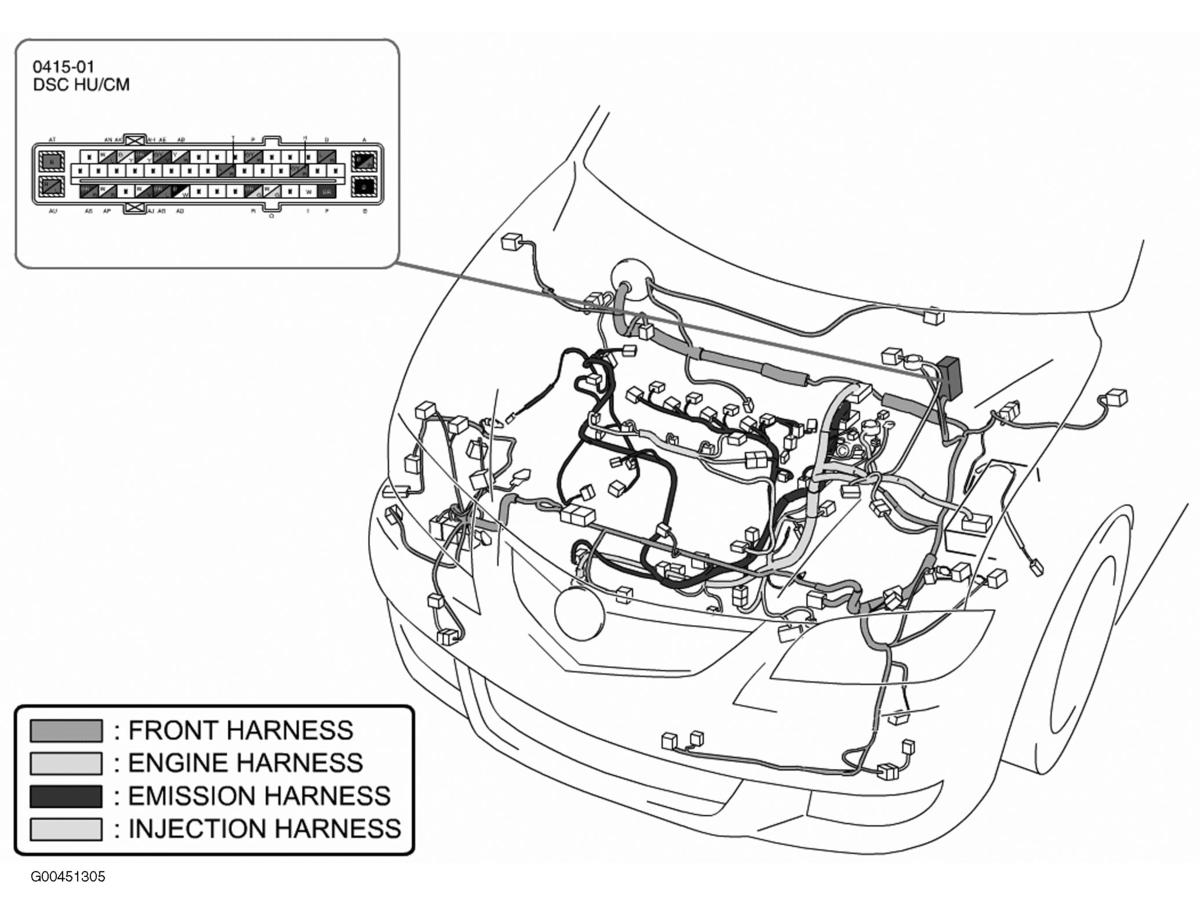

Fig 51: Left Rear Of Engine Compartment

G00451305

Courtesy of MAZDA MOTORS CORP.

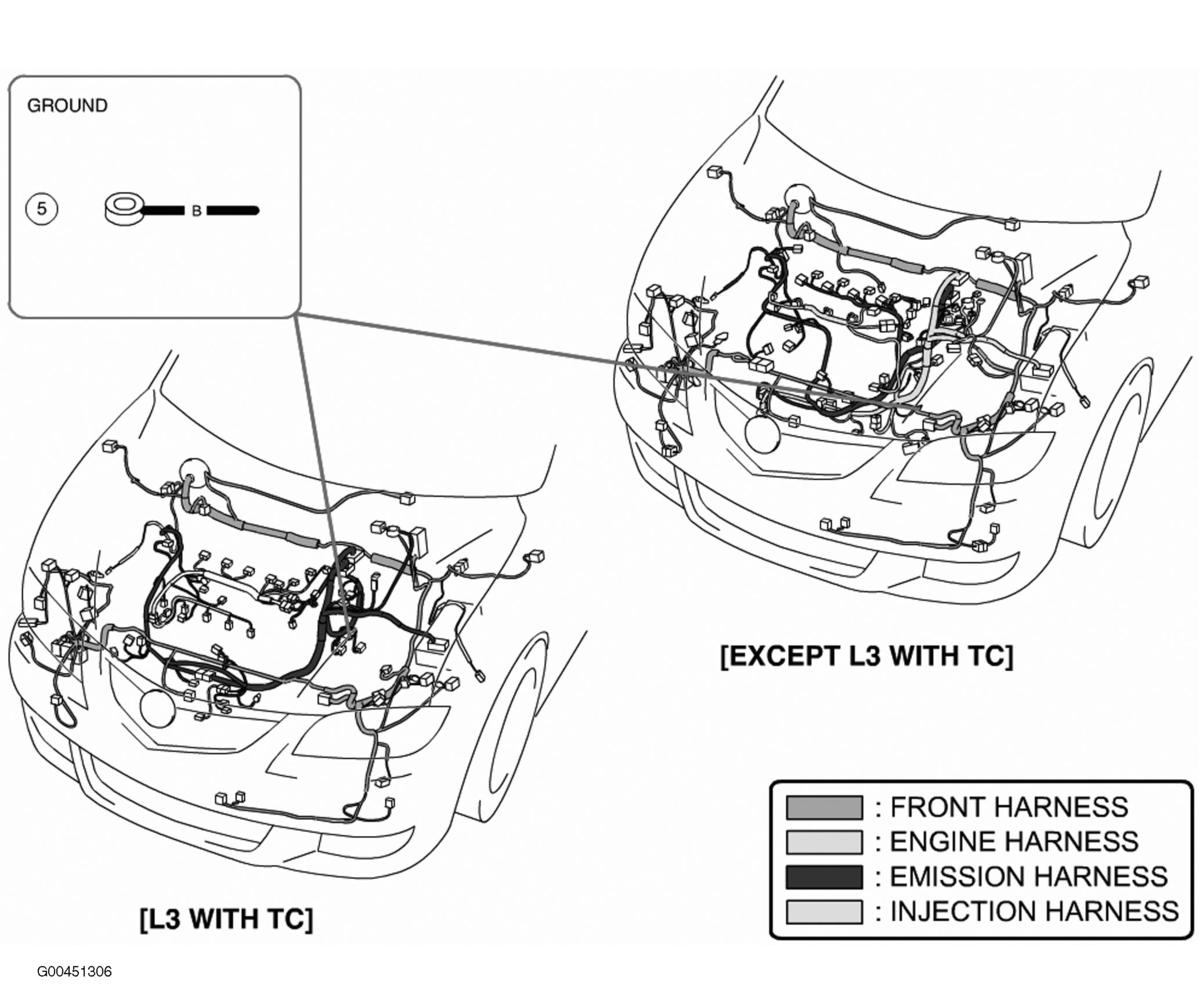

Fig 52: Left Side Of Engine Compartment

G00451306

Courtesy of MAZDA MOTORS CORP.

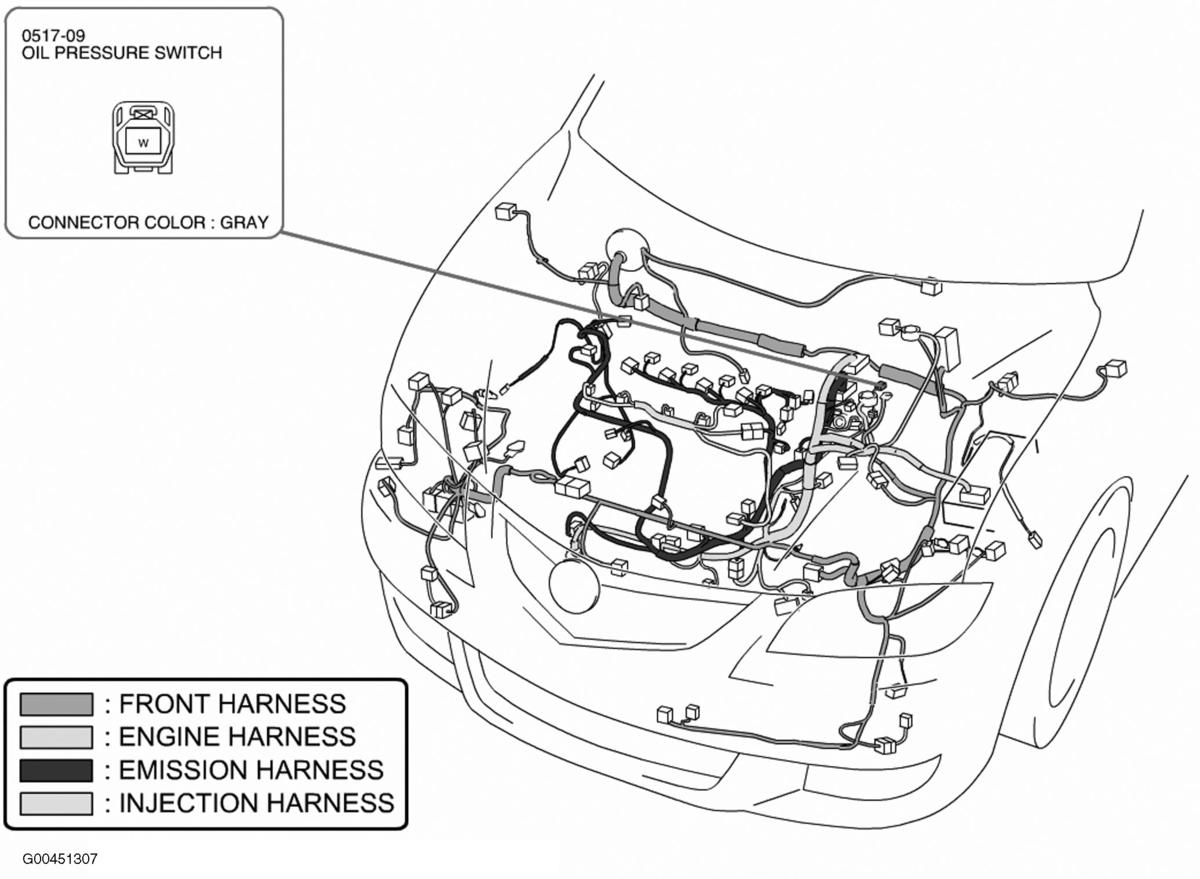

Fig 53: Left Side Of Engine Compartment

G00451307

Courtesy of MAZDA MOTORS CORP.

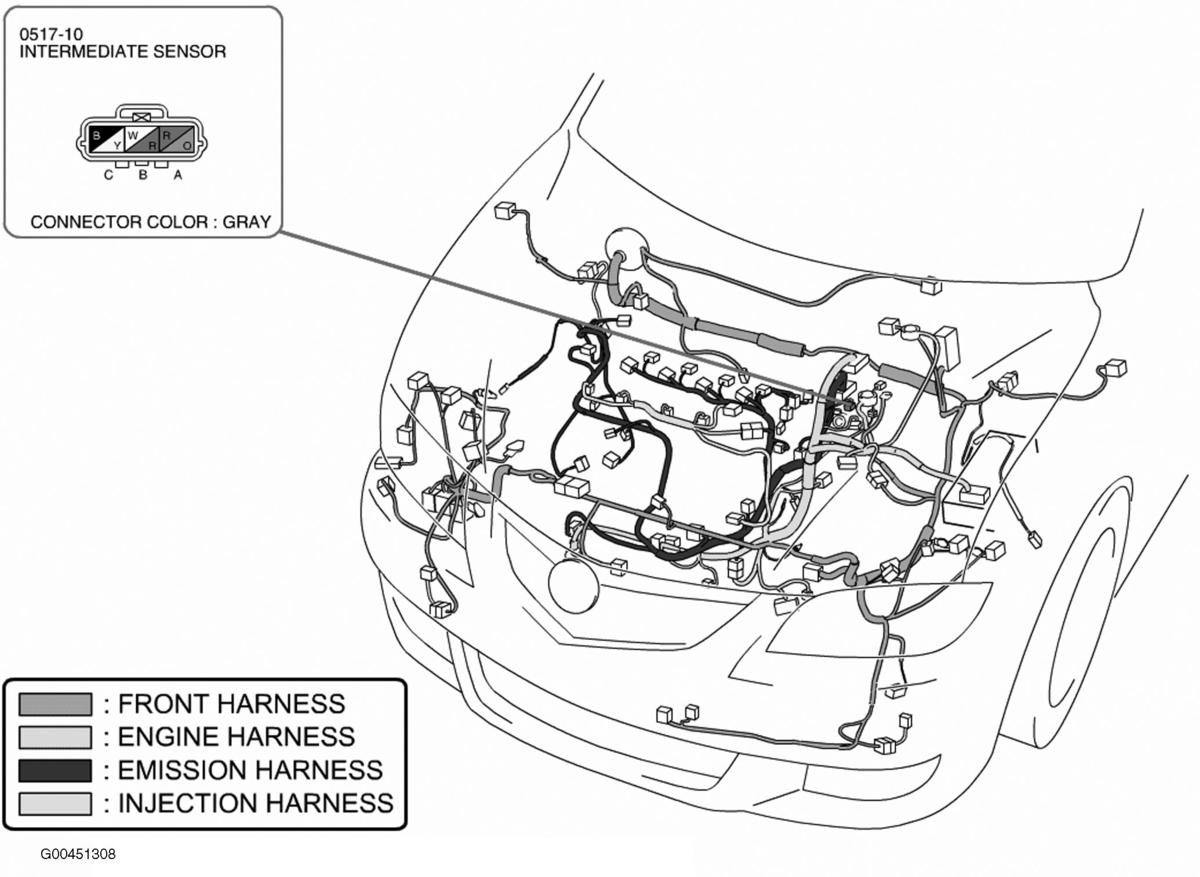

Fig 54: Right Rear Of Engine

G00451308

Courtesy of MAZDA MOTORS CORP.

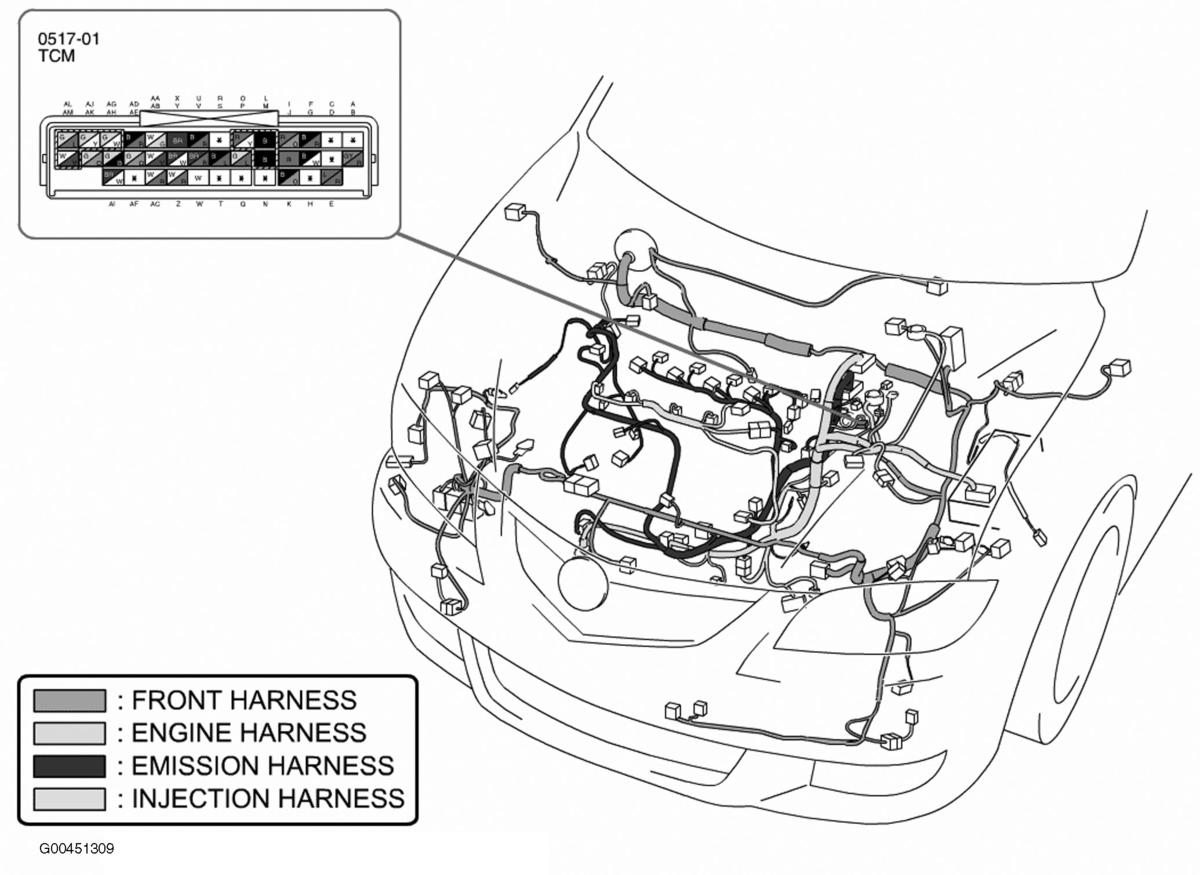

Fig 55: Left Rear Of Engine Compartment

G00451309

Courtesy of MAZDA MOTORS CORP.

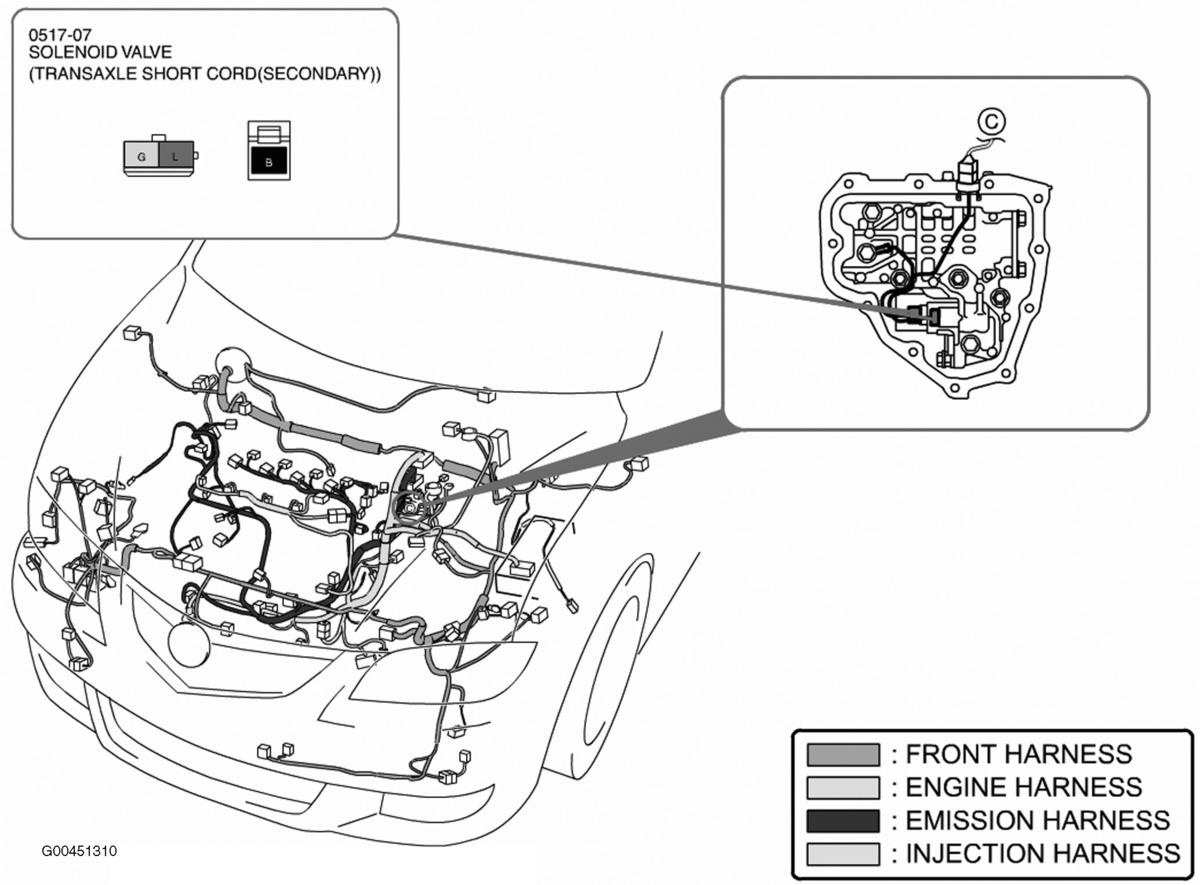

Fig 56: Automatic Transmission

G00451310

Courtesy of MAZDA MOTORS CORP.

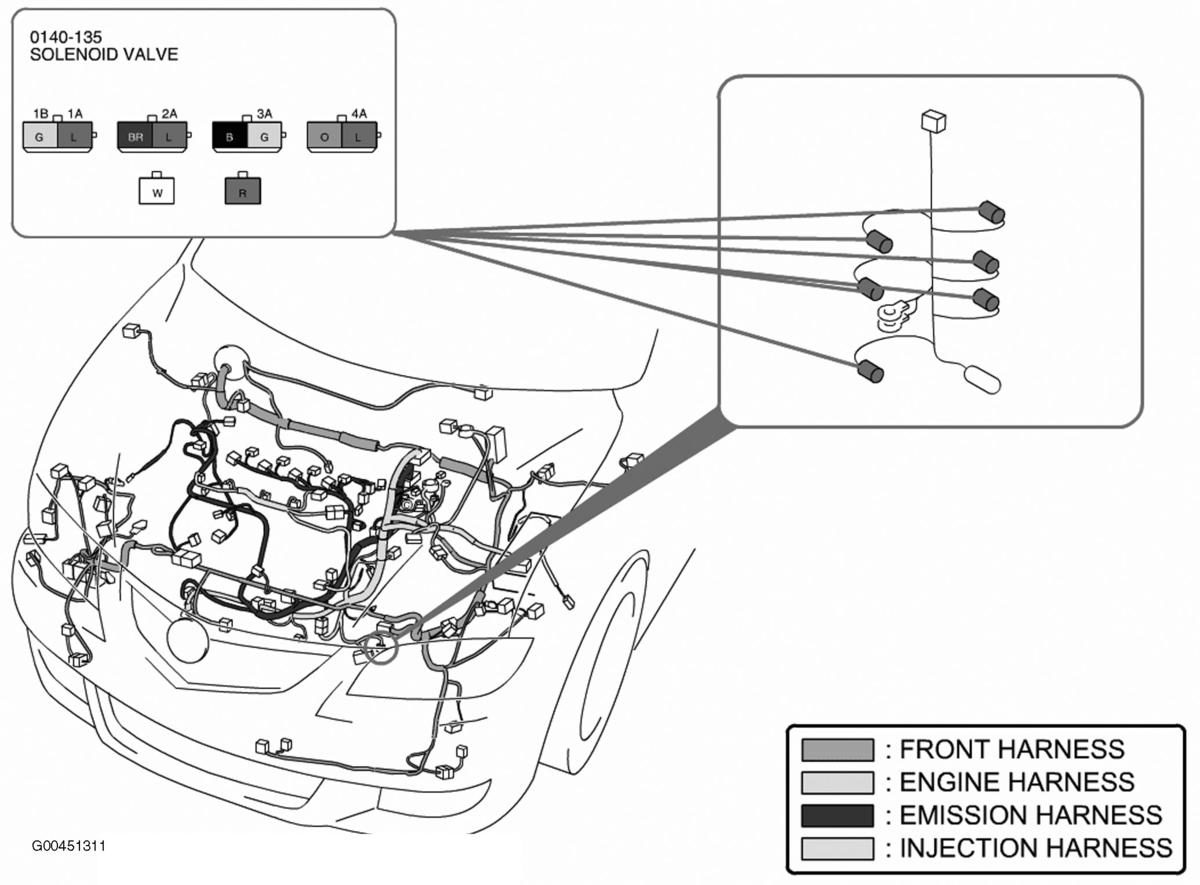

Fig 57: Transaxle

G00451311

Courtesy of MAZDA MOTORS CORP.

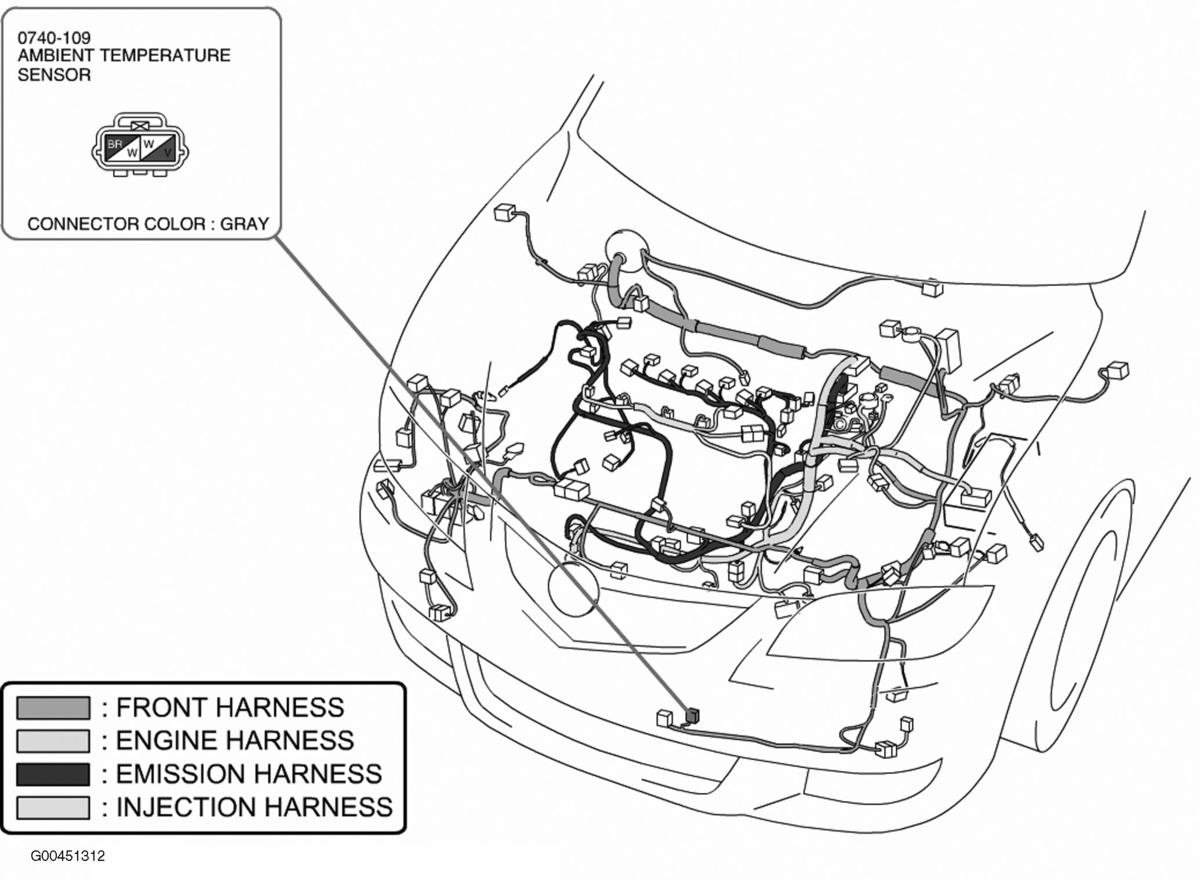

Fig 58: Left Side Of Front Fascia

G00451312

Courtesy of MAZDA MOTORS CORP.

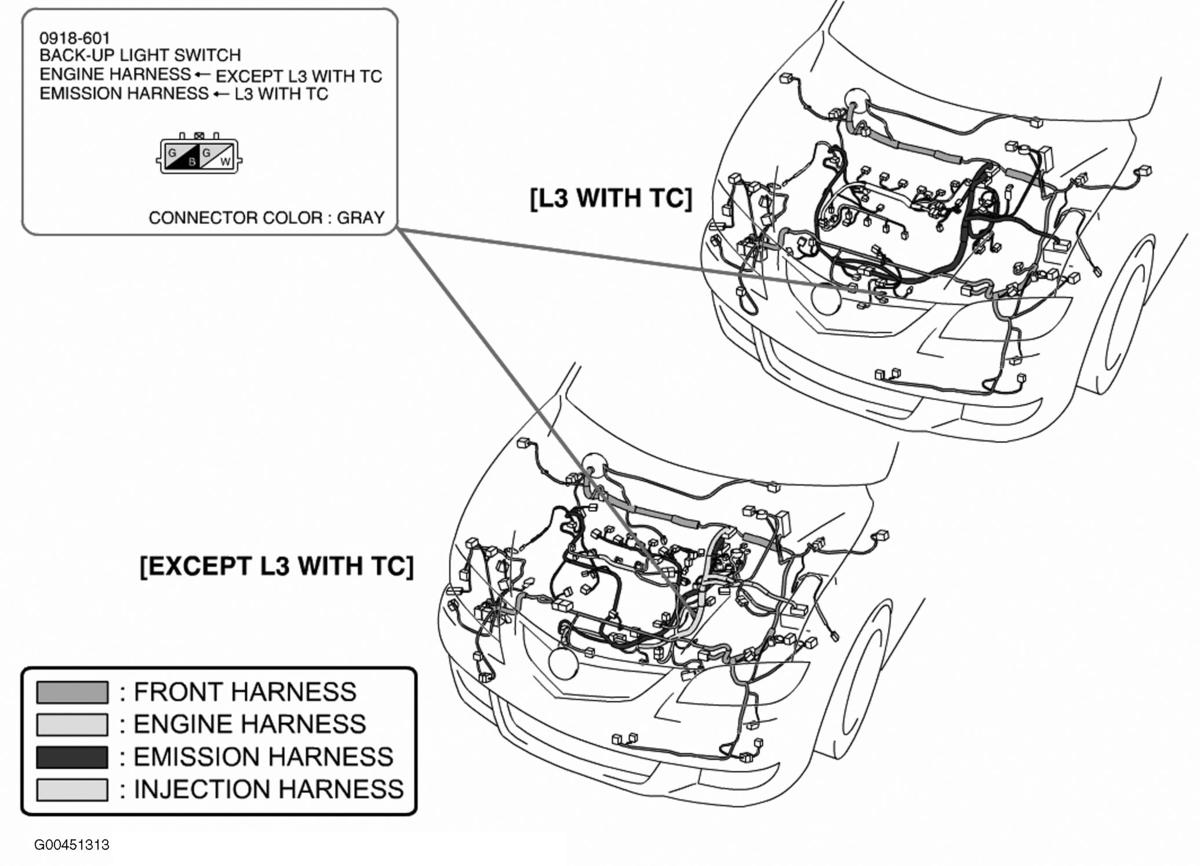

Fig 59: Left Side Of Engine Compartment

G00451313

Courtesy of MAZDA MOTORS CORP.

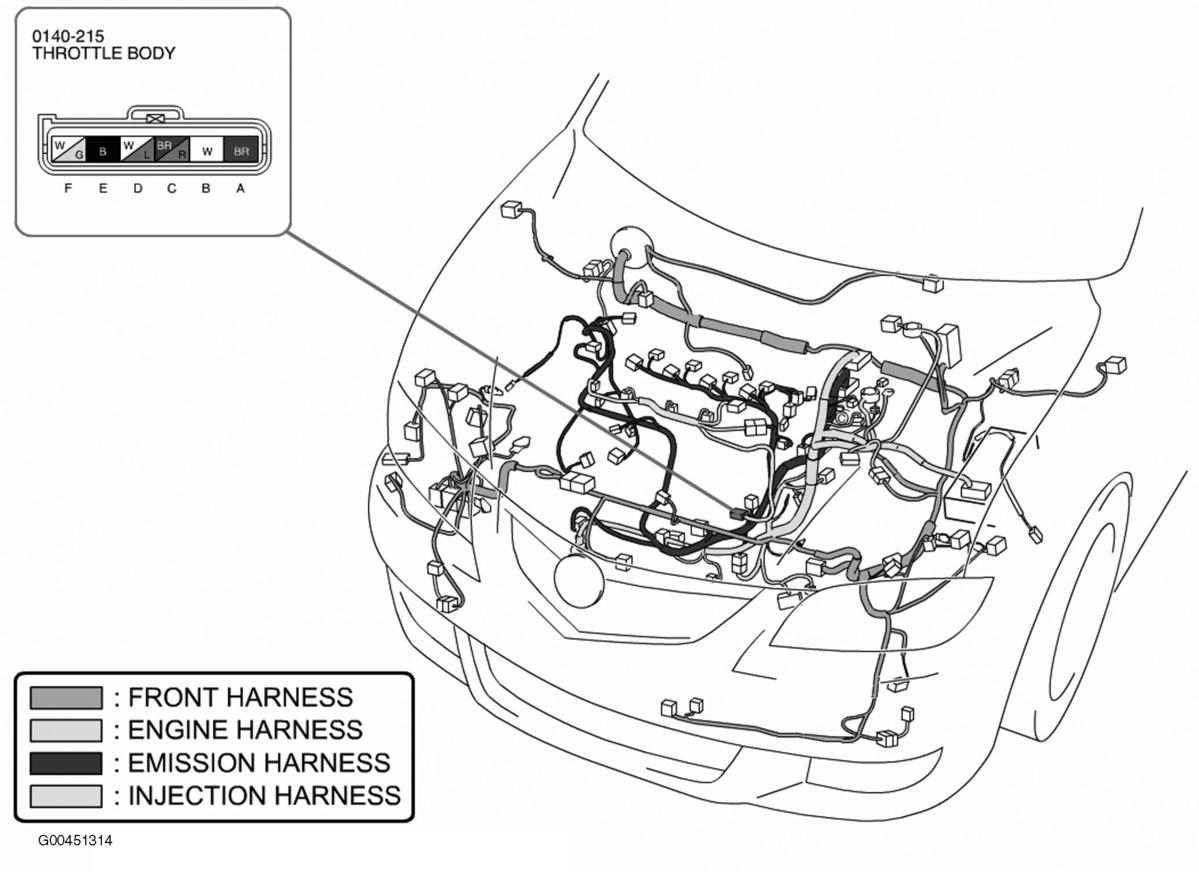

Fig 60: Left Side Of Engine

G00451314

Courtesy of MAZDA MOTORS CORP.

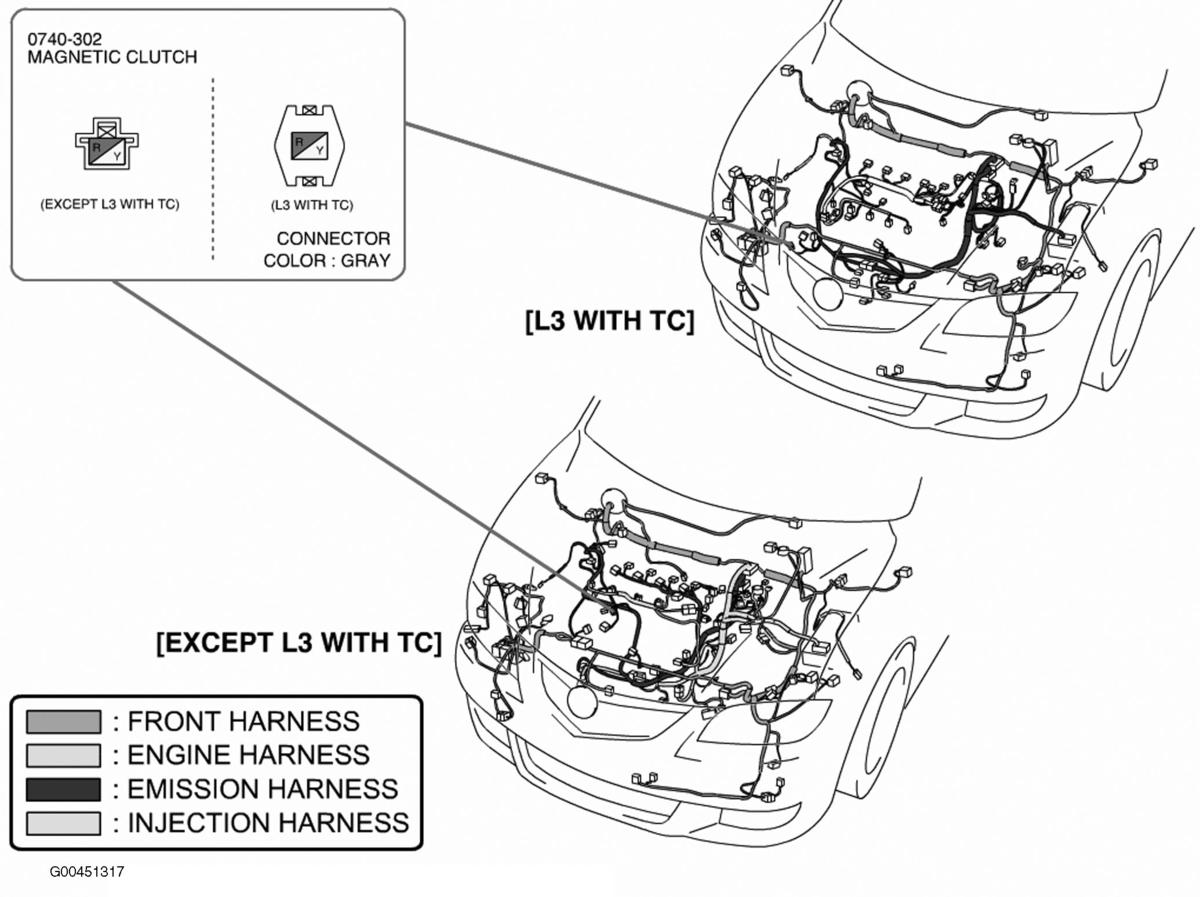

Fig 61: Front Of Engine

G00451317

Courtesy of MAZDA MOTORS CORP.

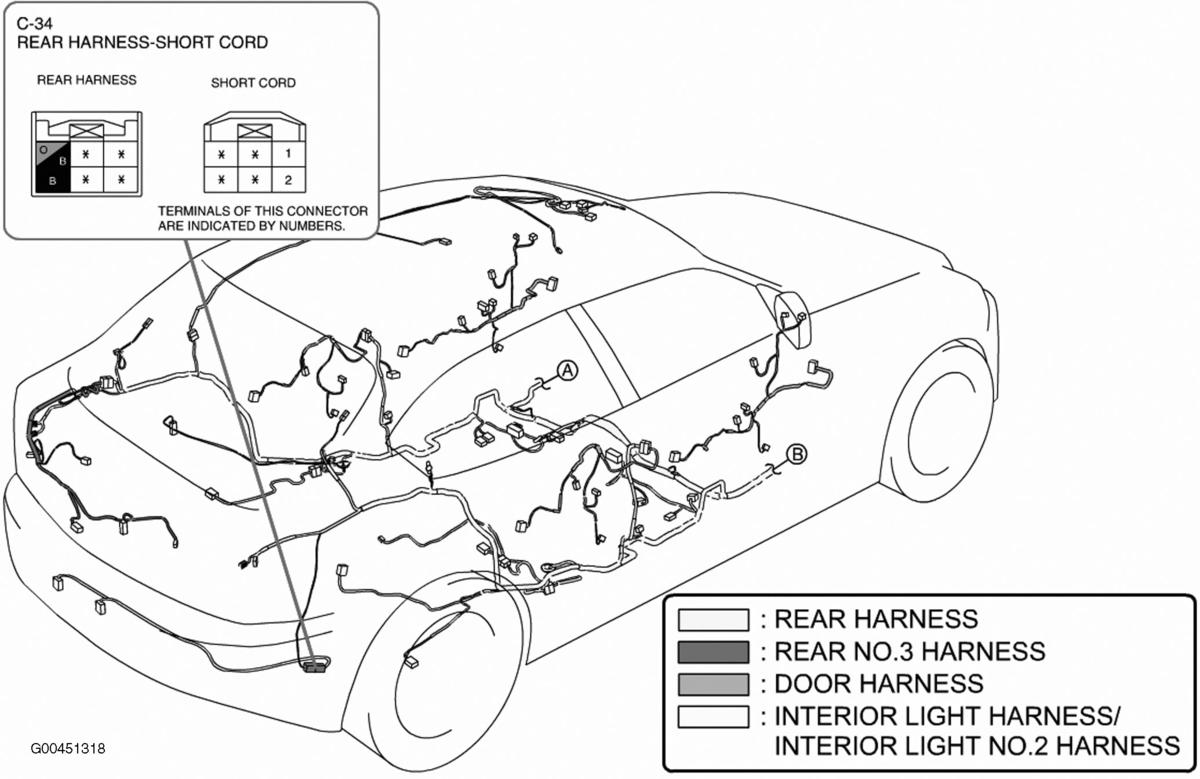

Fig 62: Right Rear Of Luggage Compartment

G00451318

Courtesy of MAZDA MOTORS CORP.

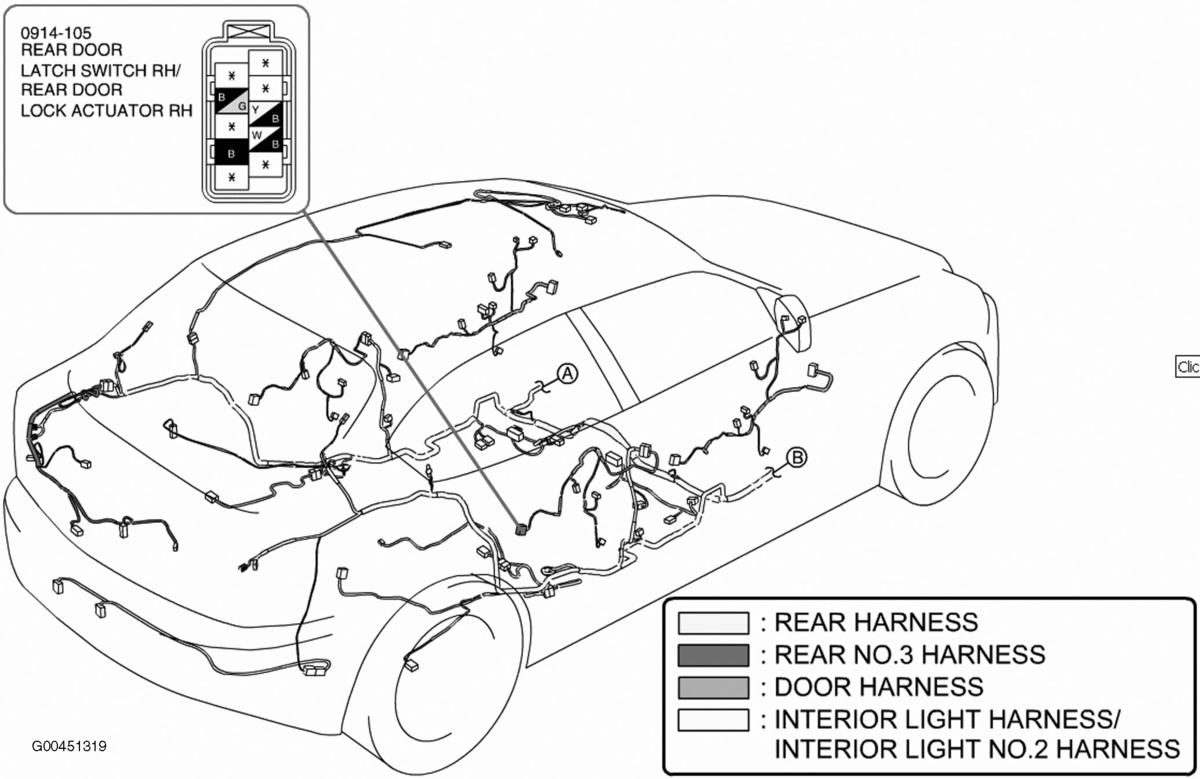

Fig 63: Right Rear Door

G00451319

Courtesy of MAZDA MOTORS CORP.

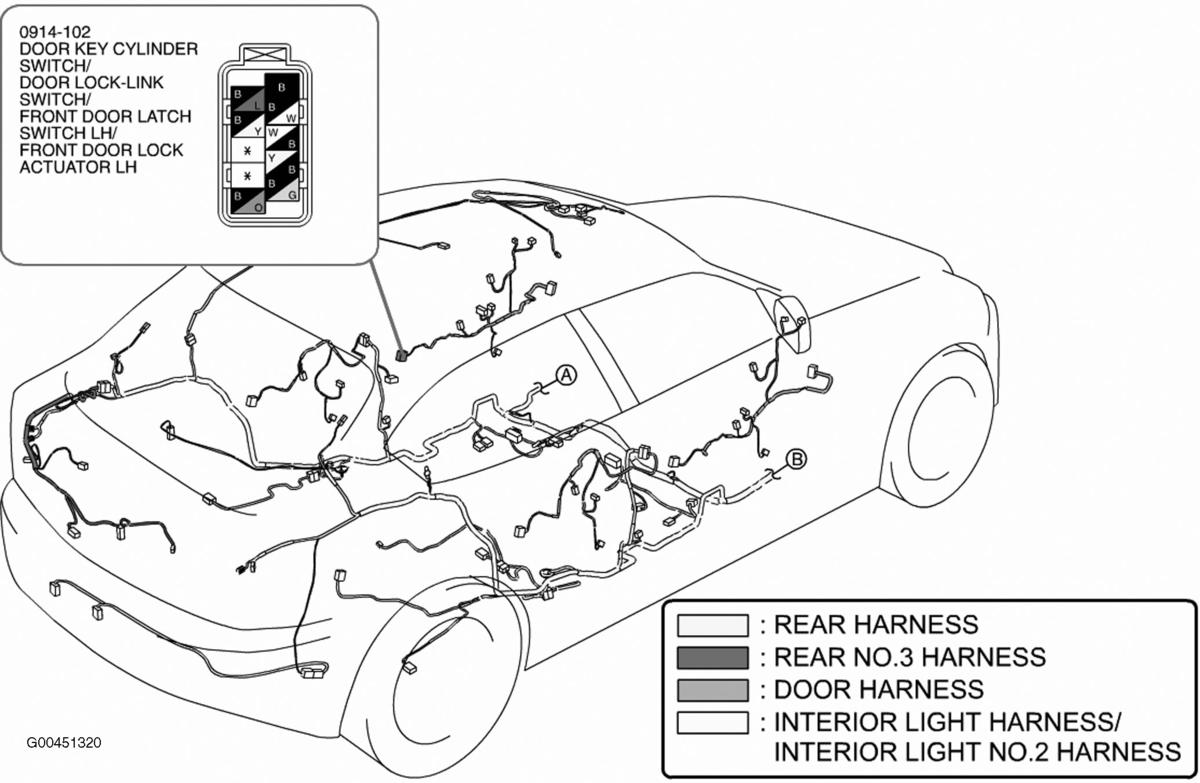

Fig 64: Driver's Door

G00451320

Courtesy of MAZDA MOTORS CORP.

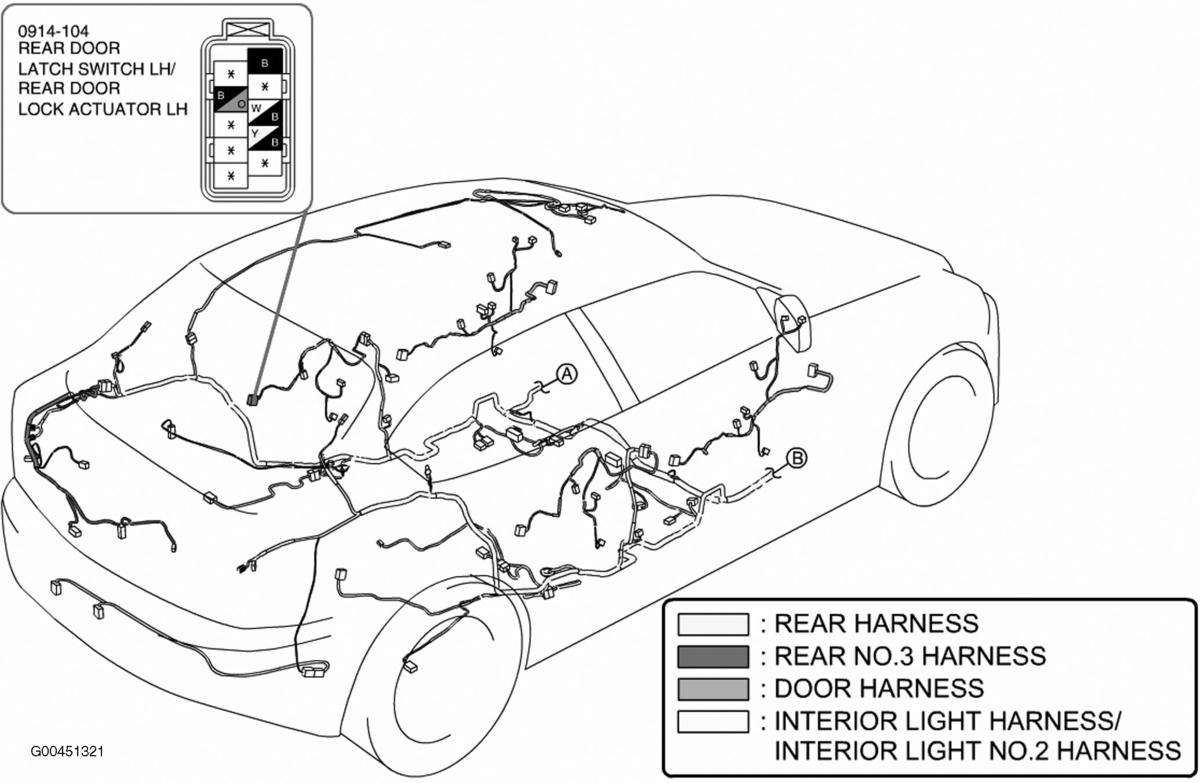

Fig 65: Left Rear Door

G00451321

Courtesy of MAZDA MOTORS CORP.

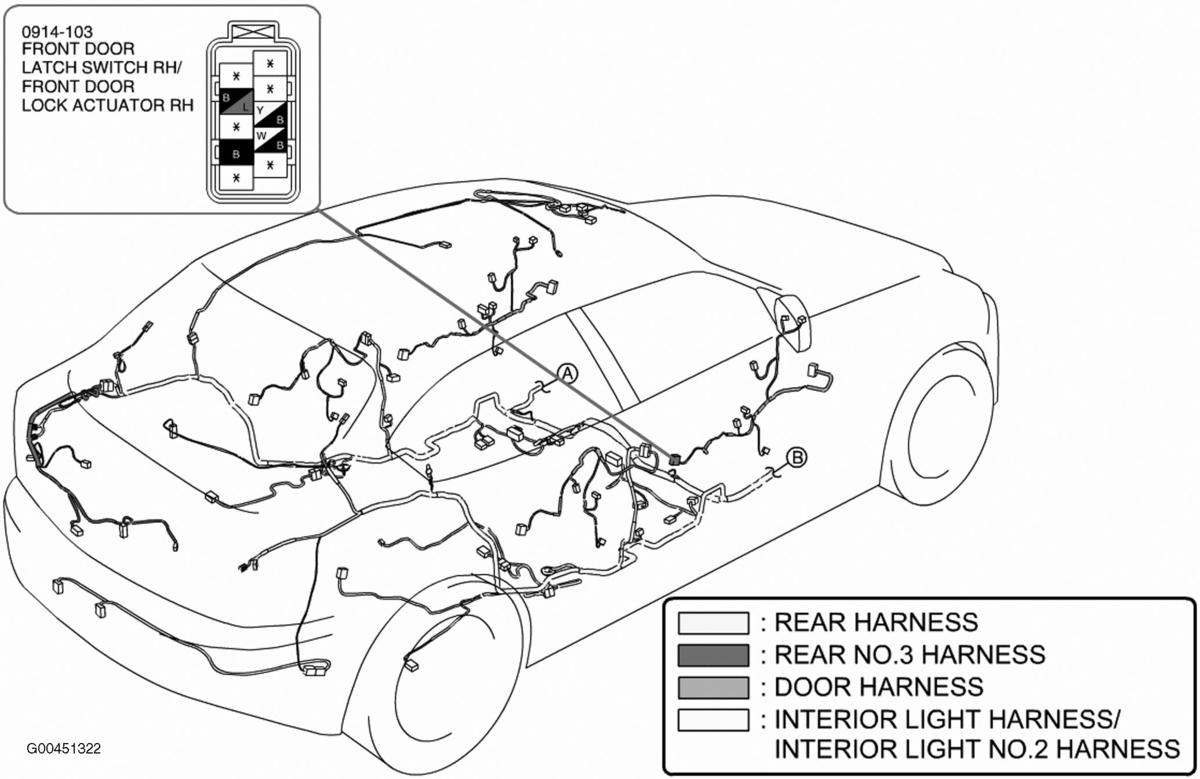

Fig 66: Front Passenger's Door

G00451322

Courtesy of MAZDA MOTORS CORP.

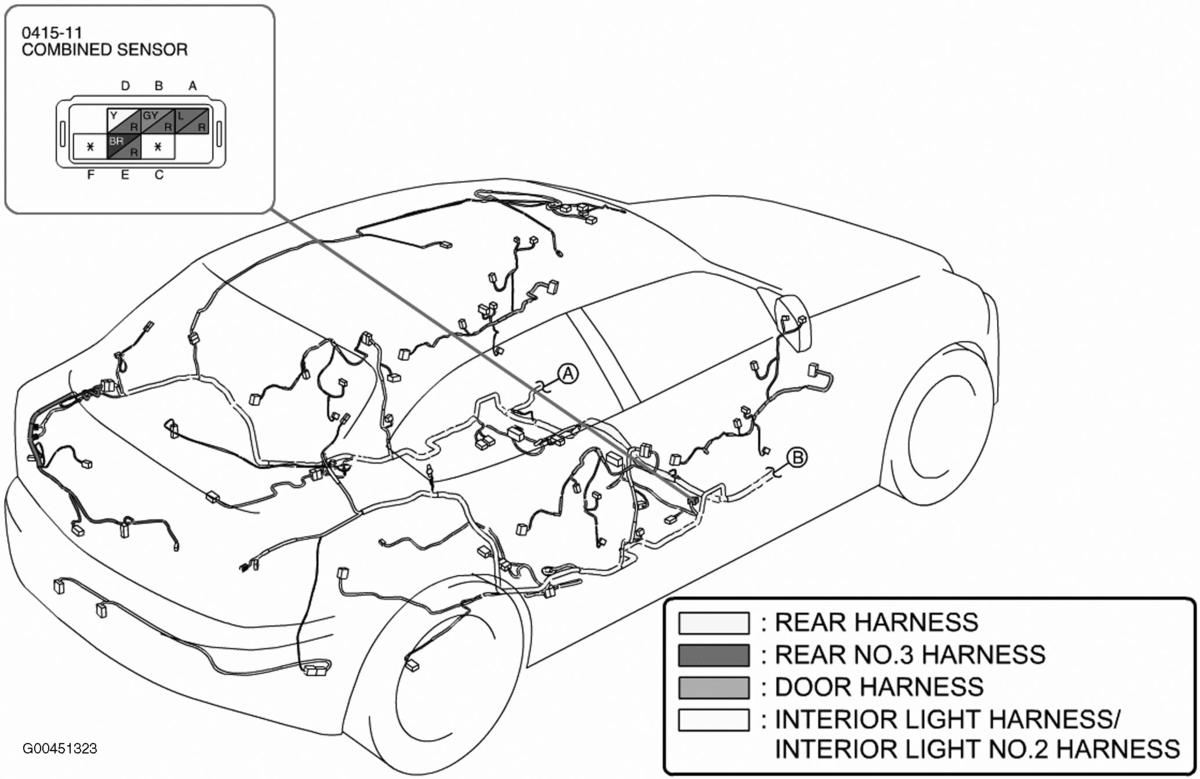

Fig 67: Under Front Passenger's Seat

G00451323

Courtesy of MAZDA MOTORS CORP.

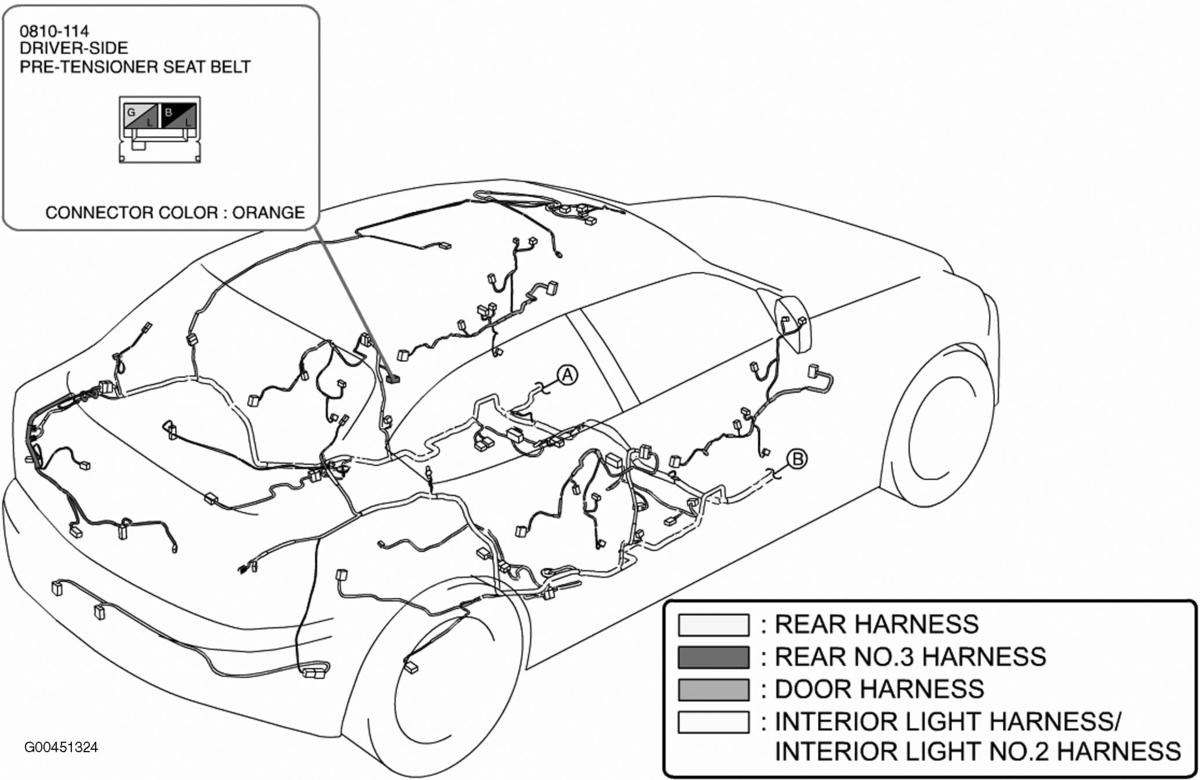

Fig 68: Left "B" Pillar

G00451324

Courtesy of MAZDA MOTORS CORP.

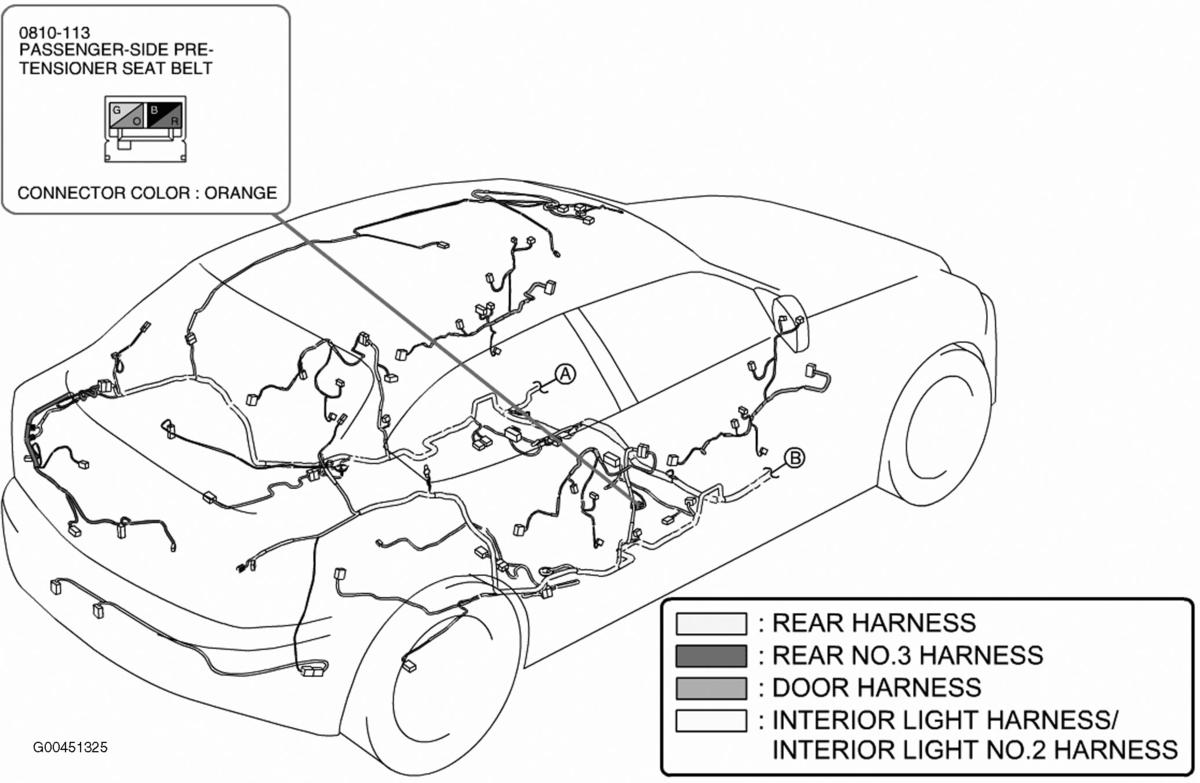

Fig 69: Right "B" Pillar

G00451325

Courtesy of MAZDA MOTORS CORP.

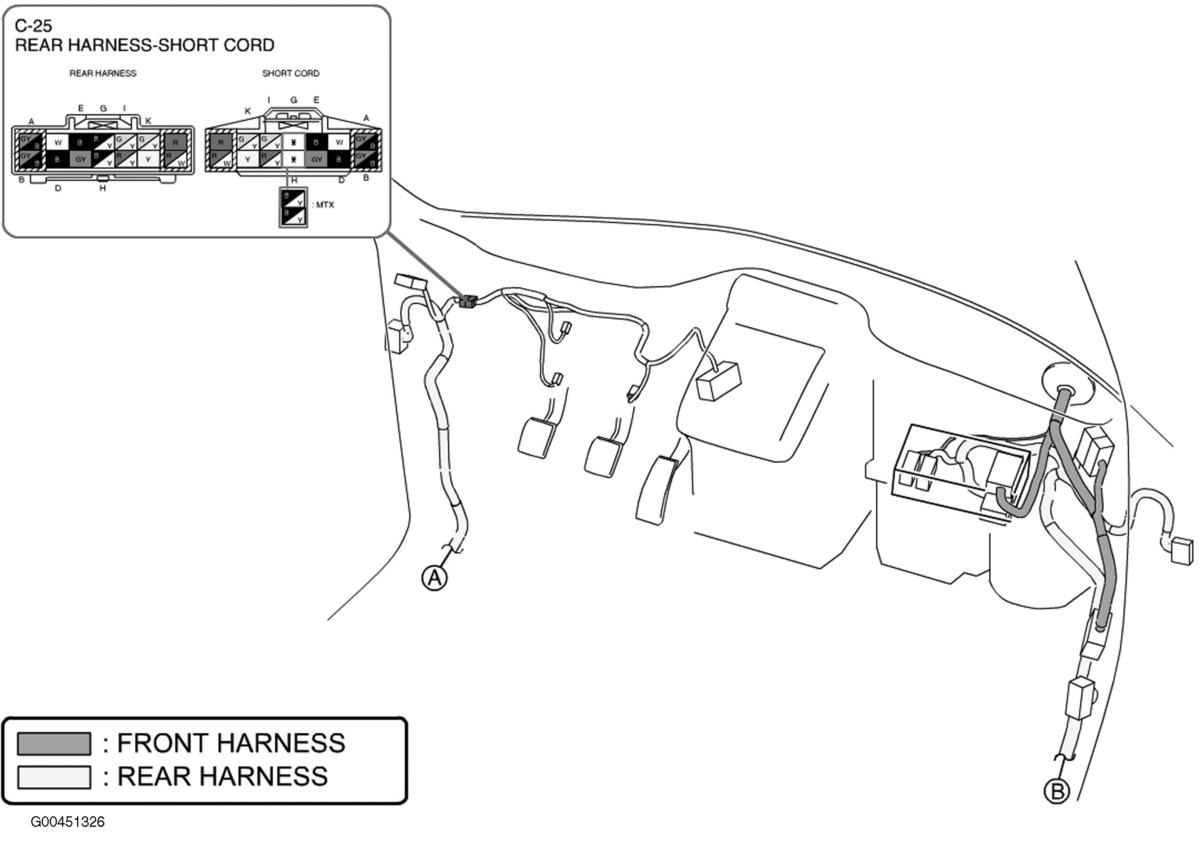

Fig 70: Behind Left End Of Dash

G00451326

Courtesy of MAZDA MOTORS CORP.

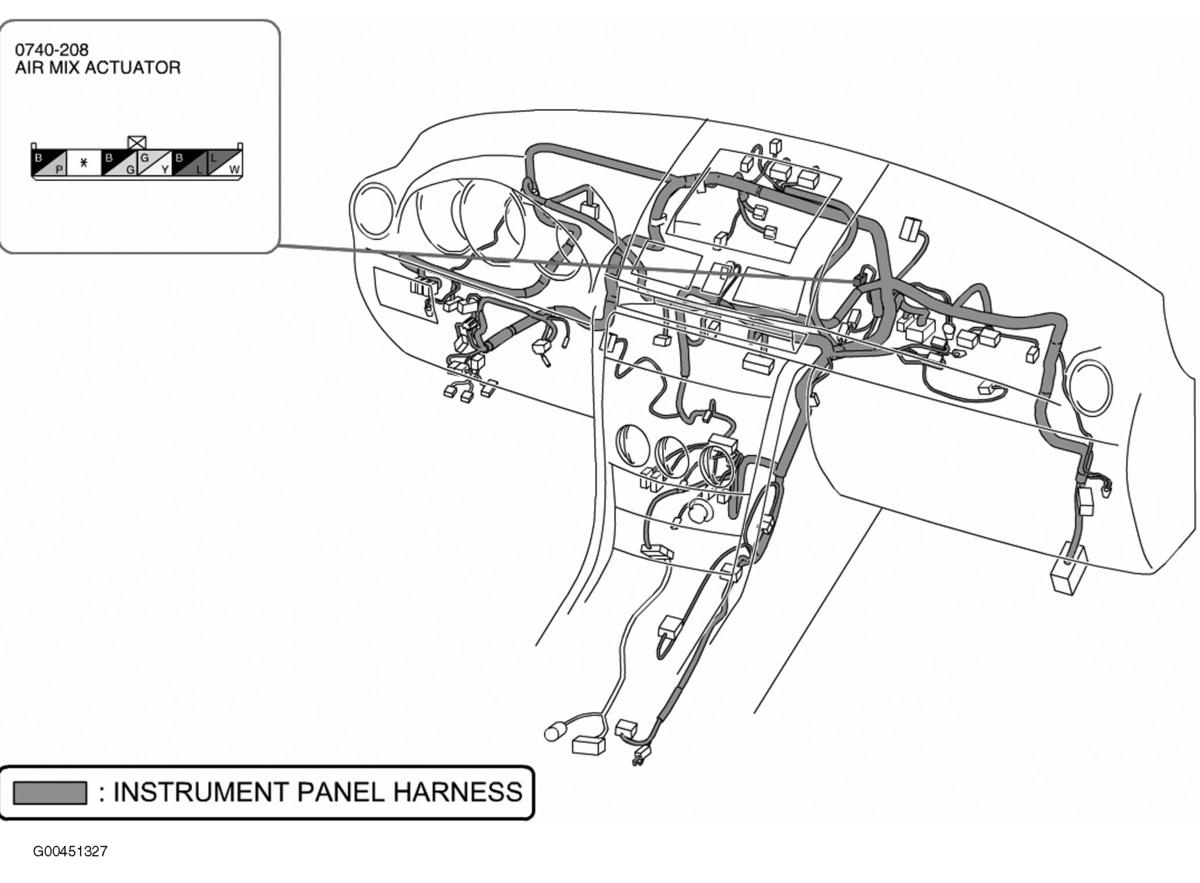

Fig 71: Behind Center Of Dash

G00451327

Courtesy of MAZDA MOTORS CORP.

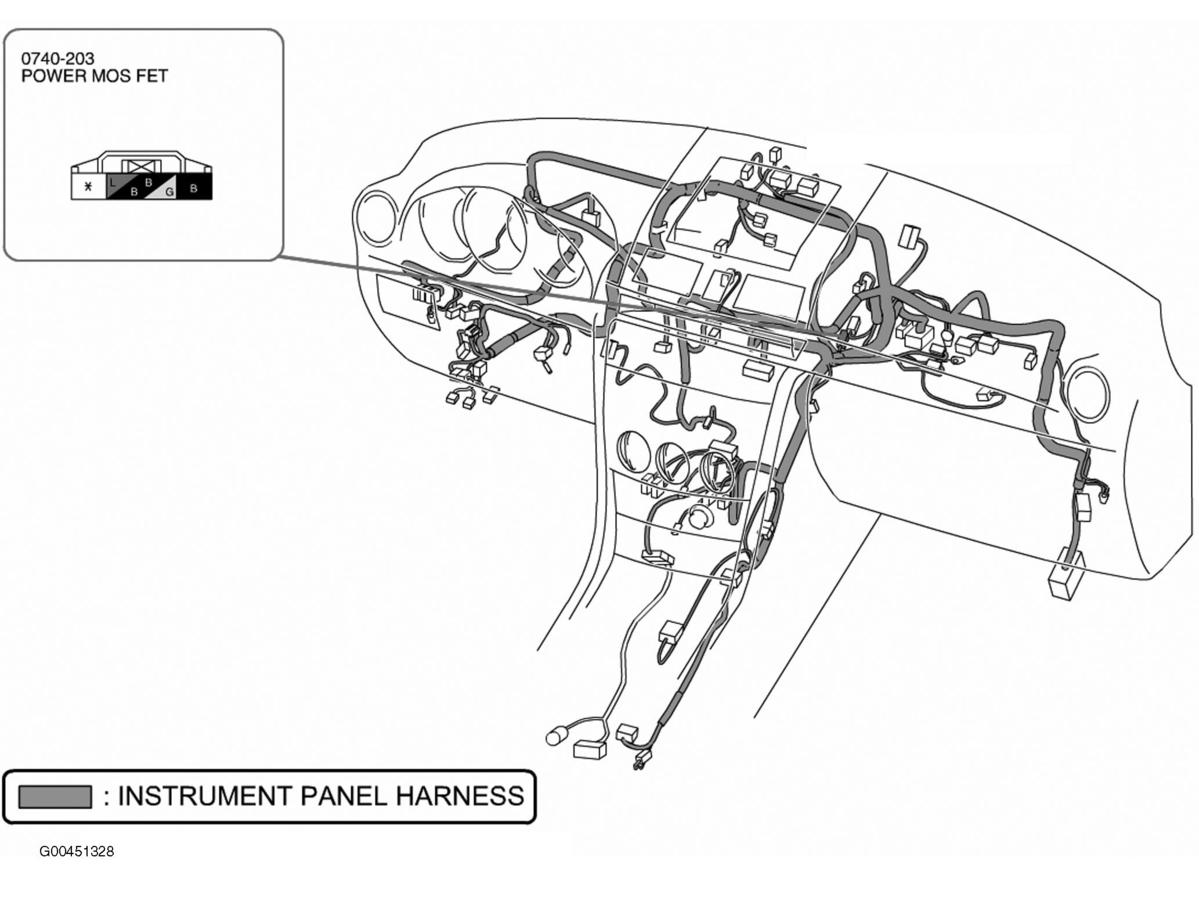

Fig 72: Behind Center Of Dash

G00451328

Courtesy of MAZDA MOTORS CORP.

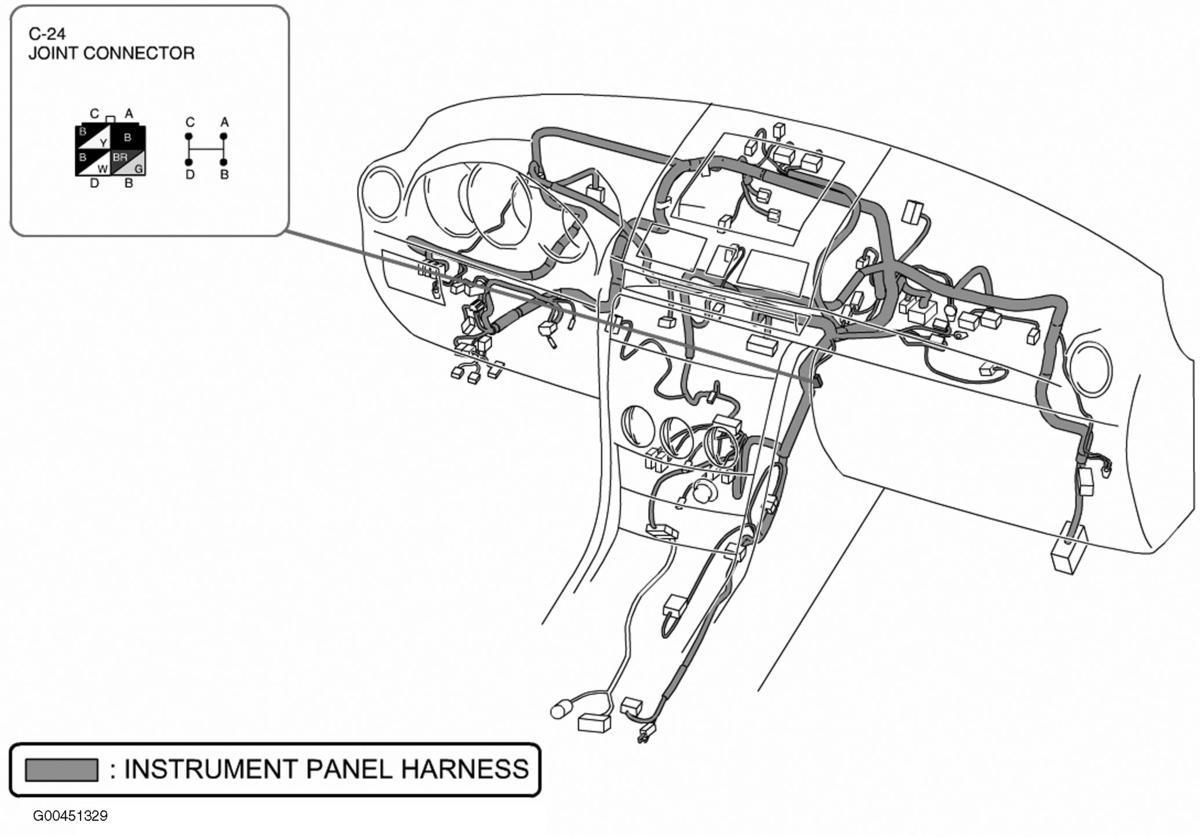

Fig 73: Behind Center Of Dash

G00451329

Courtesy of MAZDA MOTORS CORP.

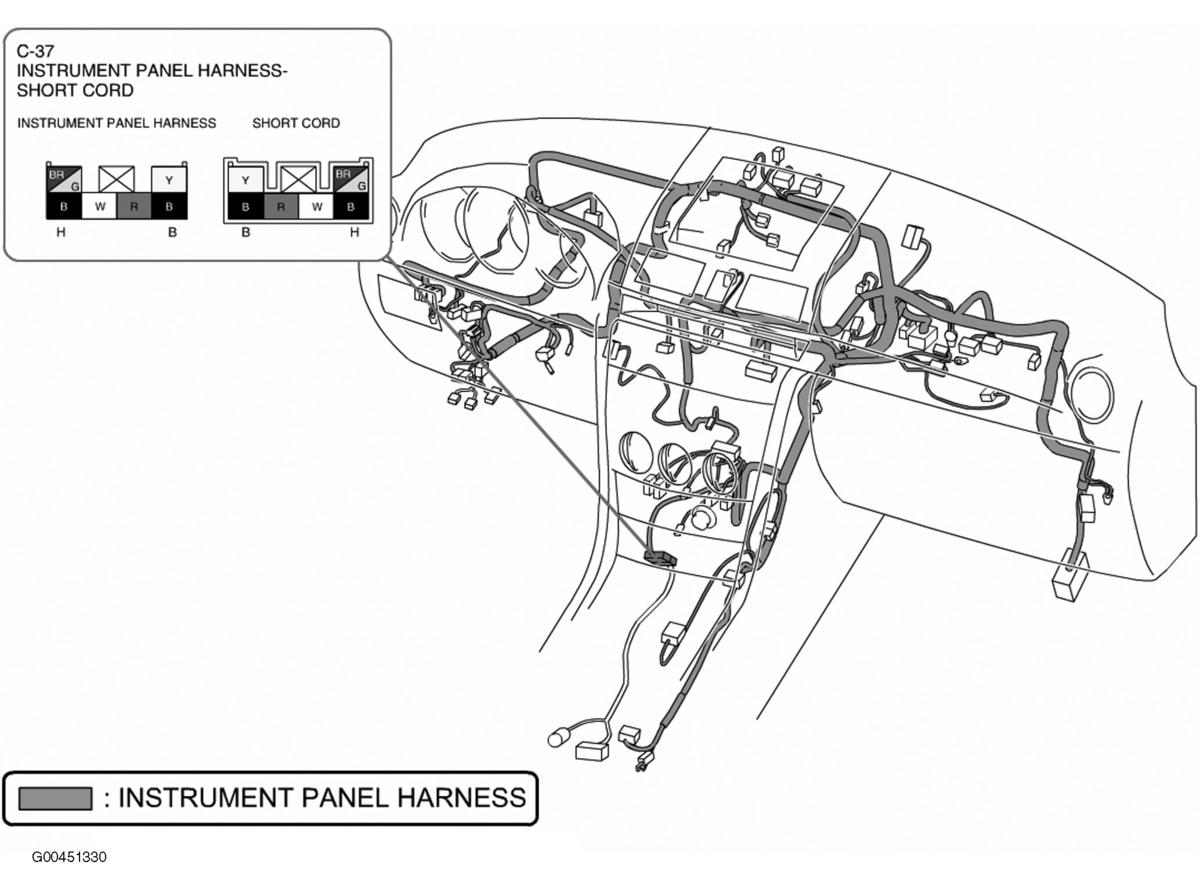

Fig 74: Under Front Of Center Console

G00451330

Courtesy of MAZDA MOTORS CORP.

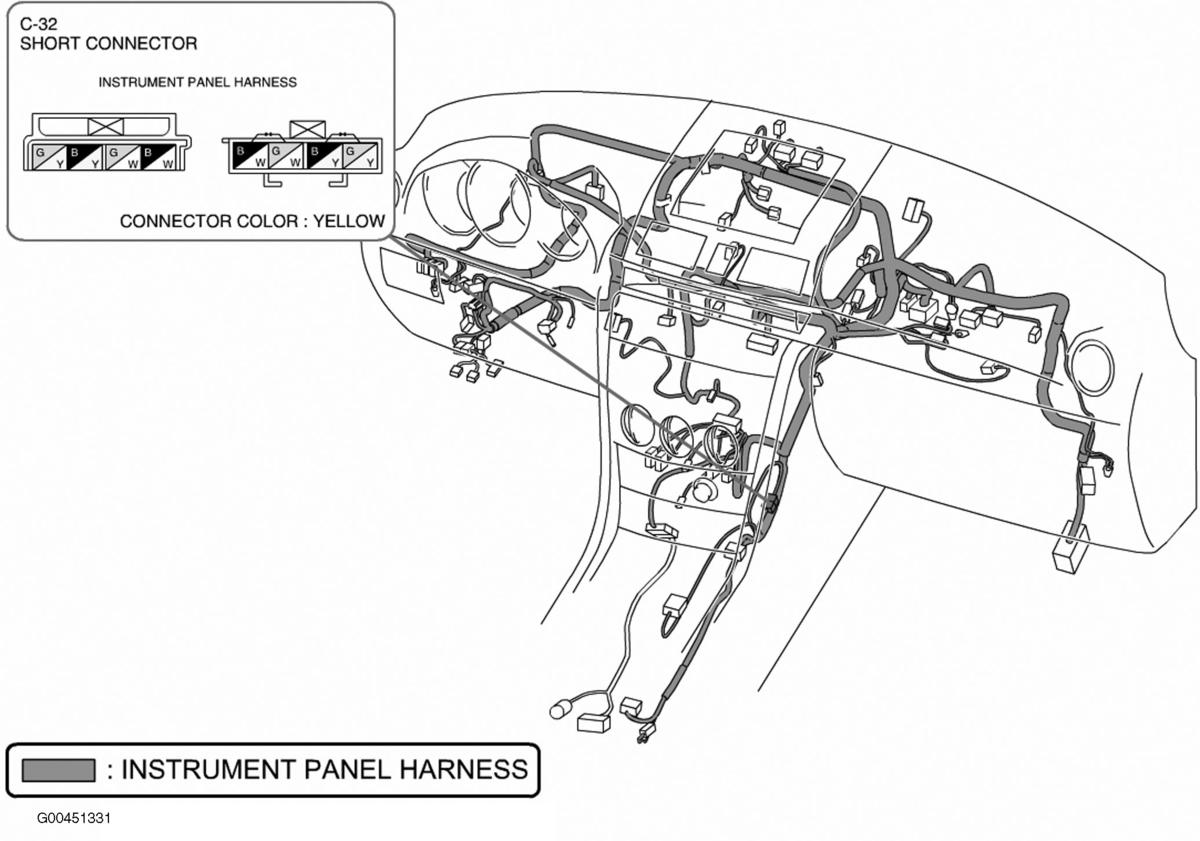

Fig 75: Under Center Of Dash

G00451331

Courtesy of MAZDA MOTORS CORP.

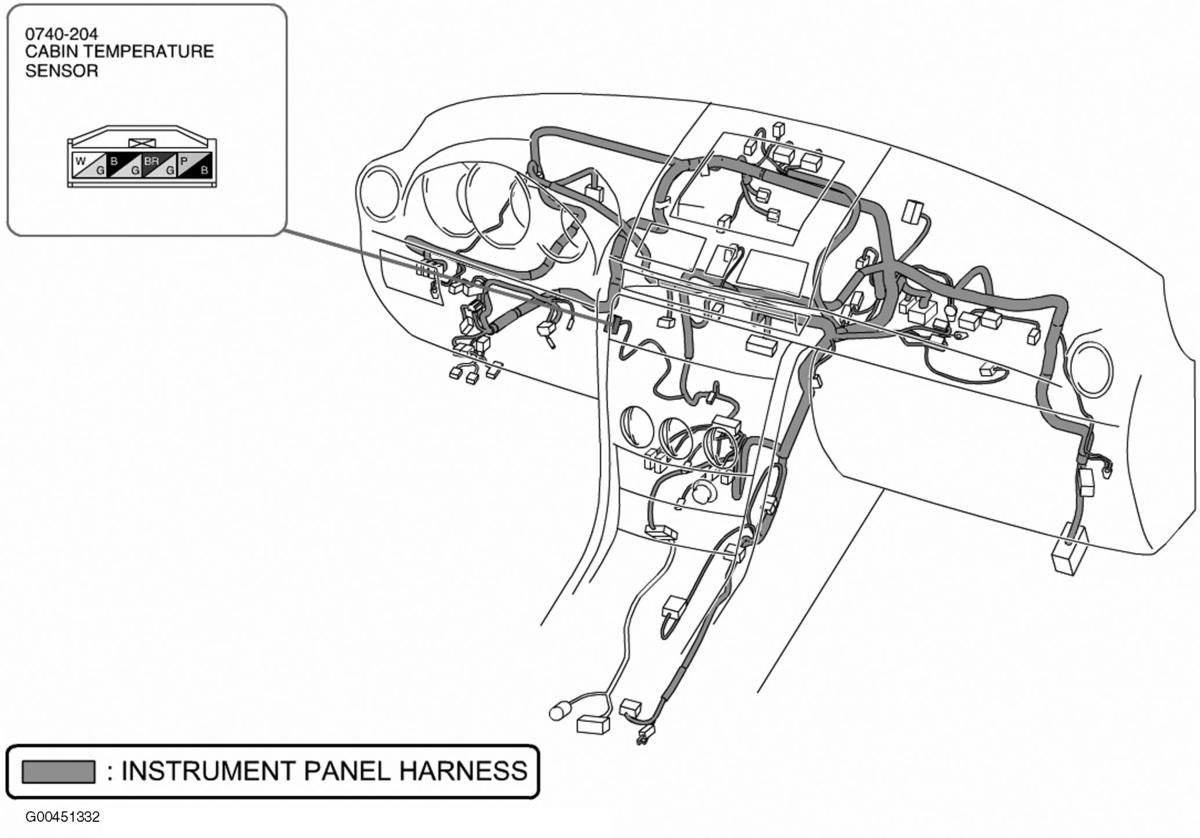

Fig 76: Under Left Side Of Dash

G00451332

Courtesy of MAZDA MOTORS CORP.

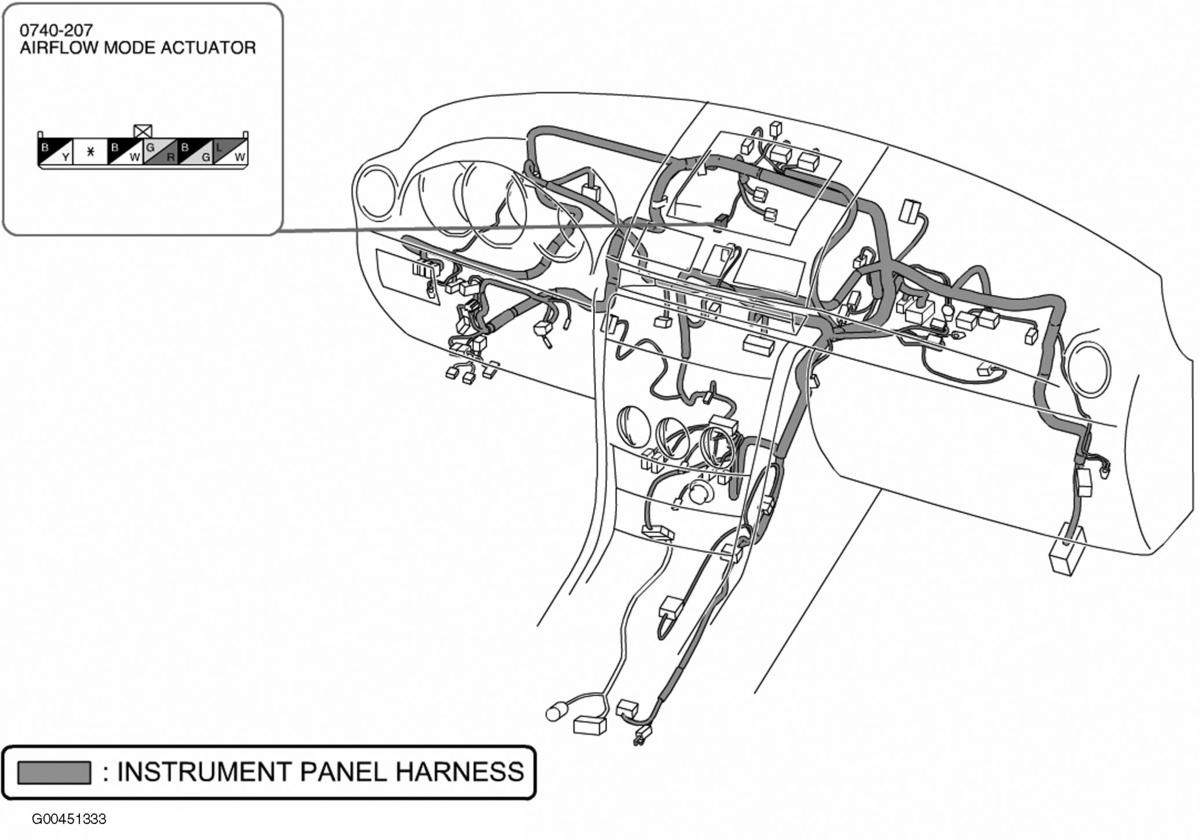

Fig 77: Behind Center Of Dash

G00451333

Courtesy of MAZDA MOTORS CORP.

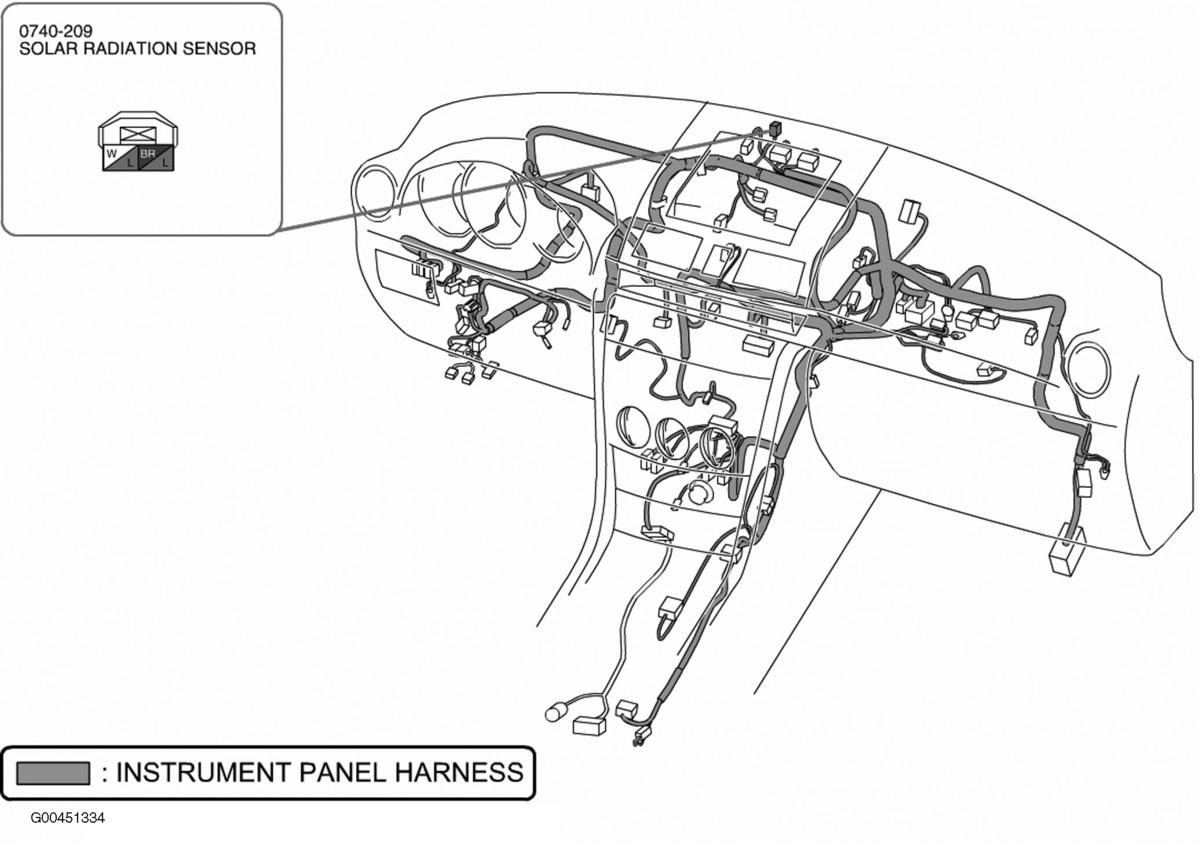

Fig 78: Under Upper Center Of Dash

G00451334

Courtesy of MAZDA MOTORS CORP.

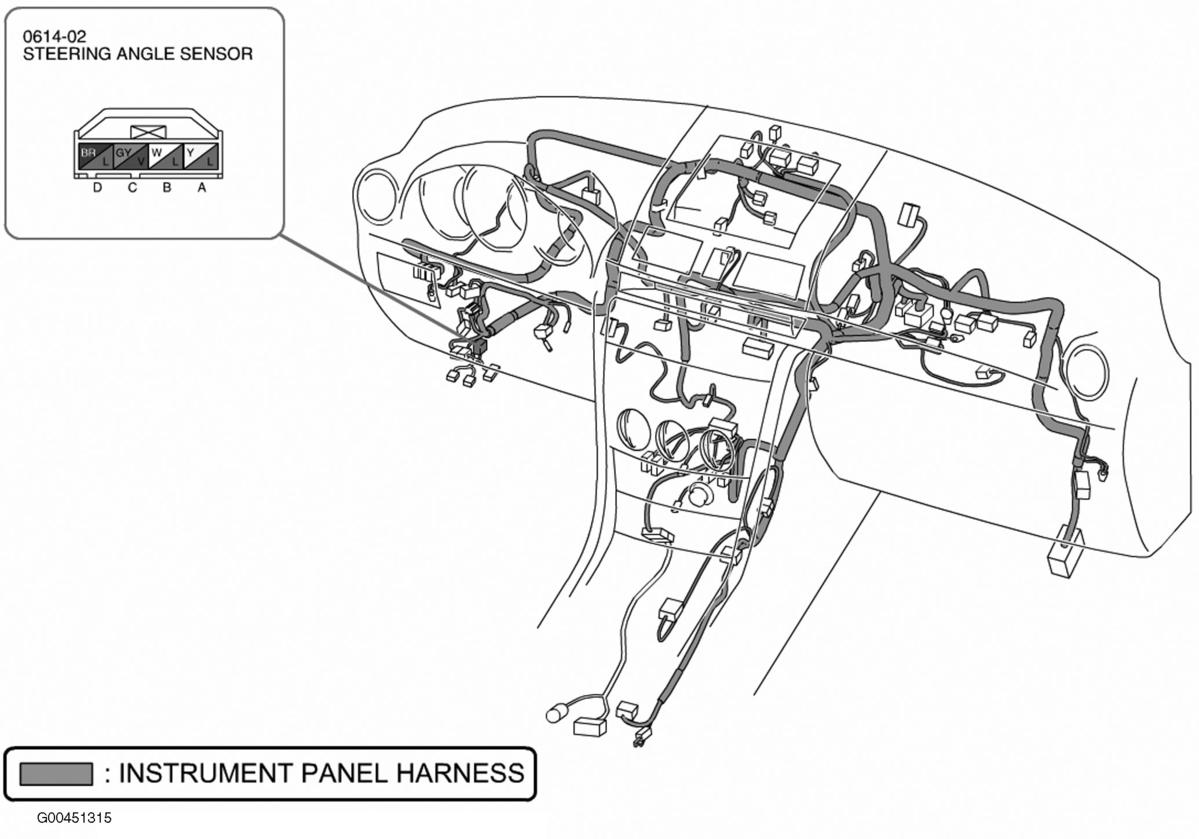

Fig 79: Steering Column

G00451315

Courtesy of MAZDA MOTORS CORP.

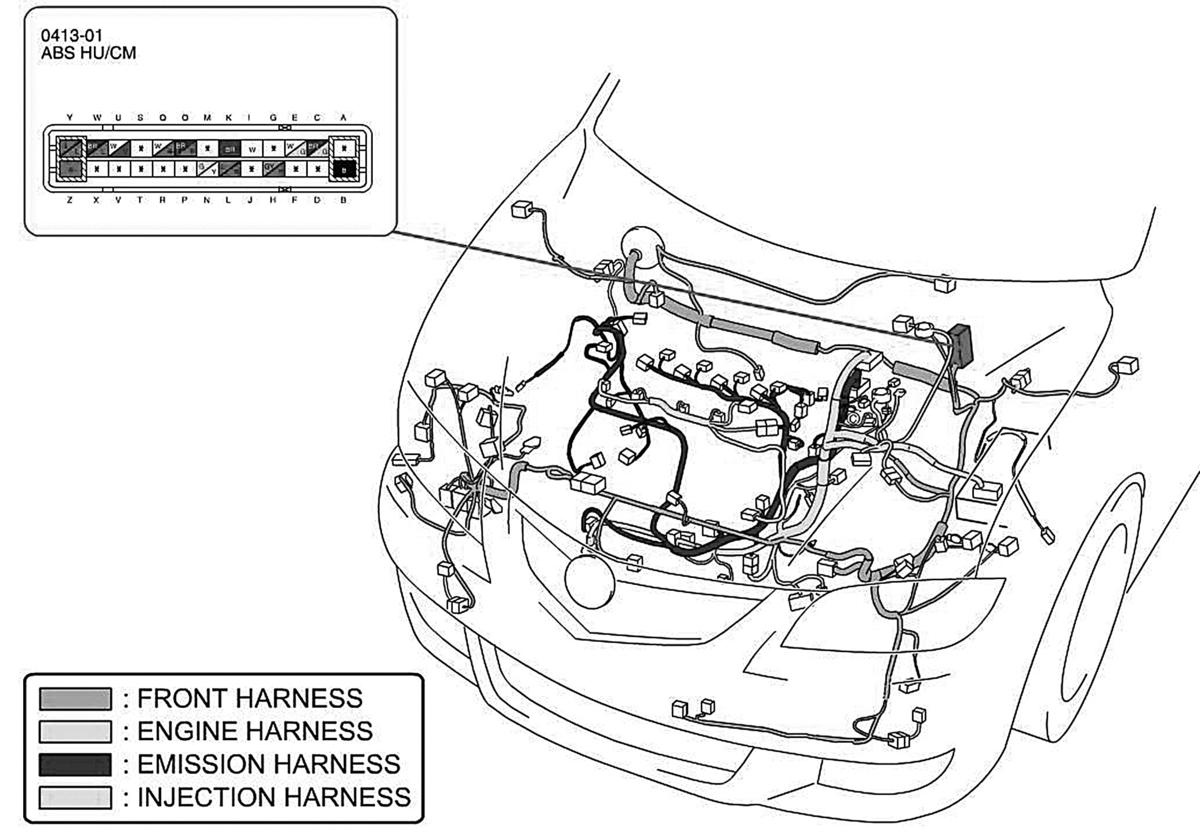

Fig 80: Left Rear Of Engine Compartment

G00470926

Courtesy of MAZDA MOTORS CORP.

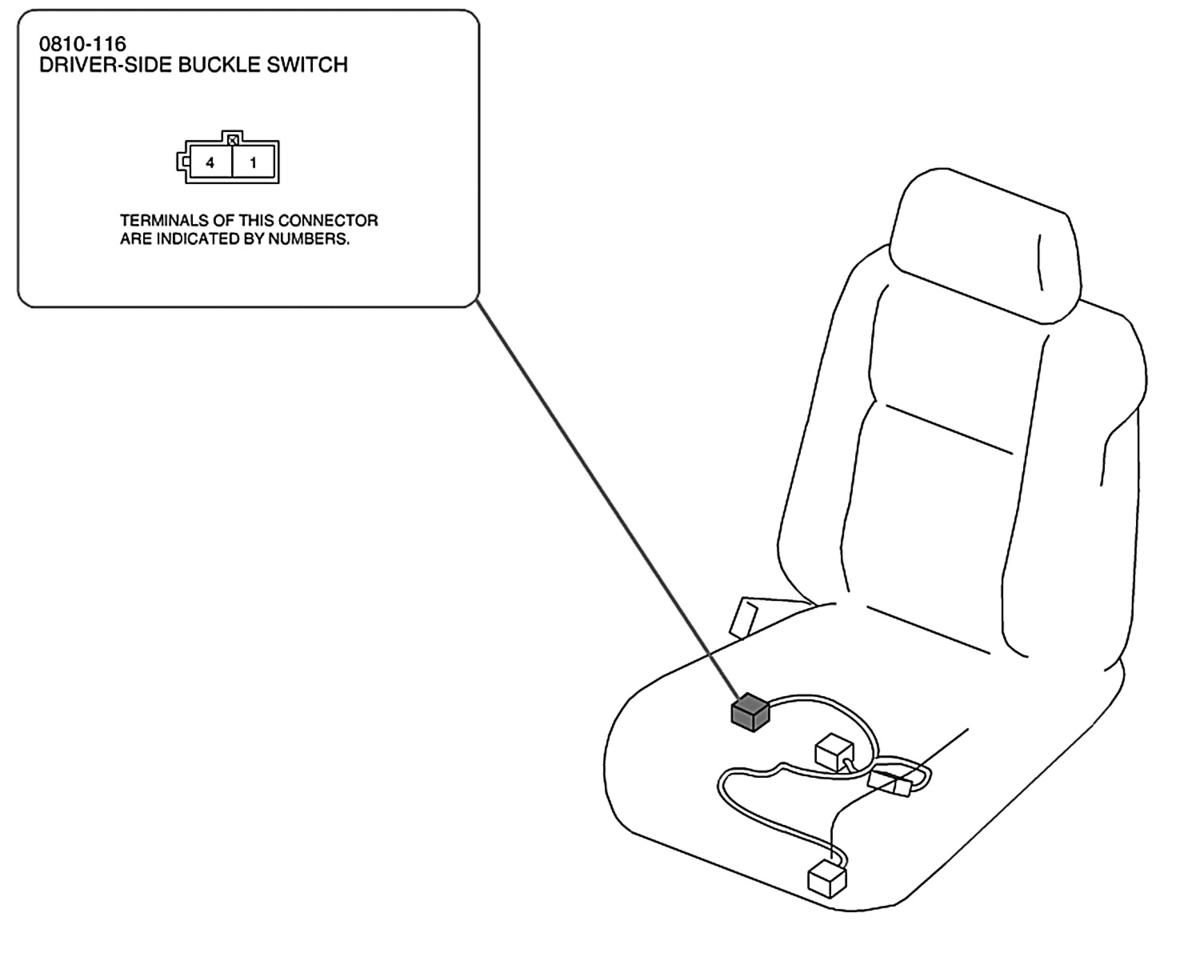

Fig 81: Under Driver's Seat

G00470927

Courtesy of MAZDA MOTORS CORP.

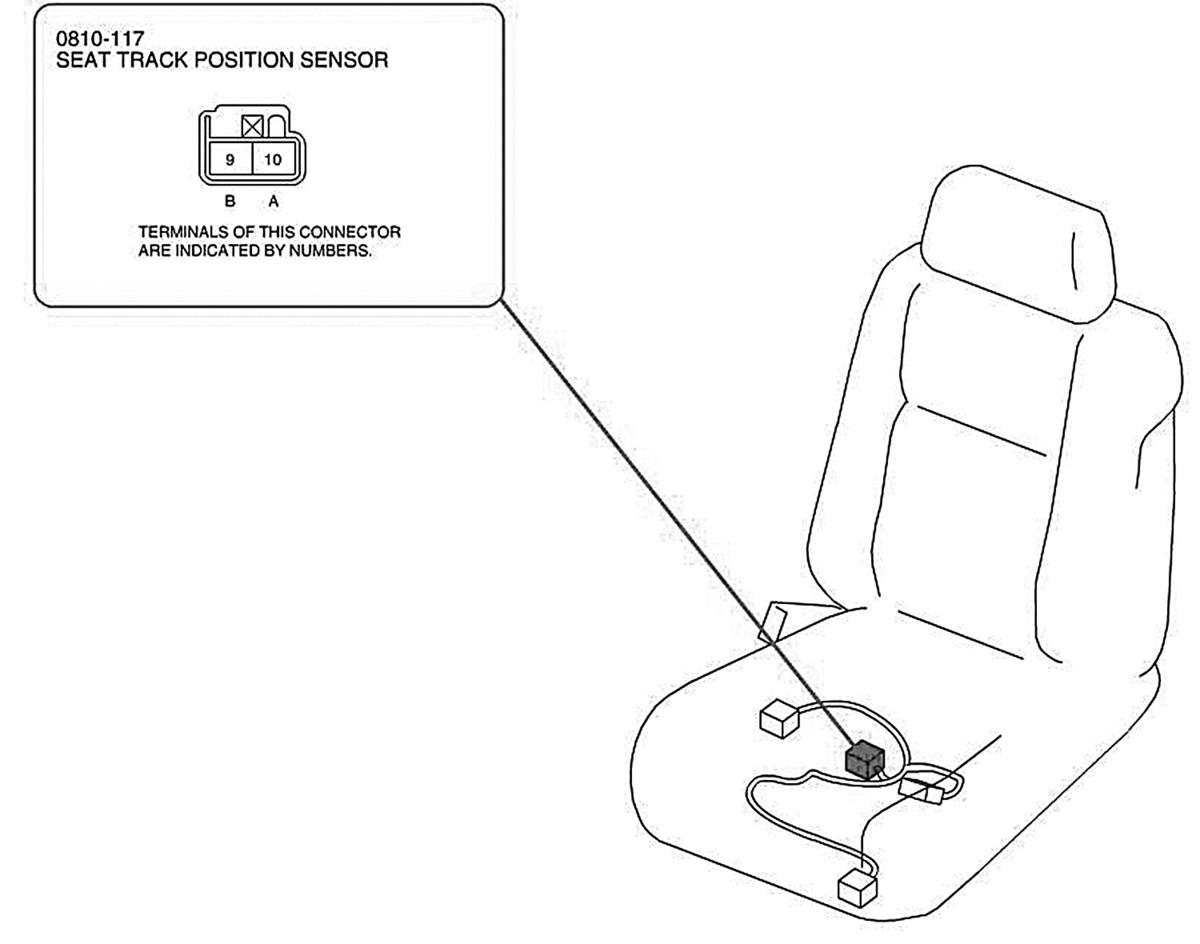

Fig 82: Under Driver's Seat

G00470928

Courtesy of MAZDA MOTORS CORP.

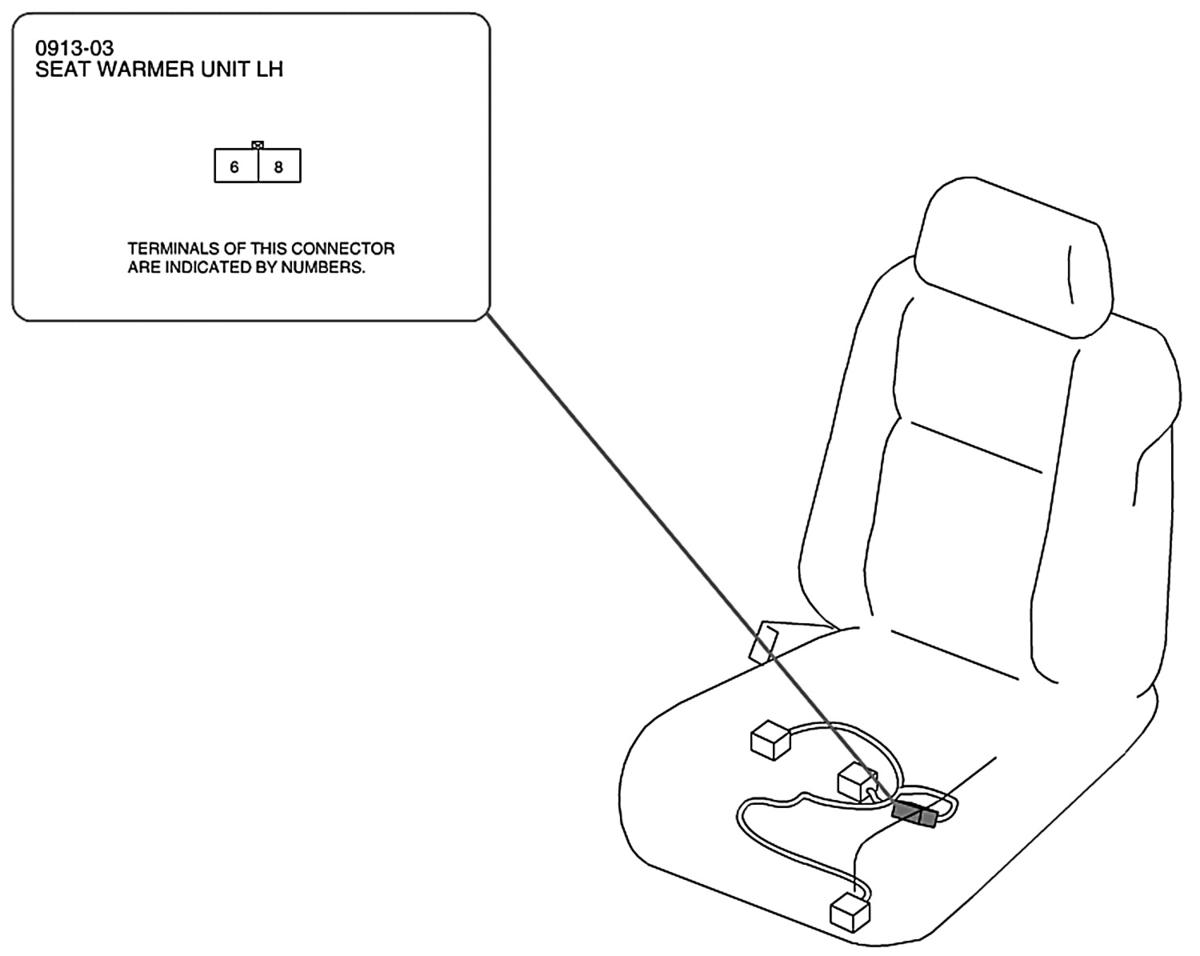

Fig 83: Under Driver's Seat

G00470929

Courtesy of MAZDA MOTORS CORP.

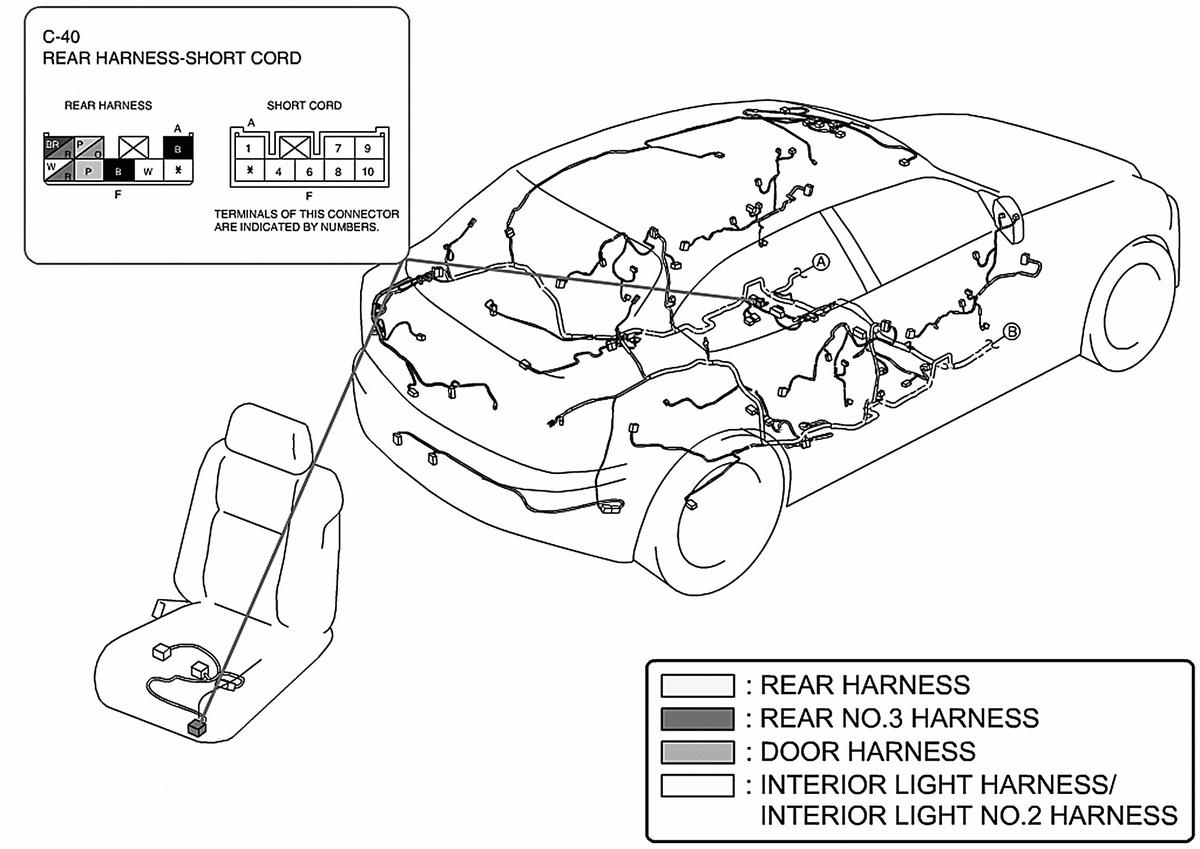

Fig 84: Under Driver's Seat

G00470930

Courtesy of MAZDA MOTORS CORP.

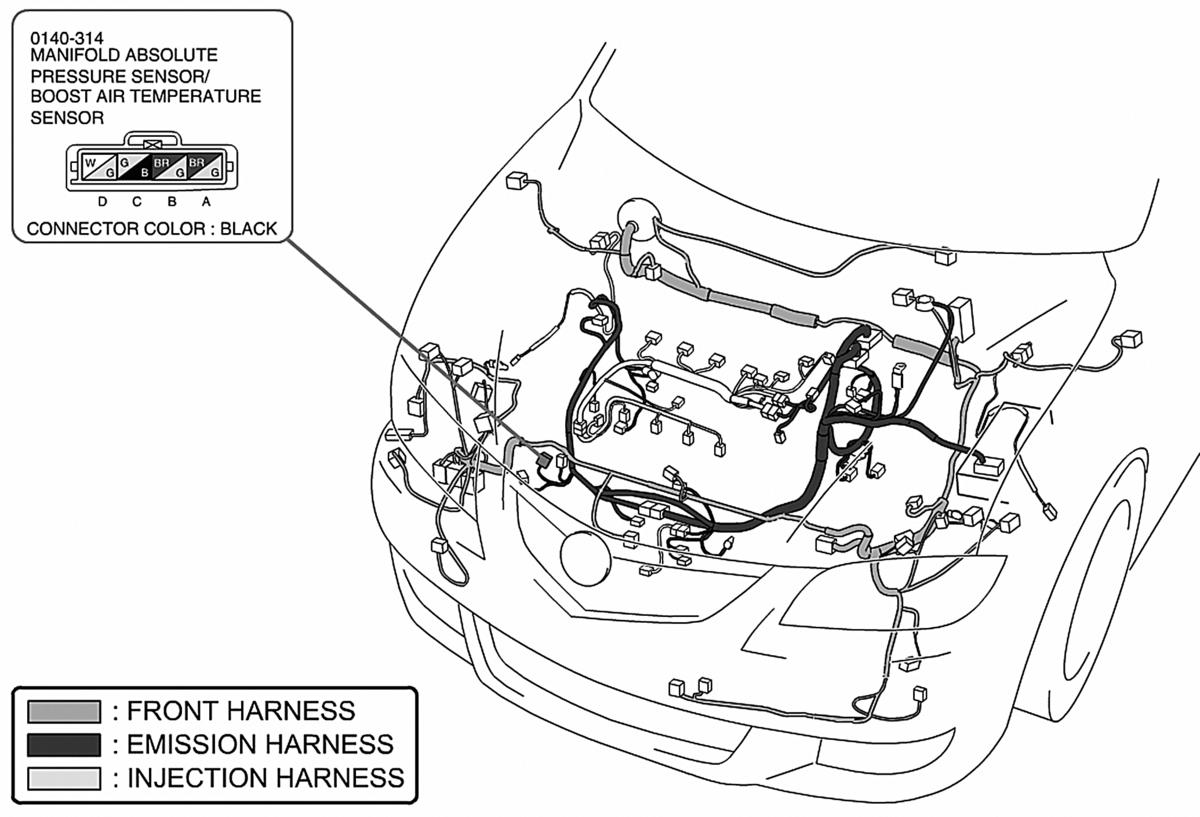

Fig 85: Engine Compartment (L3 With Turbo)

G00470931

Courtesy of MAZDA MOTORS CORP.

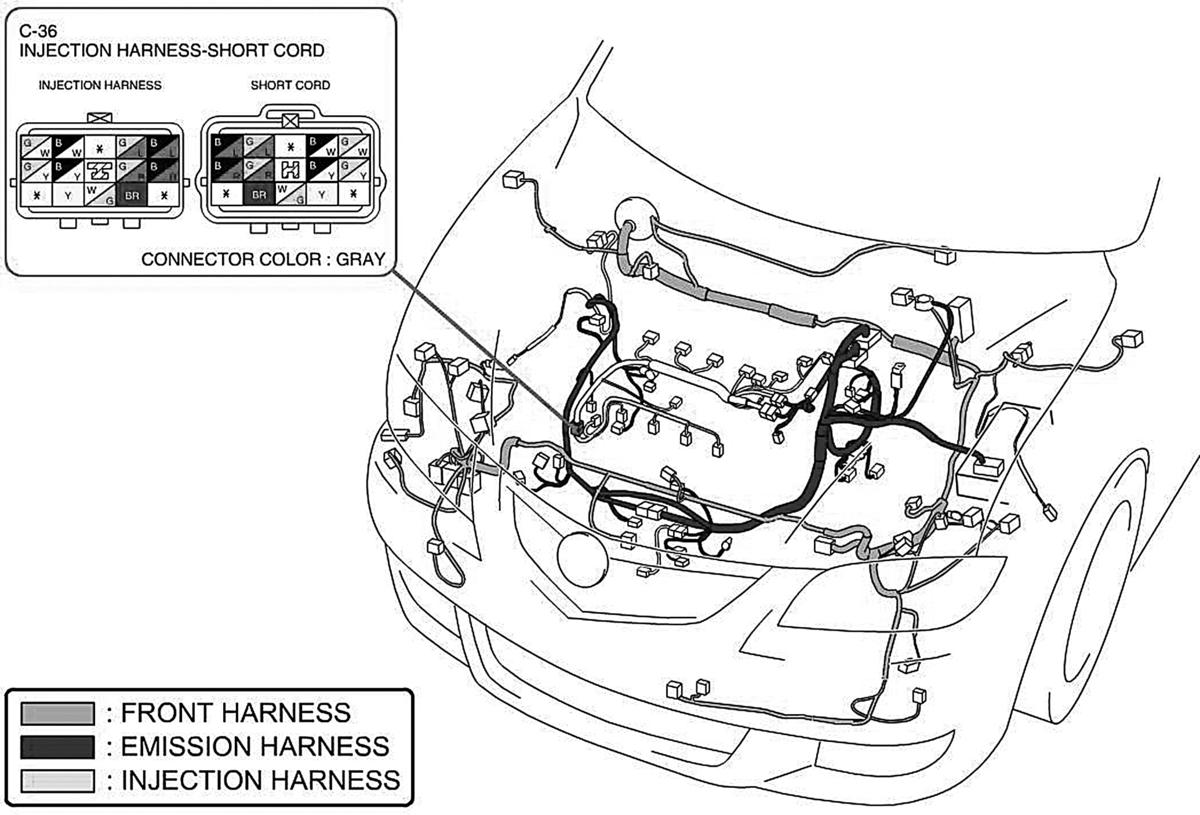

Fig 86: Engine Compartment (L3 With Turbo)

G00470932

Courtesy of MAZDA MOTORS CORP.

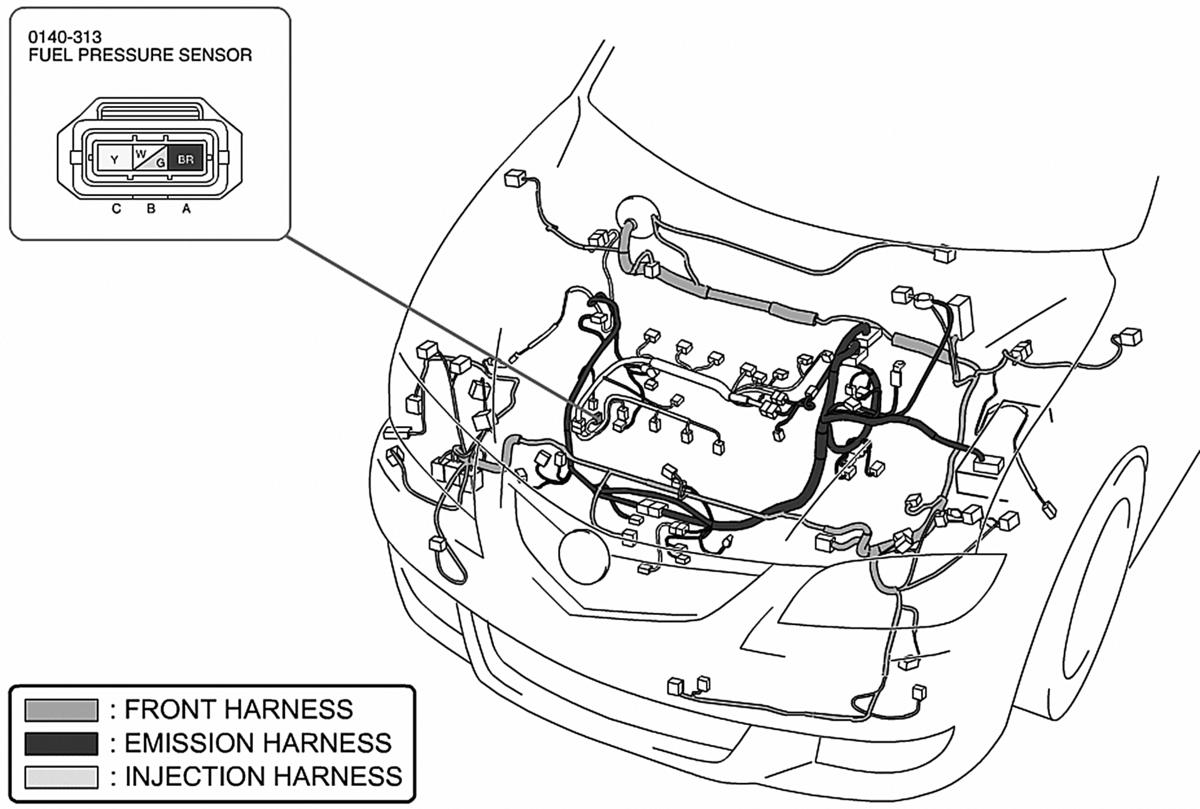

Fig 87: Engine Compartment (L3 With Turbo)

G00470933

Courtesy of MAZDA MOTORS CORP.

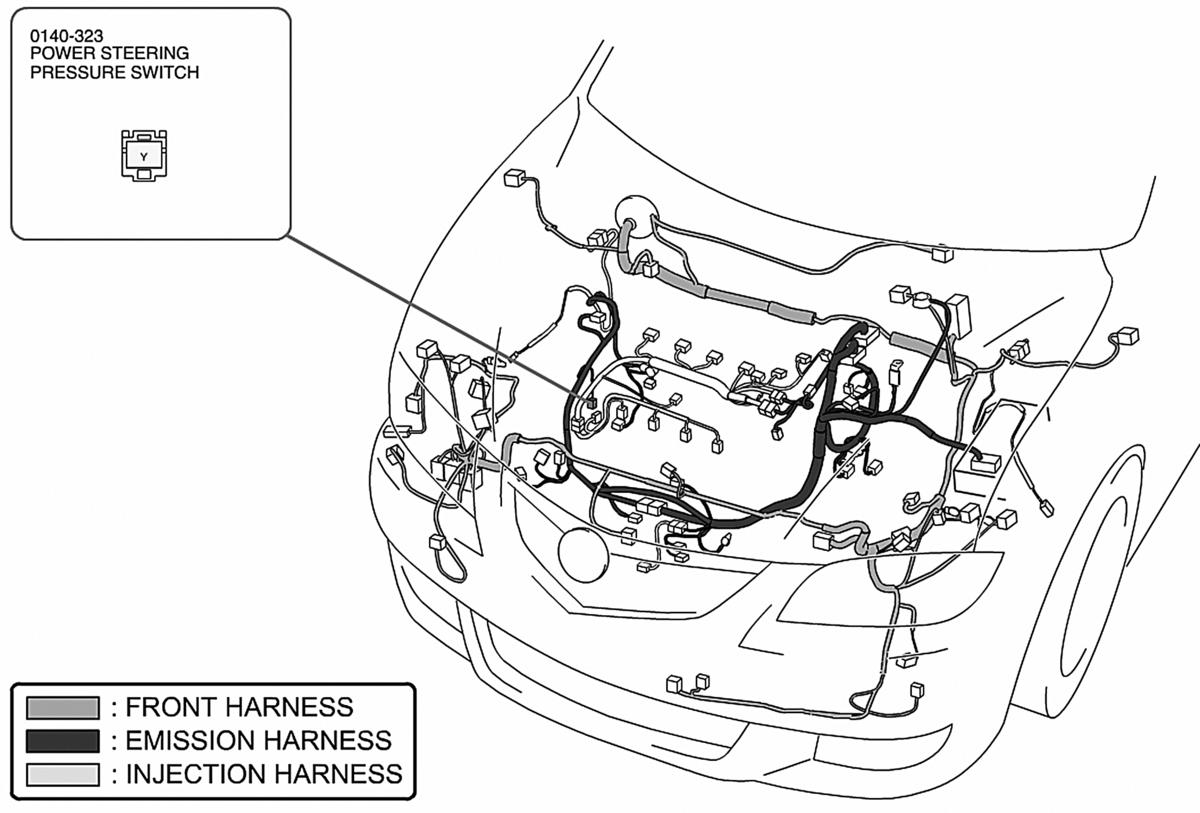

Fig 88: Engine Compartment (L3 With Turbo)

G00470934

Courtesy of MAZDA MOTORS CORP.

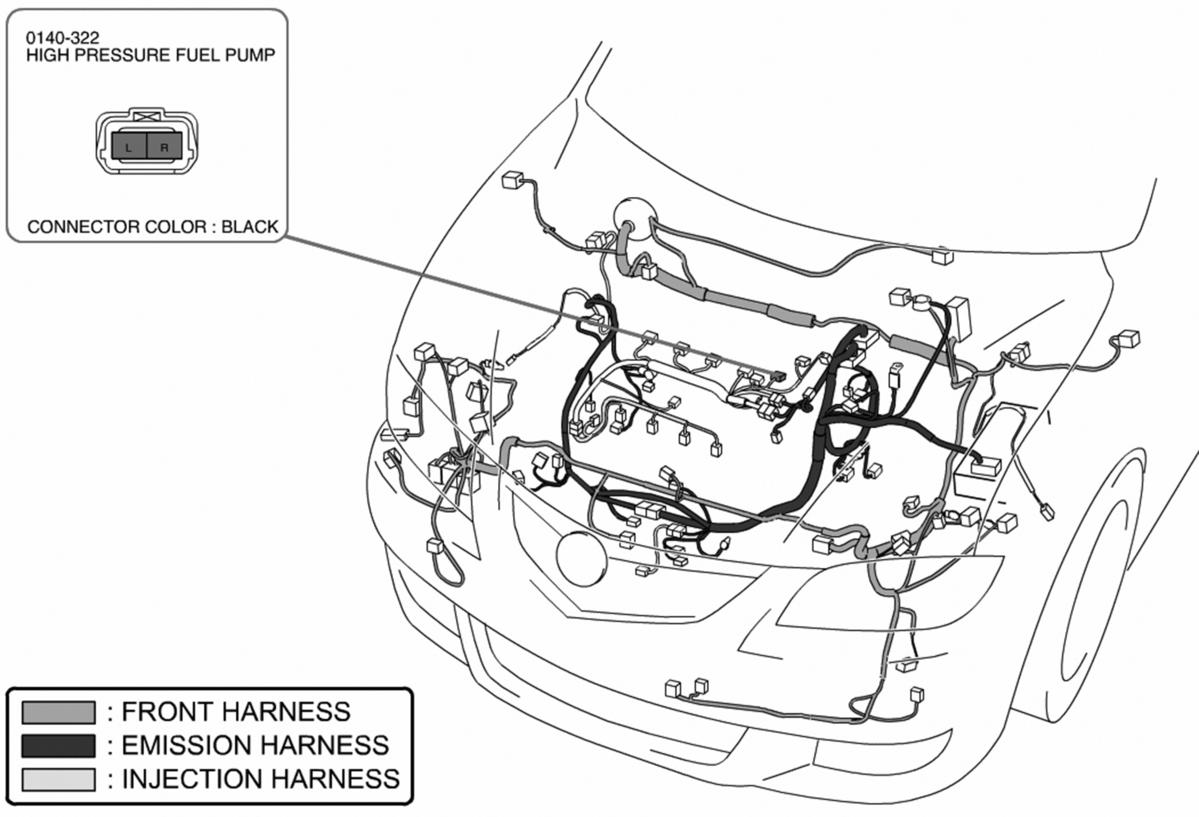

Fig 89: Engine Compartment (L3 With Turbo)

G00470935

Courtesy of MAZDA MOTORS CORP.

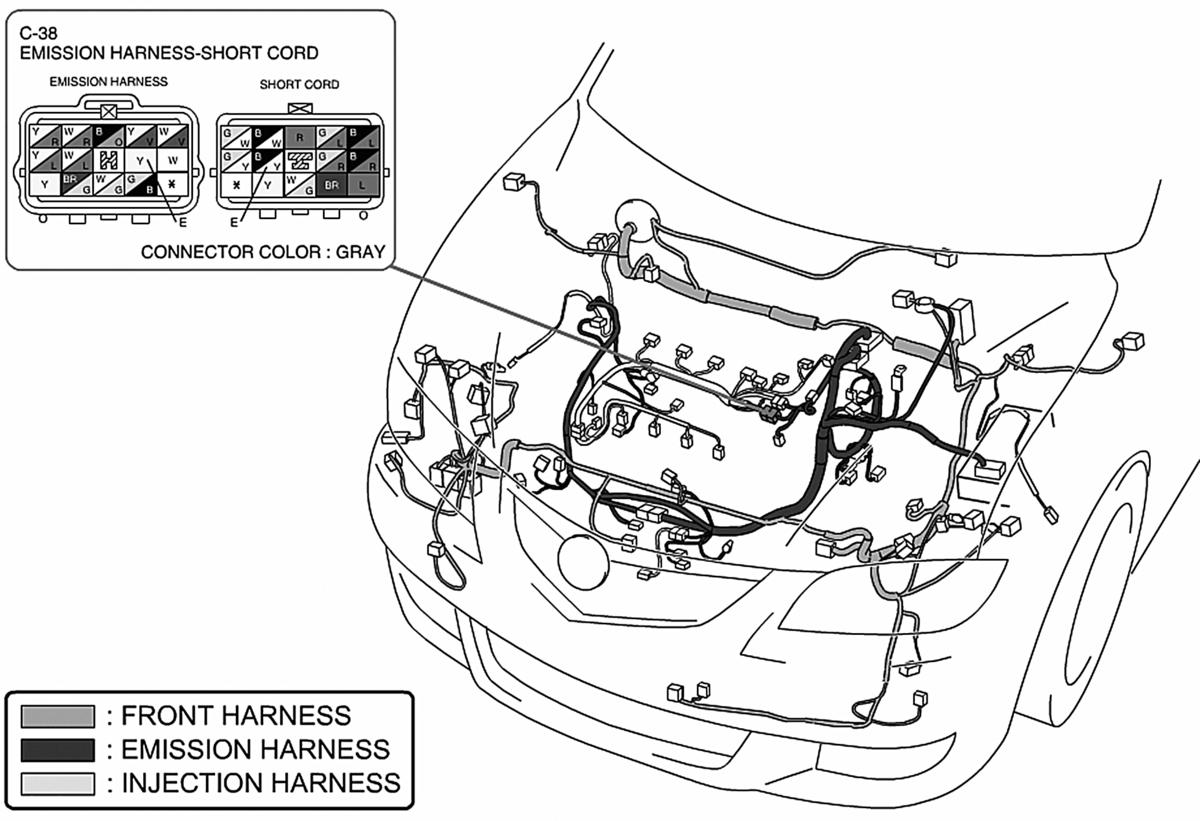

Fig 90: Engine Compartment (L3 With Turbo)

G00470936

Courtesy of MAZDA MOTORS CORP.

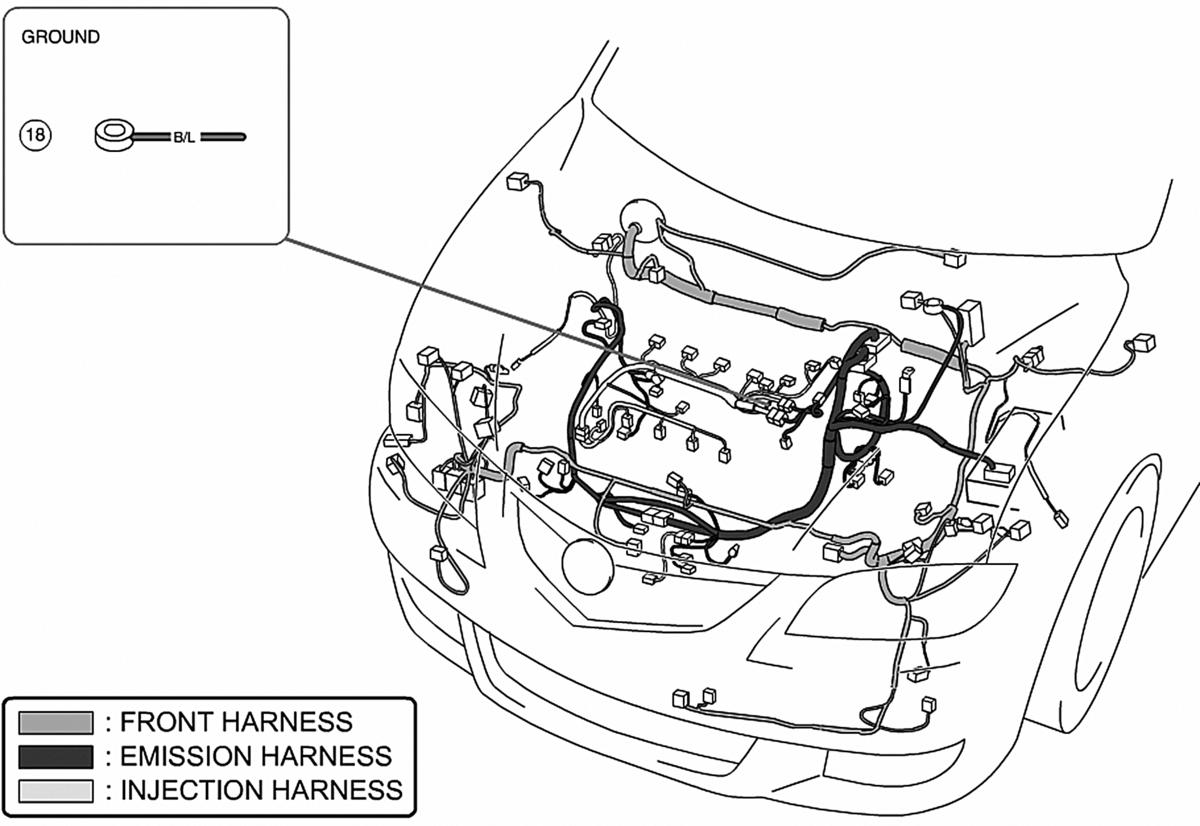

Fig 91: Engine Compartment (L3 With Turbo)

G00470937

Courtesy of MAZDA MOTORS CORP.

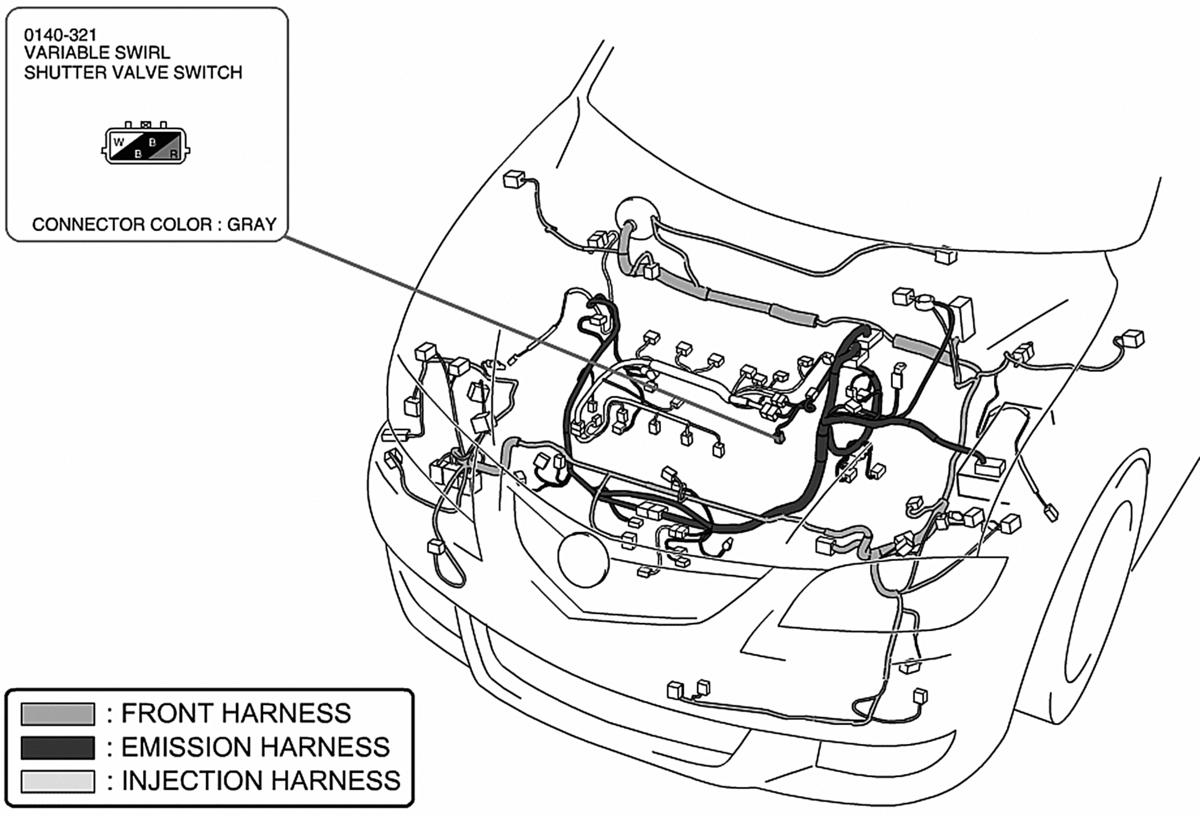

Fig 92: Engine Compartment (L3 With Turbo)

G00470938

Courtesy of MAZDA MOTORS CORP.

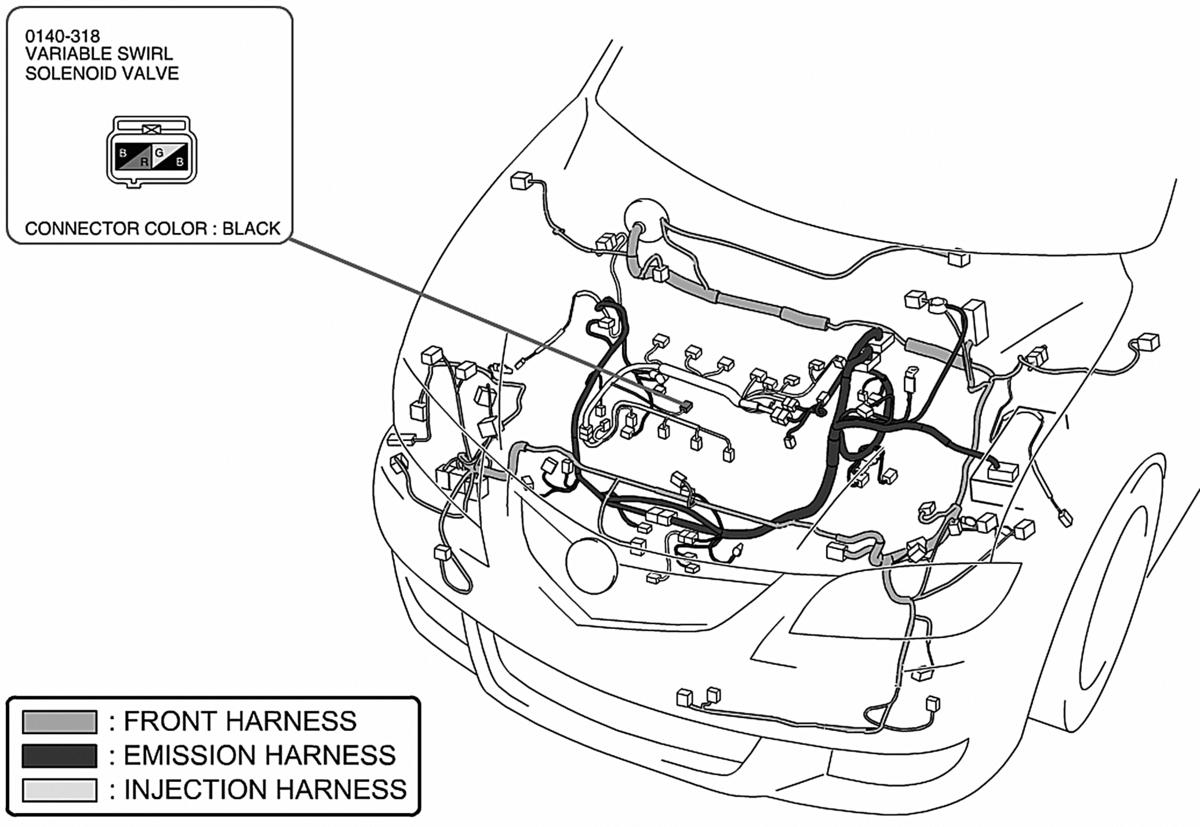

Fig 93: Engine Compartment (L3 With Turbo)

G00470939

Courtesy of MAZDA MOTORS CORP.

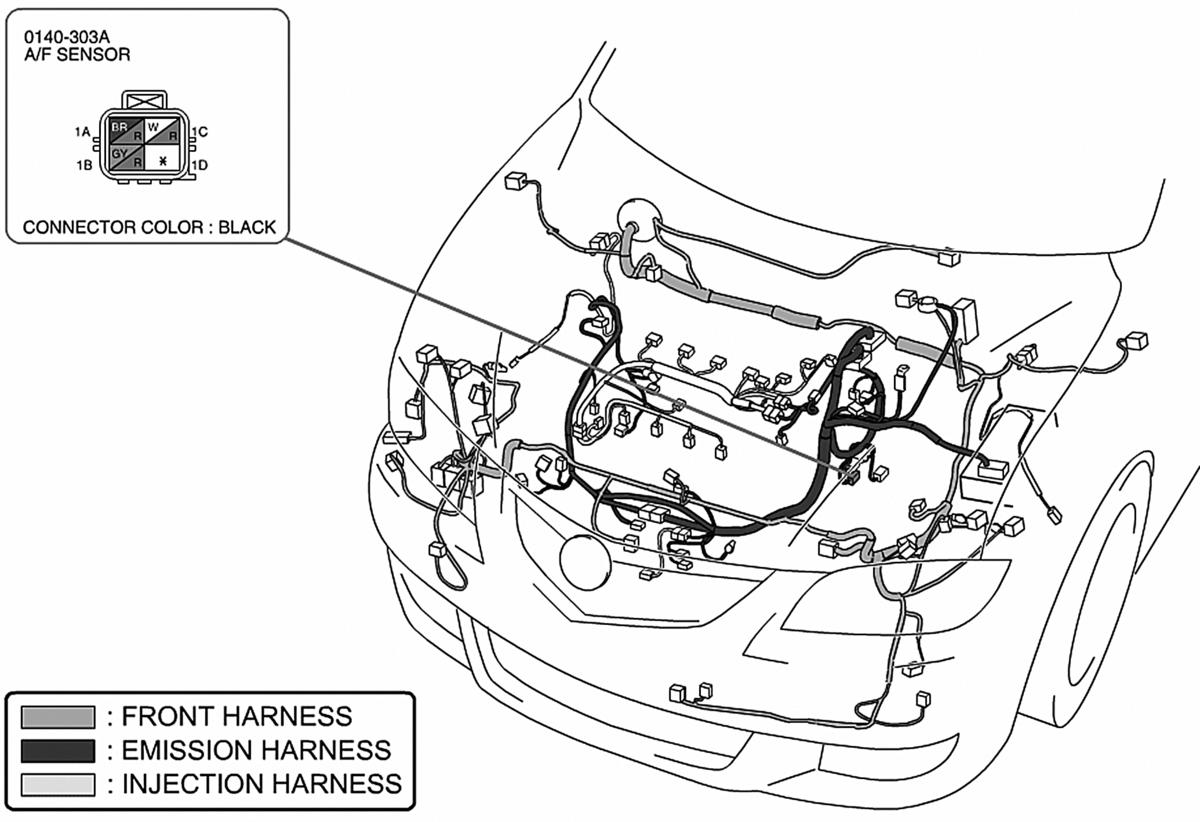

Fig 94: Engine Compartment (L3 With Turbo)

G00470940

Courtesy of MAZDA MOTORS CORP.

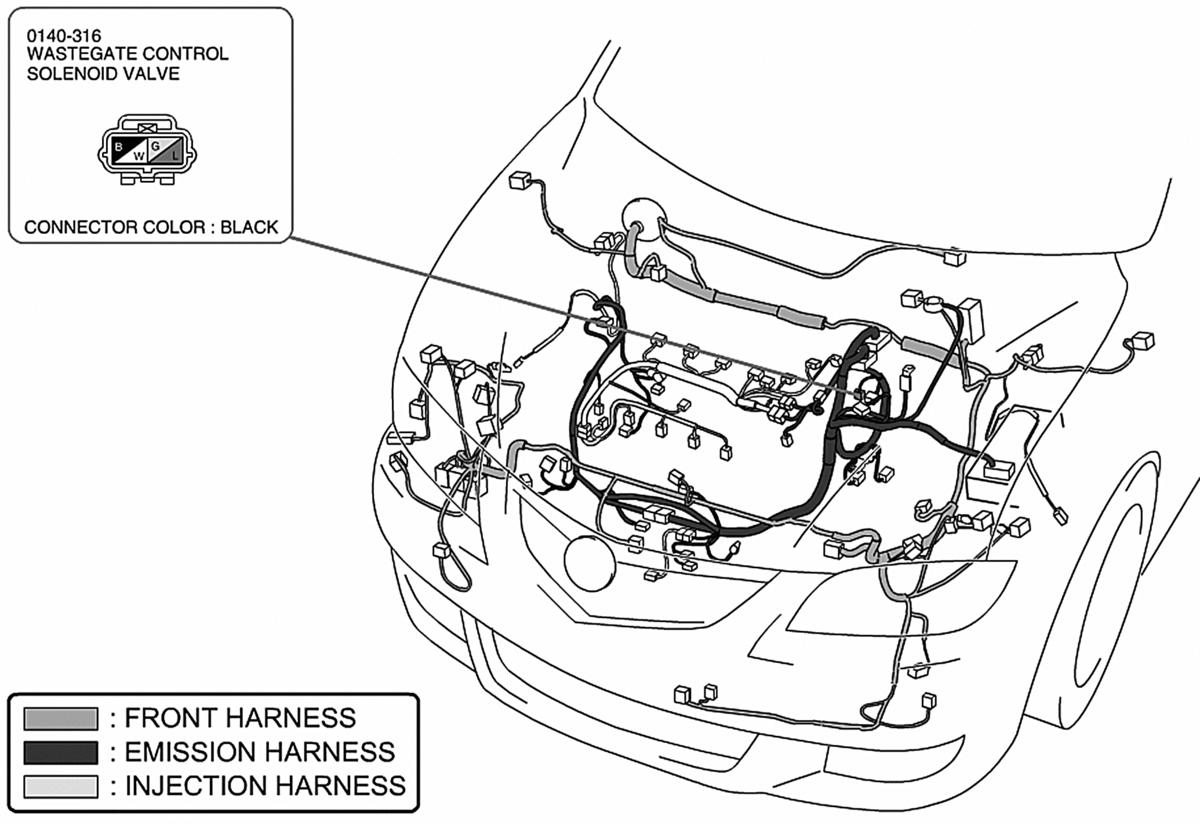

Fig 95: Engine Compartment (L3 With Turbo)

G00470941

Courtesy of MAZDA MOTORS CORP.

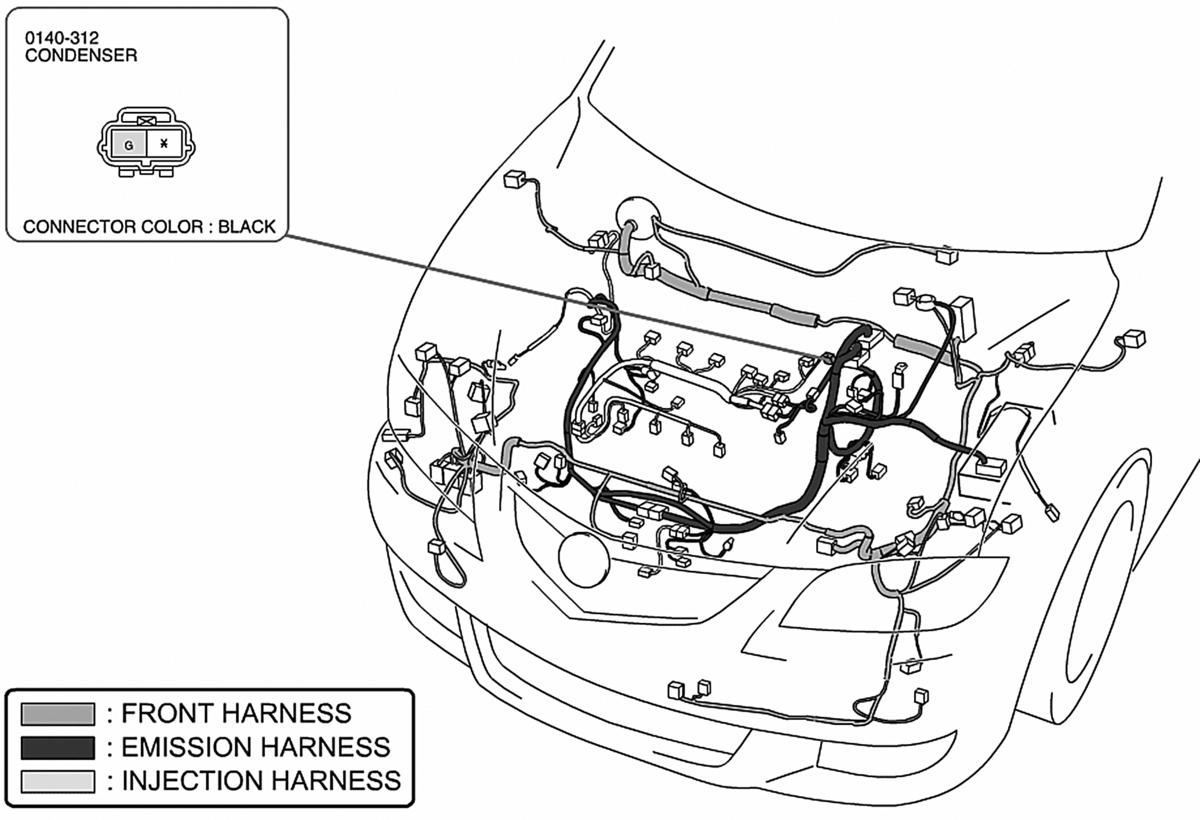

Fig 96: Engine Compartment (L3 With Turbo)

G00470942

Courtesy of MAZDA MOTORS CORP.

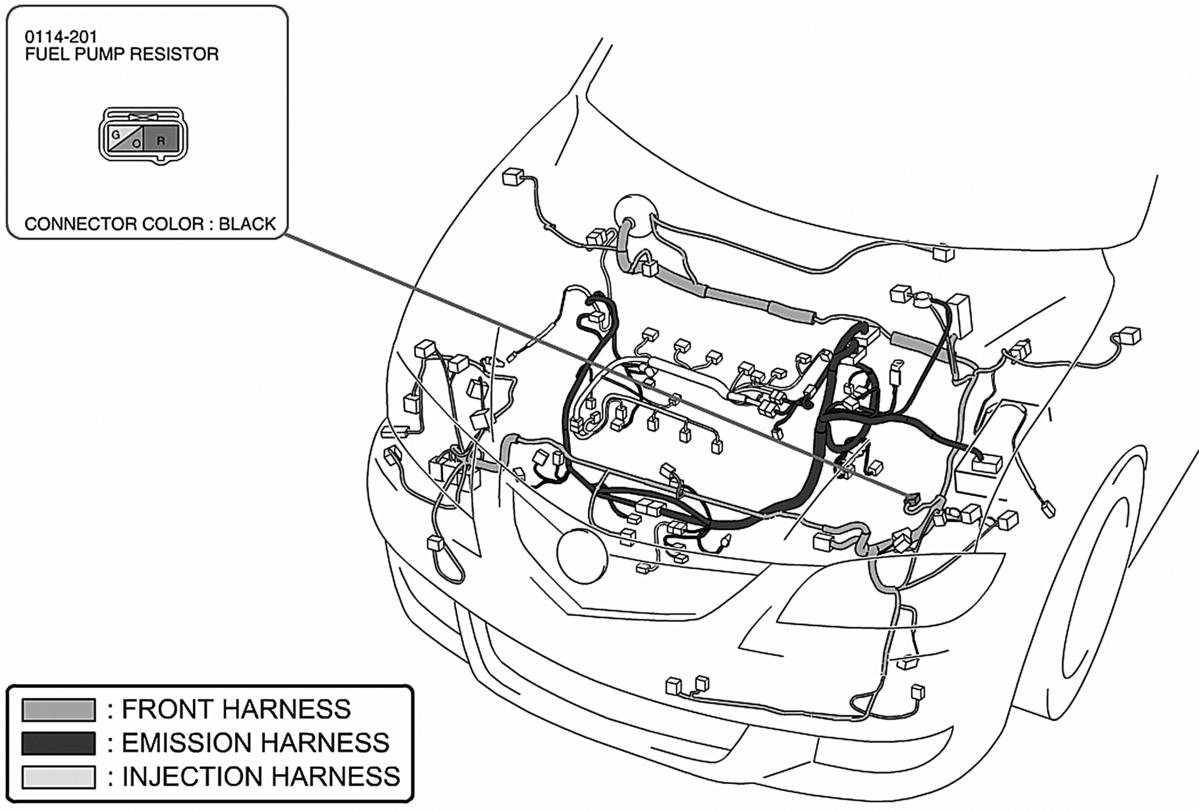

Fig 97: Engine Compartment (L3 With Turbo)

G00470943

Courtesy of MAZDA MOTORS CORP.
