Engine Control System (LF, L3)
›
Control System Diagram [LF, L3]
›
Except for California Emission Regulation Applicable Model
Except for California Emission Regulation Applicable Model

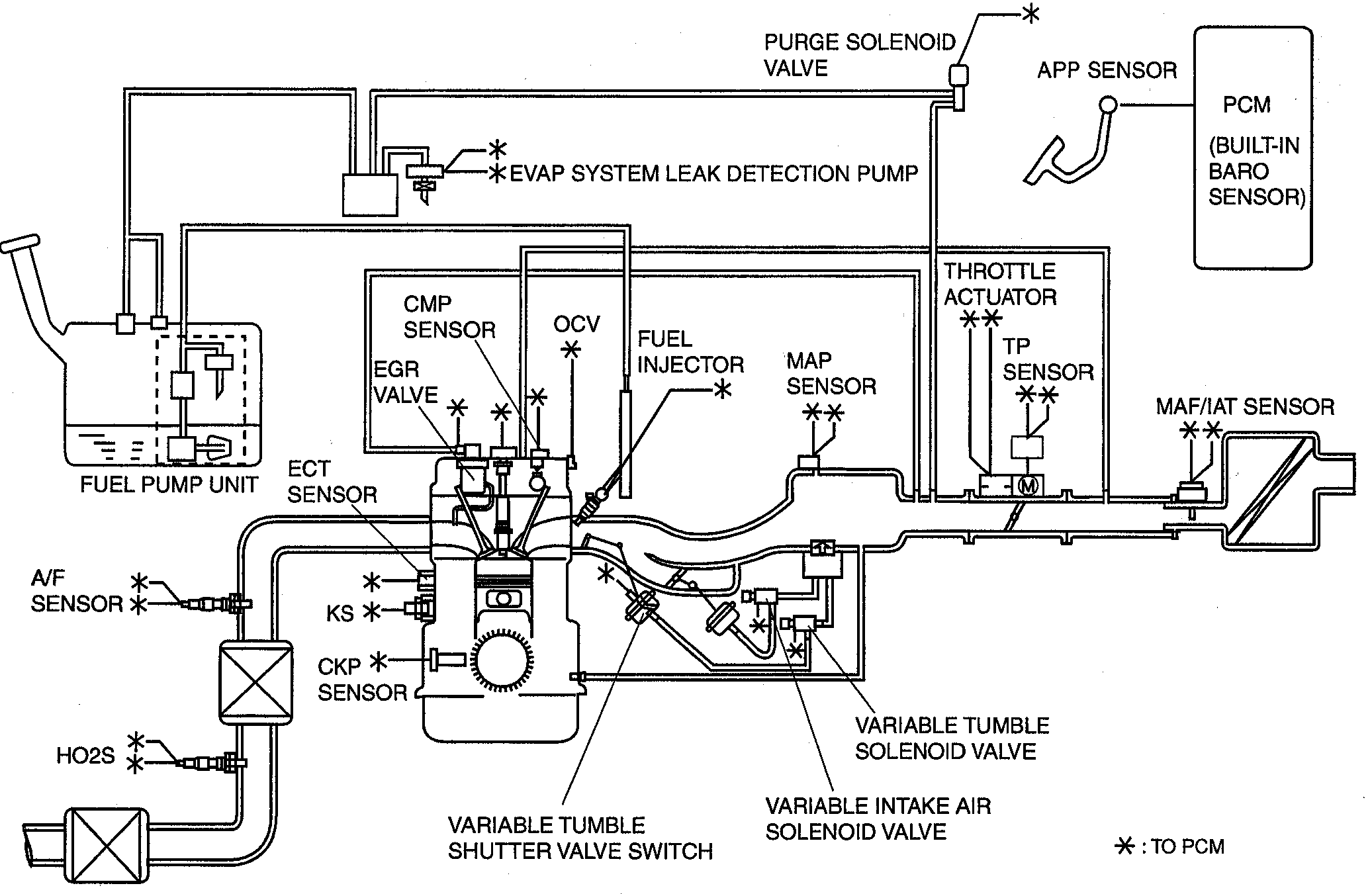

Fig 1: Control System Diagram - Except For California Emission Regulation Applicable Model
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
