Monitoring System And Control System Device Relationship Chart [L3]

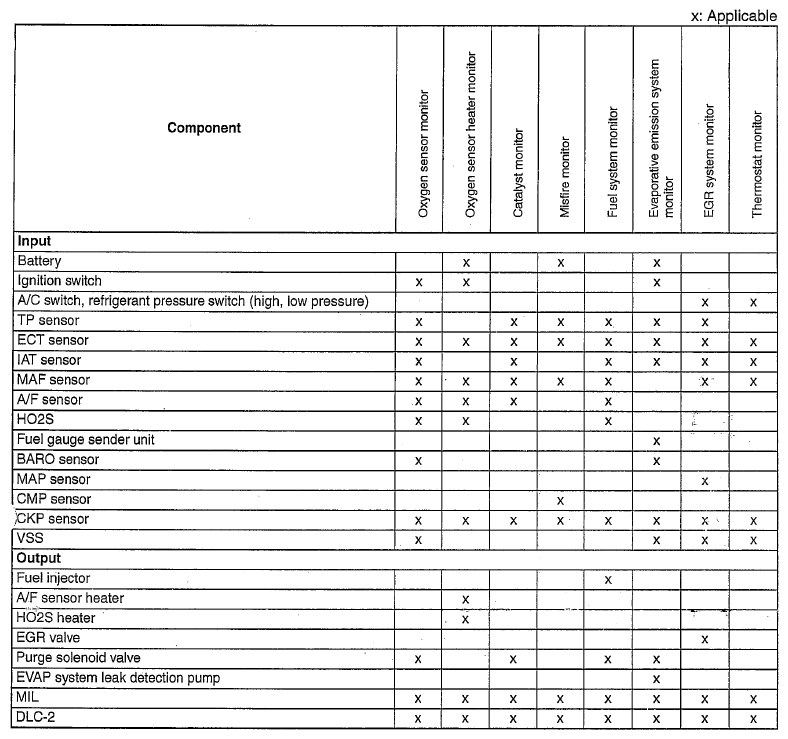

Fig 1: Monitoring System And Control System Device Relationship Chart (L3)
