Steering Location Index

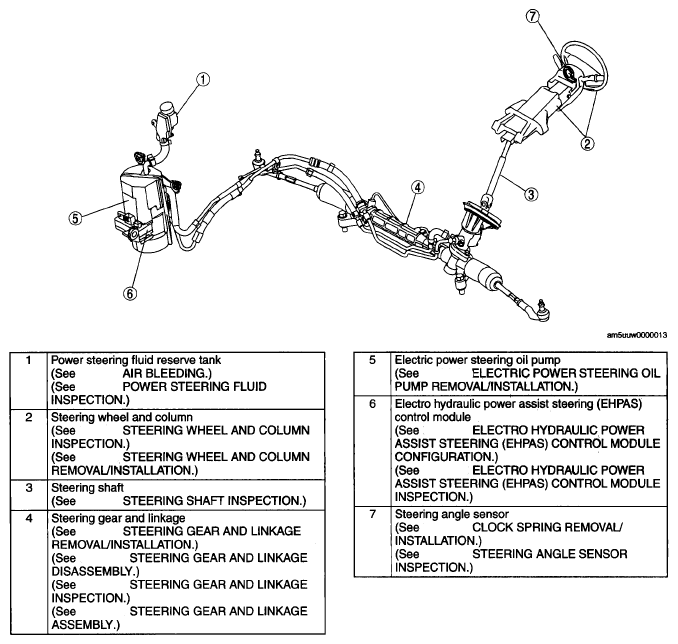

Fig 1: Identifying Power Steering Components
G05543260Courtesy of MAZDA MOTORS CORP.
