Audio Control Switch Removal/Installation: Notes

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION .)
Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

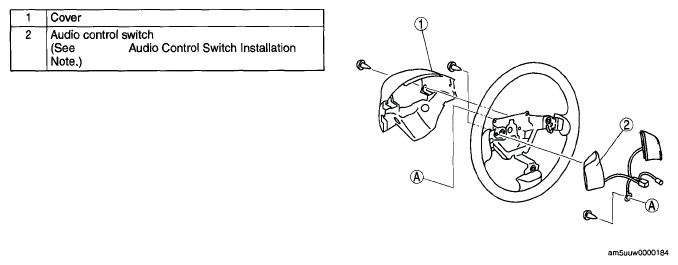

Fig 1: Identifying Audio Control Switch Remove/Install Components
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
