Selector Lever Component Removal/Installation: Notes
- Remove the battery cover, battery duct, battery, battery box, battery tray and PCM component. (See BATTERY REMOVAL/INSTALLATION [L3] .)
- Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3] .)
- Remove the side wall.
- Remove the heat insulator (front and center).
- Remove the selector lever knob and indicator component.
- Remove the center console. (See CENTER CONSOLE REMOVAL/INSTALLATION .)
- Remove the rear blower motor. (Vehicle with rear blower unit.) (See REAR BLOWER MOTOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER ].)

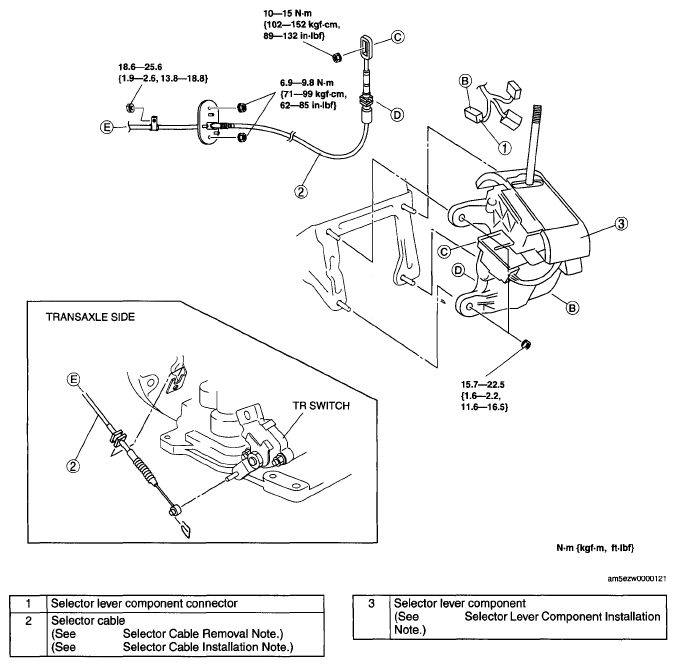

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
