SAS Control Module Connector End View

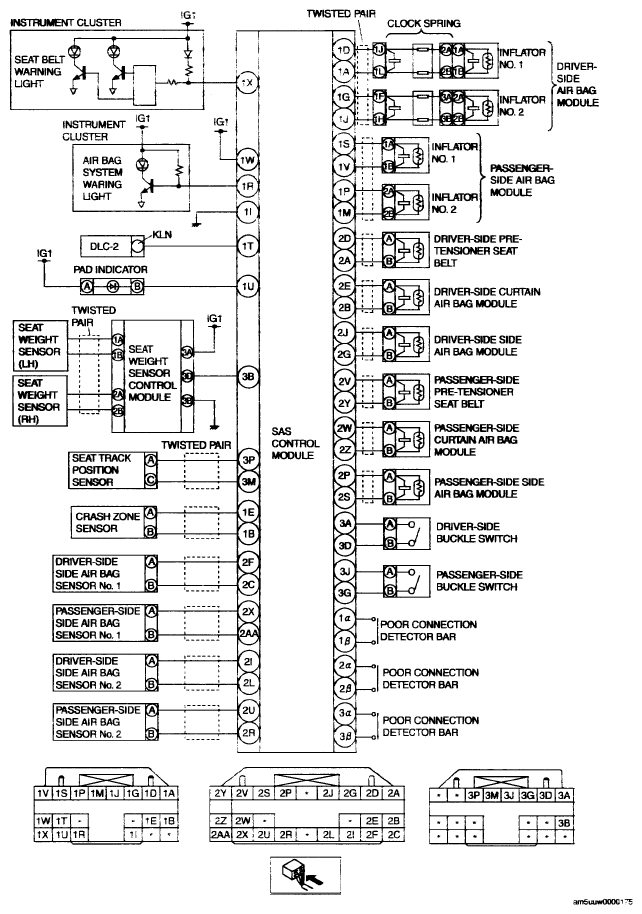

Fig 1: SAS Control Module Connector End View
G05545325Courtesy of MAZDA MOTORS CORP.


Fig 1: SAS Control Module Connector End View
G05545407Courtesy of MAZDA MOTORS CORP.
