Hood Latch And Release Lever Removal/Installation: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.
  3. Adjust the hood. (See HOOD ADJUSTMENT .)

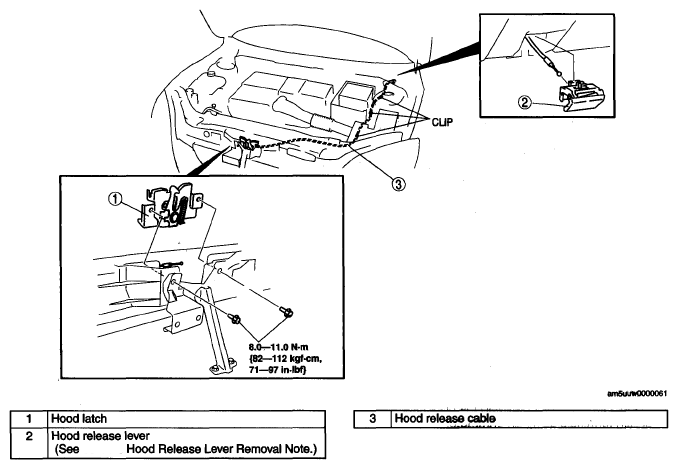

    Fig 1: View Of Hood Latch And Release Lever Components With Torque Specifications
    G05543470Courtesy of MAZDA MOTORS CORP.
