Abs System Wiring Diagram

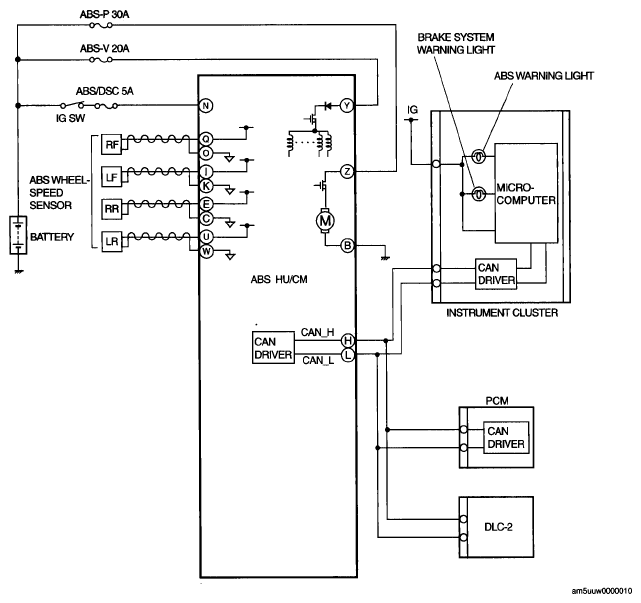

Fig 1: ABS System - Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
