Front Abs Wheel-Speed Sensor Removal/Installation

  1. Remove the mudguard.
  2. Remove in the order indicated in the table.

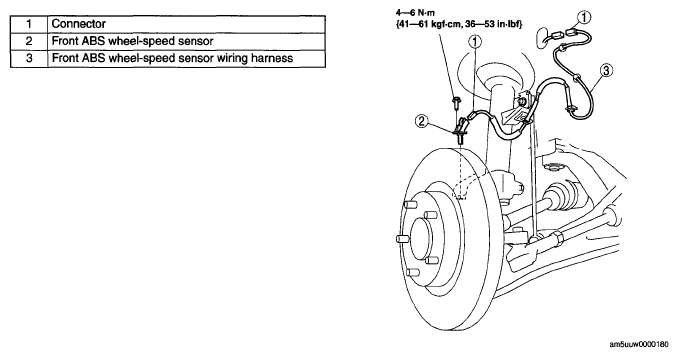

    Fig 1: Front ABS Wheel-Speed Sensor Replacement Components With Torque Specifications
    G05545022Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
