Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (L5)
›
Control System Diagram [L5]
Control System Diagram [L5]

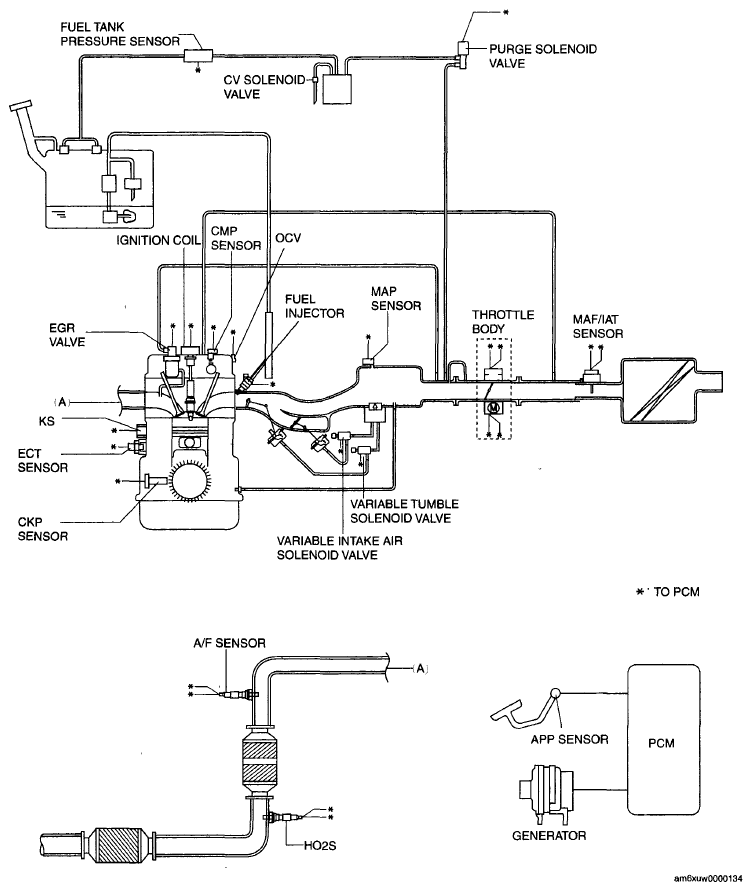

Fig 1: Control System Diagram [L5]
