Control System Wiring Diagram [L5]
Control System Wiring Diagram [L5]

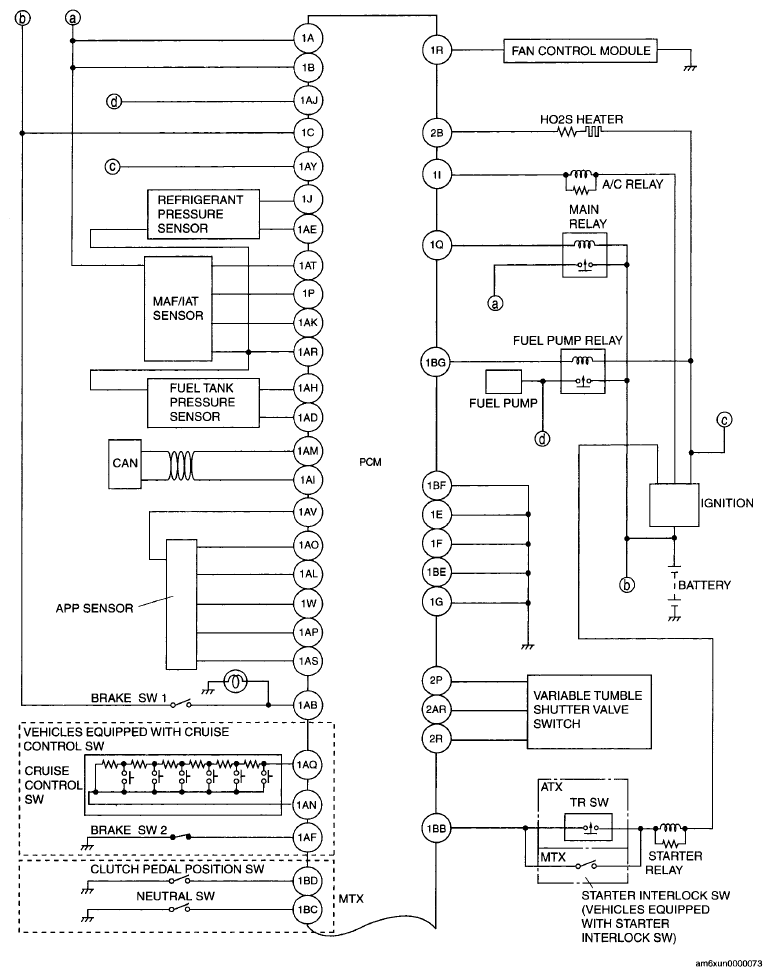

Fig 1: Control System Wiring Diagram [L5] (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

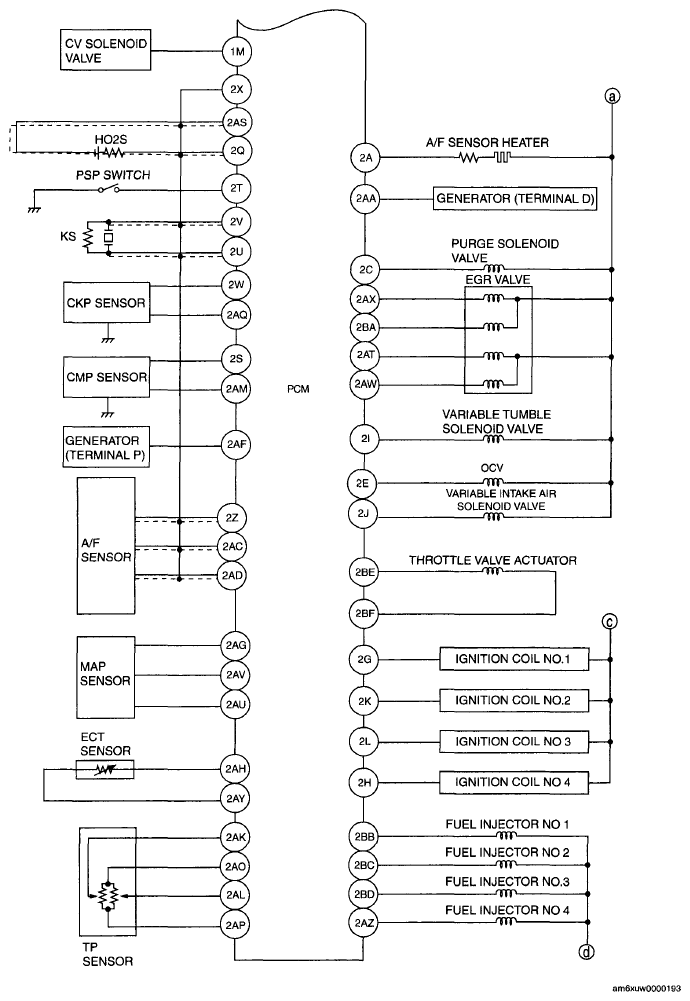

Fig 2: Control System Wiring Diagram [L5] (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
