Symptom Troubleshooting [Power Window System - Auto-Open/Close Function)
›
Power Window System Wiring Diagram [Power Window Systems (Auto-Open/Close Function)]
›
Power Window Main Switch
Power Window Main Switch

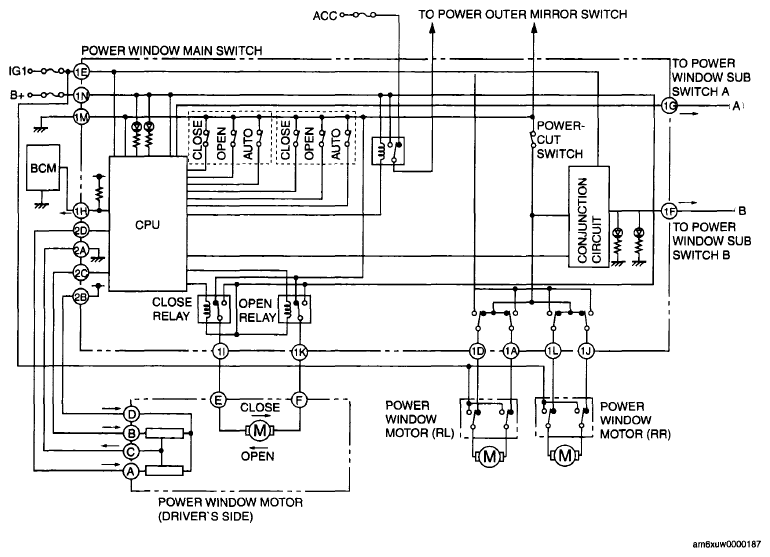

Fig 1: Power Window Main Switch Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
