Symptom Troubleshooting [Power Window System - Auto-Open/Close Function)
›
Power Window System Wiring Diagram [Power Window Systems (Auto-Open/Close Function)]
›
Power Window Subswitch
Power Window Subswitch

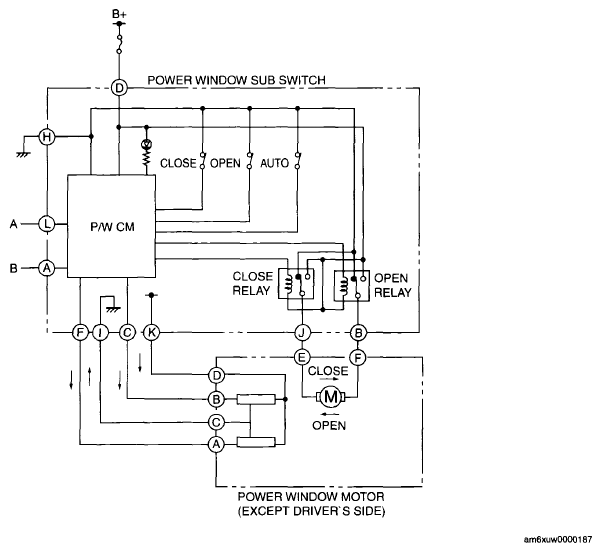

Fig 1: Power Window Subswitch Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
