Abs/TCS System Wiring Diagram

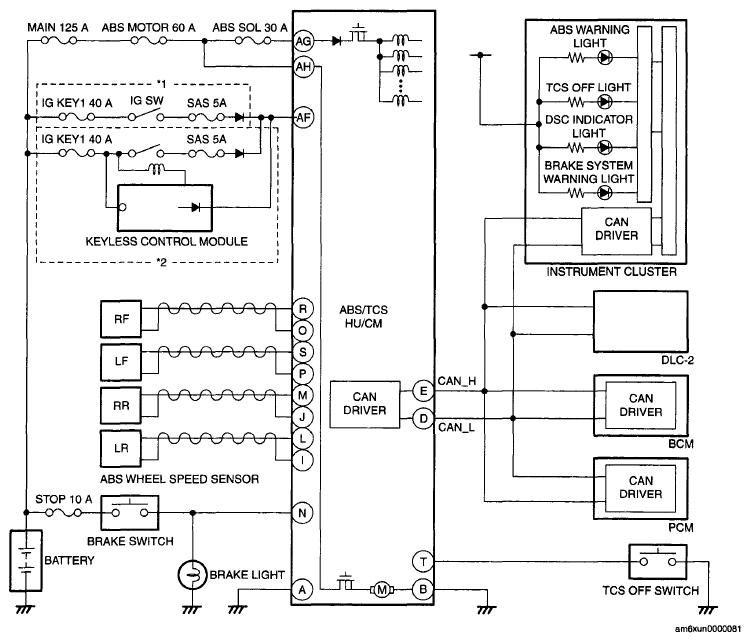

Fig 1: ABS/TCS System Wiring Diagram

Courtesy of MAZDA MOTORS CORP.

*1 : Without advanced keyless entry and push button start system

*2 : With advanced keyless entry and push button start system
