Steering Location Index

L5

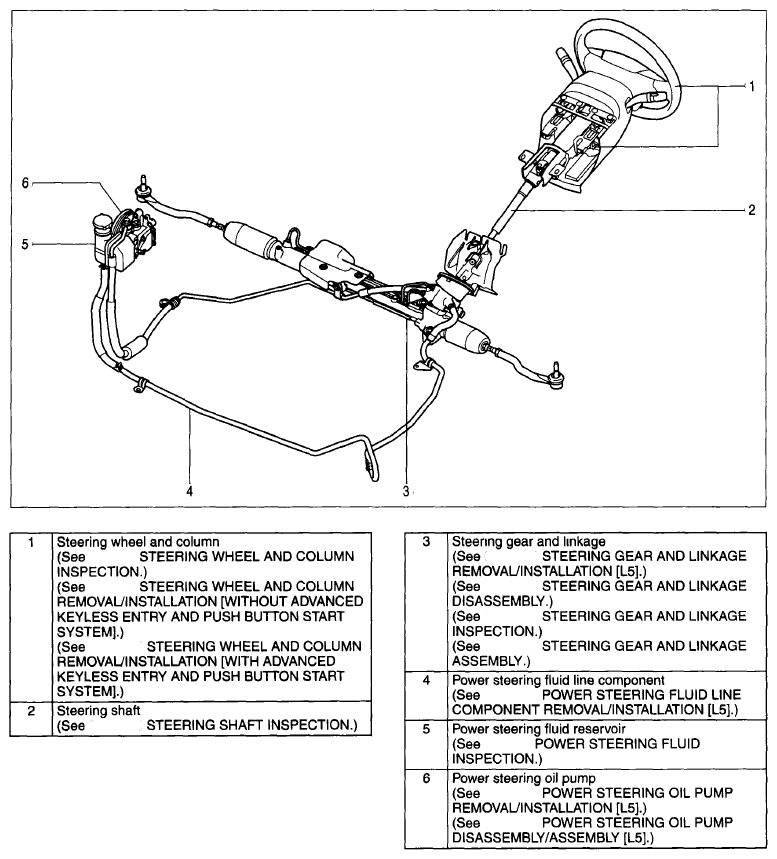

Fig 1: Identifying Steering Components - L5
G06200193Courtesy of MAZDA MOTORS CORP.

MZI-3.7

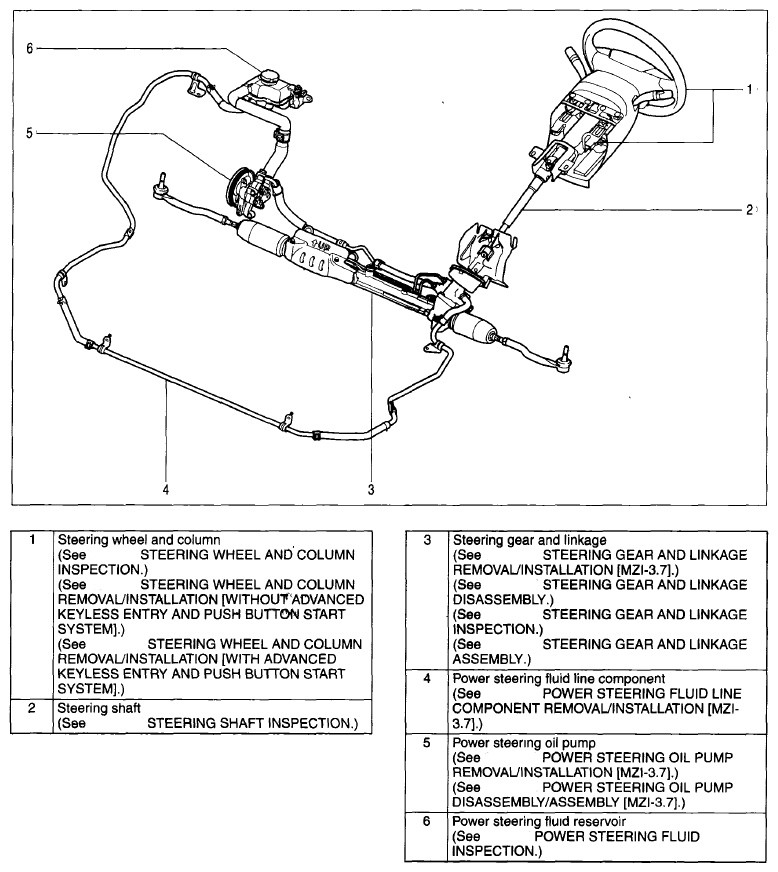

Fig 2: Identifying Steering Components - MZI-3.7
G06200194Courtesy of MAZDA MOTORS CORP.
