BSM Control Module (LH) Connector End View

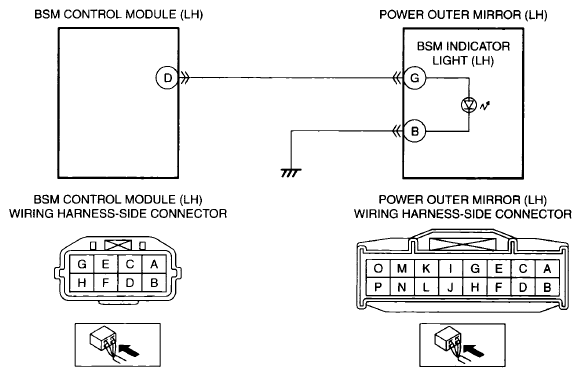

Fig 1: BSM Control Module (LH) Connector End View
G06206165Courtesy of MAZDA MOTORS CORP.
