Body Control Module Connector End View

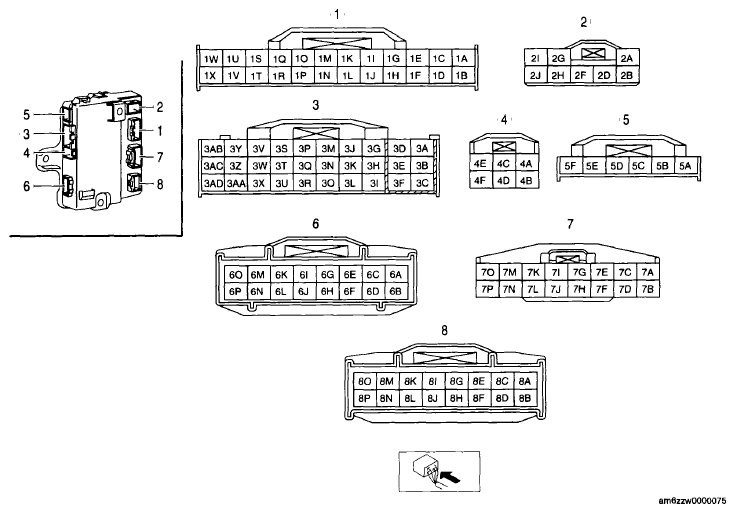

Fig 1: Body Control Module Connector End View
G06205770Courtesy of MAZDA MOTORS CORP.
