Brake Pipe Installation Note

Align the alignment marks made before removal and install the brake pipe to the ABS/TCS HU/CM referring to the figure.

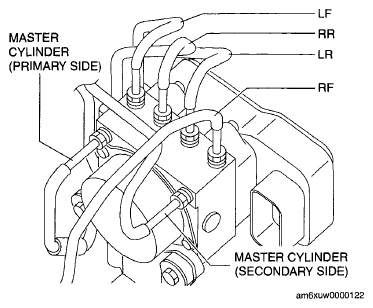

Fig 1: Identifying ABS/TCS HU/CM Brake Pipe
Courtesy of MAZDA MOTORS CORP.
