Clock Spring Connector End View

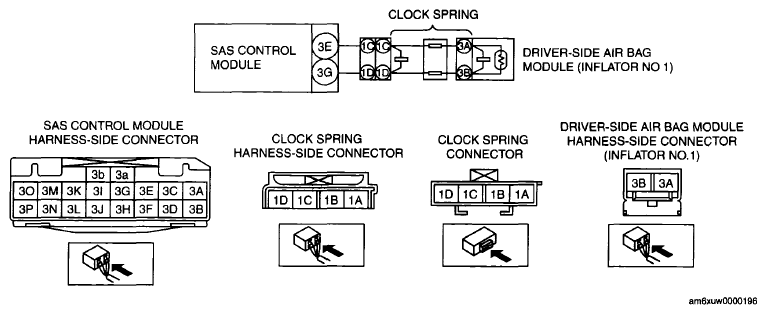

Fig 1: Clock Spring Connector End View
G06200400Courtesy of MAZDA MOTORS CORP.

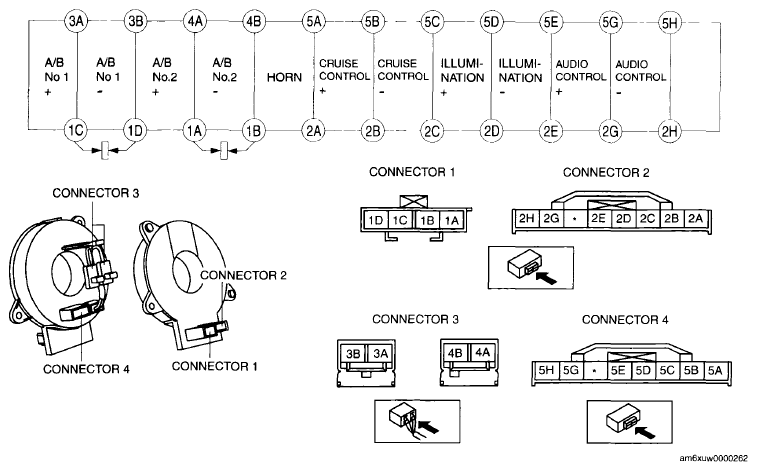

Fig 1: Clock Spring Connector End View
G06200461Courtesy of MAZDA MOTORS CORP.
