BSM Off Switch Connector End View
BSM Off Switch Connector End View

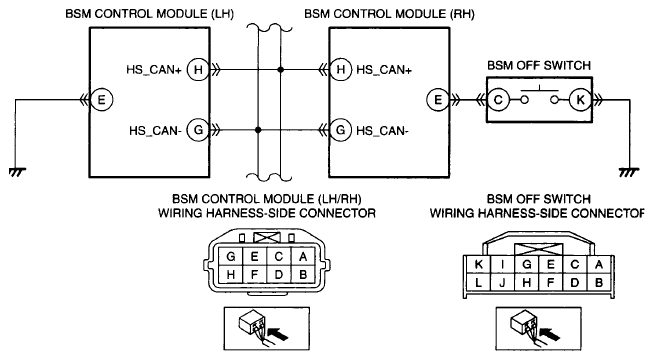

Fig 1: BSM Off Switch Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
