Power Steering Oil Pump Disassembly/Assembly [L5]: Notes

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

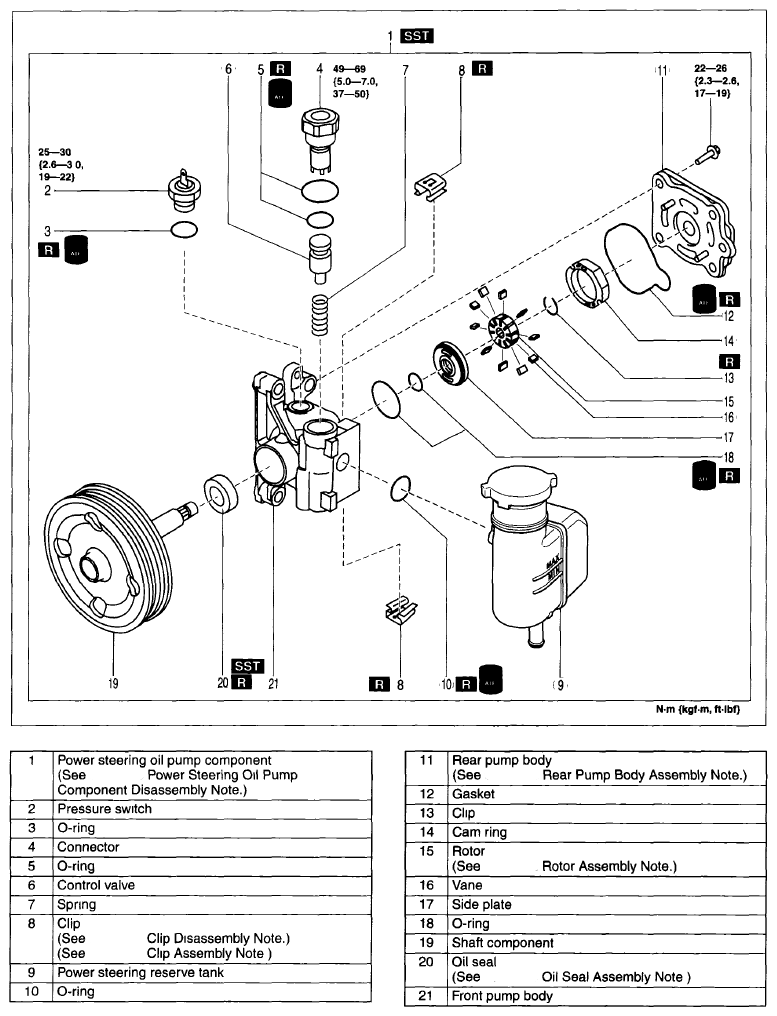

    Fig 1: Exploded View Of Power Steering Oil Pump
    G06200305Courtesy of MAZDA MOTORS CORP.
