Steering Lock Component, Steering Lock Mounting Bolt Installation Note

Assemble section A of the steering lock component to the section B of the steering shaft.
Temporarily install the steering lock component to the steering shaft using a new steering lock mounting bolt.

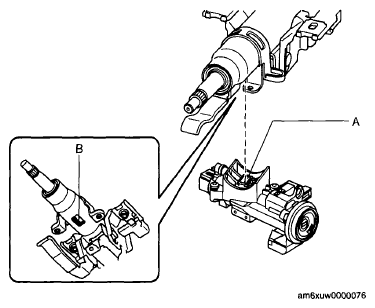

Fig 1: Identifying Assemble Section Position Of Steering Lock Component
Courtesy of MAZDA MOTORS CORP.
Tighten the steering lock mounting bolt until the head breaks off.

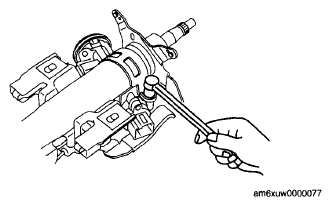

Fig 2: Tightening Steering Lock Mounting Bolt Using Torque Wrench
Courtesy of MAZDA MOTORS CORP.
