Restraints Control Module Connector End View (C2041B)

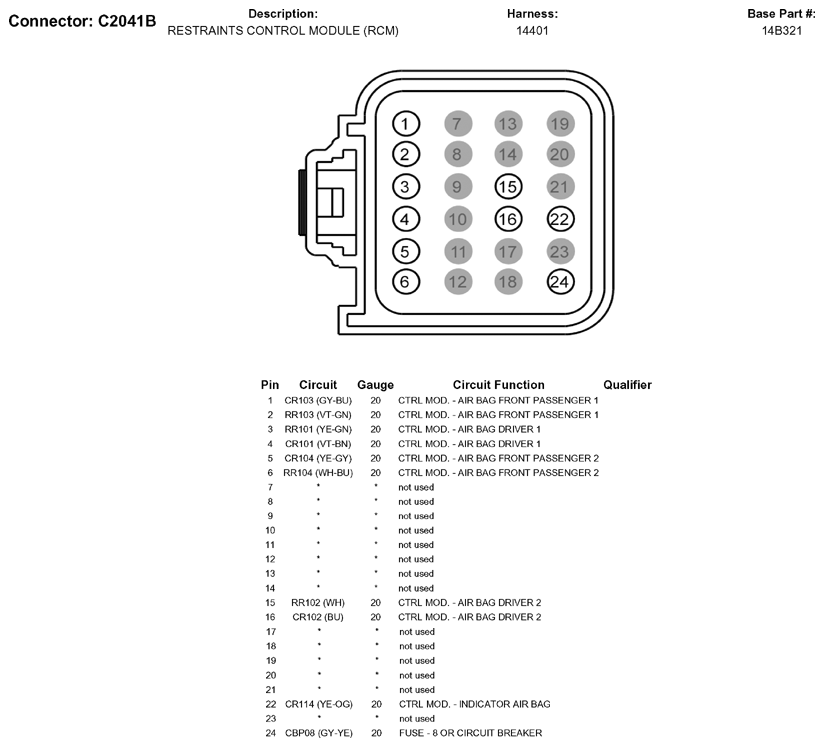

Fig 1: Restraints Control Module Connector End View (C2041B)
G05788583
