Multifunction Switch Connector End View (C202A)

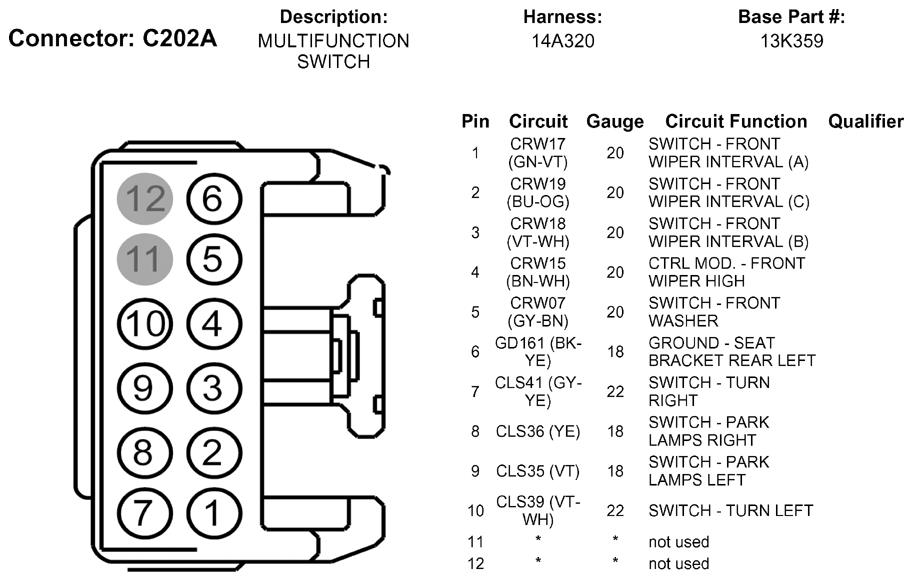

Fig 1: Multifunction Switch Connector End View (C202A)
G05788453
