Ignition Switch: Notes

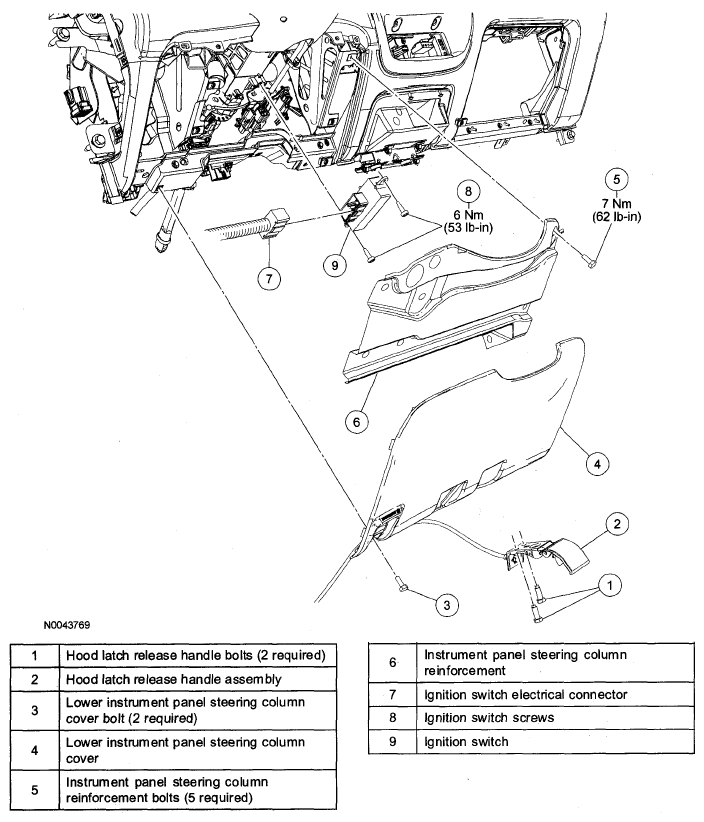

Fig 1: Exploded View Of Ignition Switch With Torque Specifications
G04930819Courtesy of MAZDA MOTORS CORP.
