Lens Removal Note

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Push the hooks of the lens using a tape-wrapped flathead screwdriver, and remove the lens.

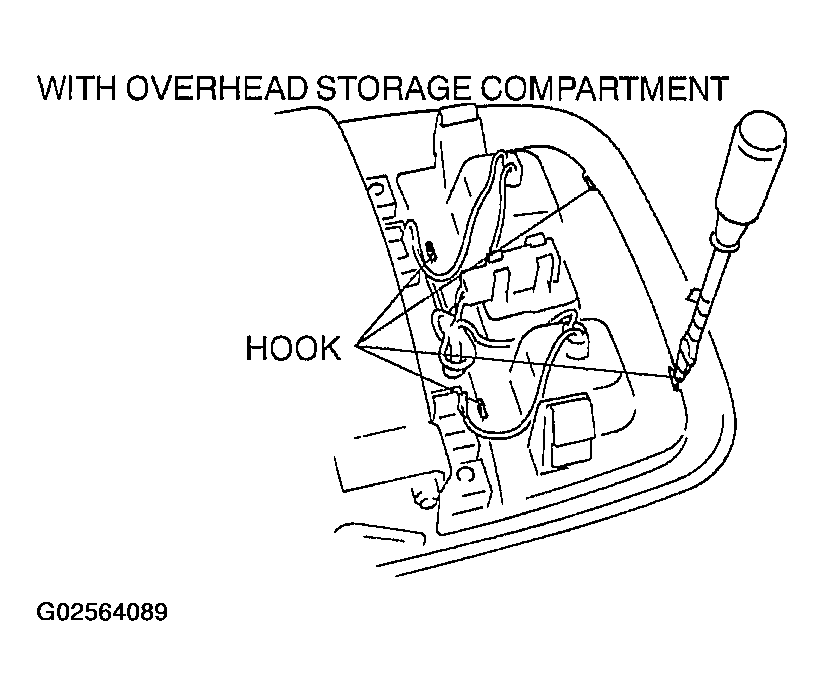

Fig 1: Removing Map Light Lens (With Overhead Storage Compartment)
Courtesy of MAZDA MOTORS CORP.

Fig 2: Removing Map Light Lens (Without Overhead Storage Compartment)
Courtesy of MAZDA MOTORS CORP.
