Climate Control Assembly Connector End View (C294A)

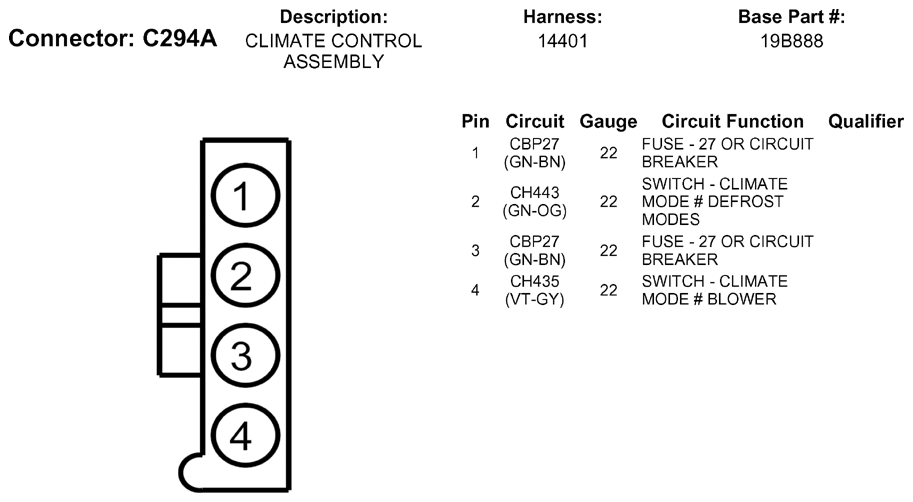

Fig 1: Climate Control Assembly Connector End View (C294A)
G05788487
