Climate Control Assembly Connector End View (C294D)

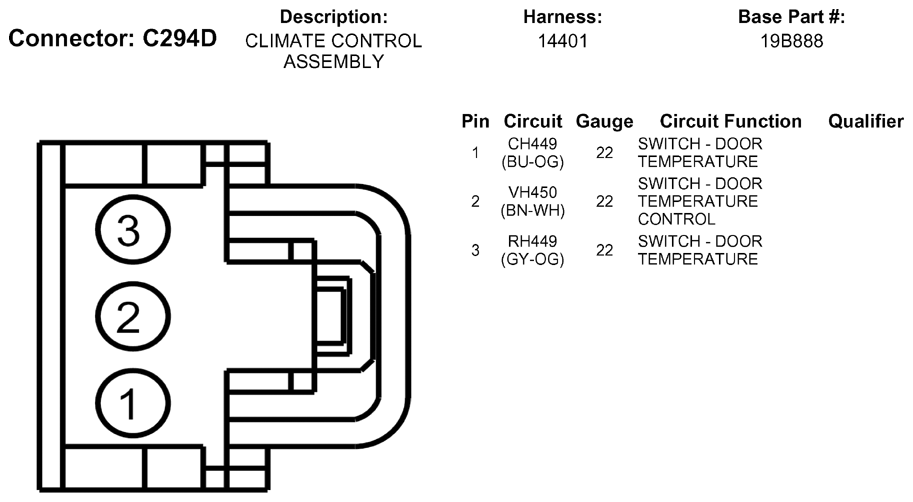

Fig 1: Climate Control Assembly Connector End View (C294D)
G05788490
