Speed Control Servo Connector End View (C122)

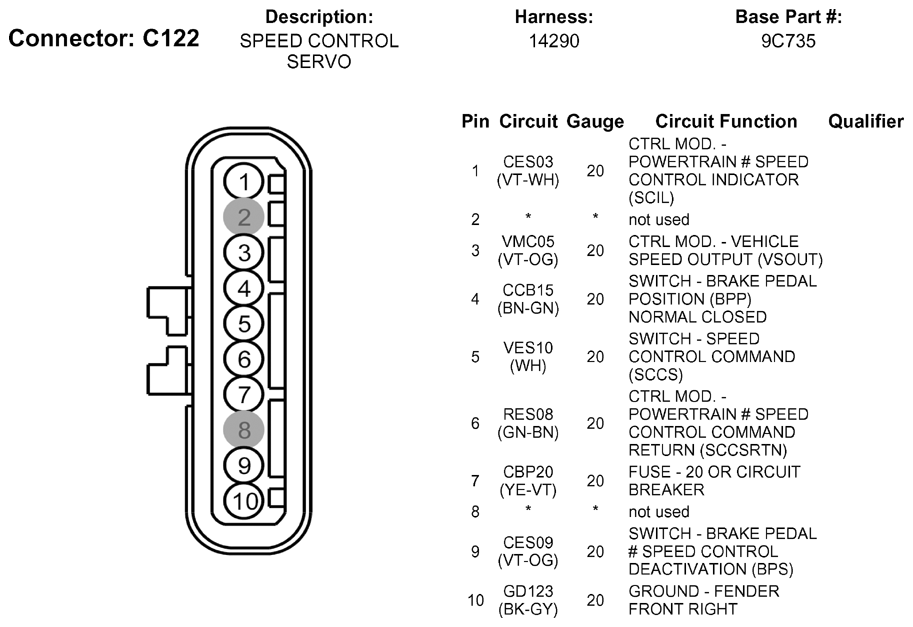

Fig 1: Speed Control Servo Connector End View (C122)
G05788415
