Main Light Switch Connector End View (C205)

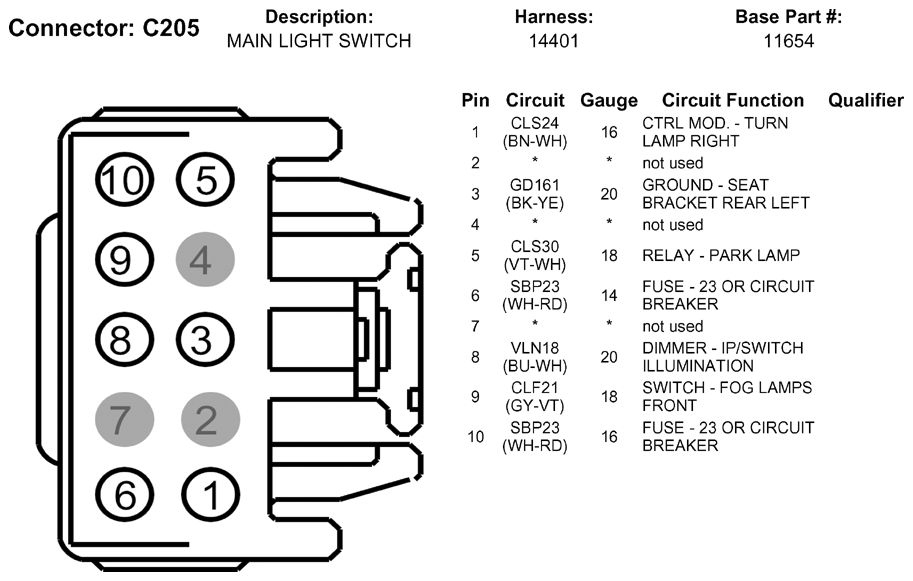

Fig 1: Main Light Switch Connector End View (C205)
G05788455
