Steering Column Components

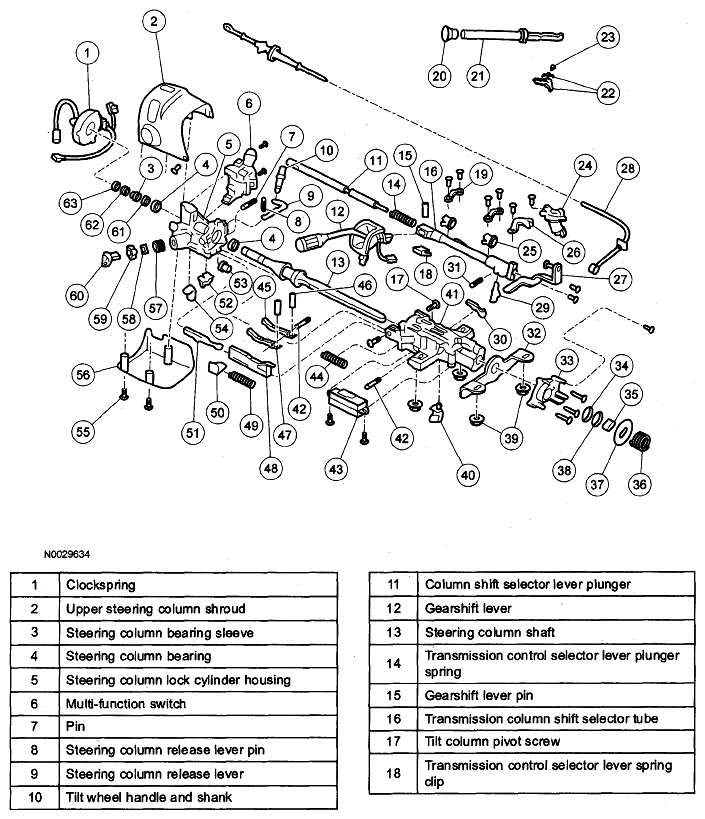

Fig 1: Exploded View Of Steering Column Components 1 Of 2
G04930709Courtesy of MAZDA MOTORS CORP.

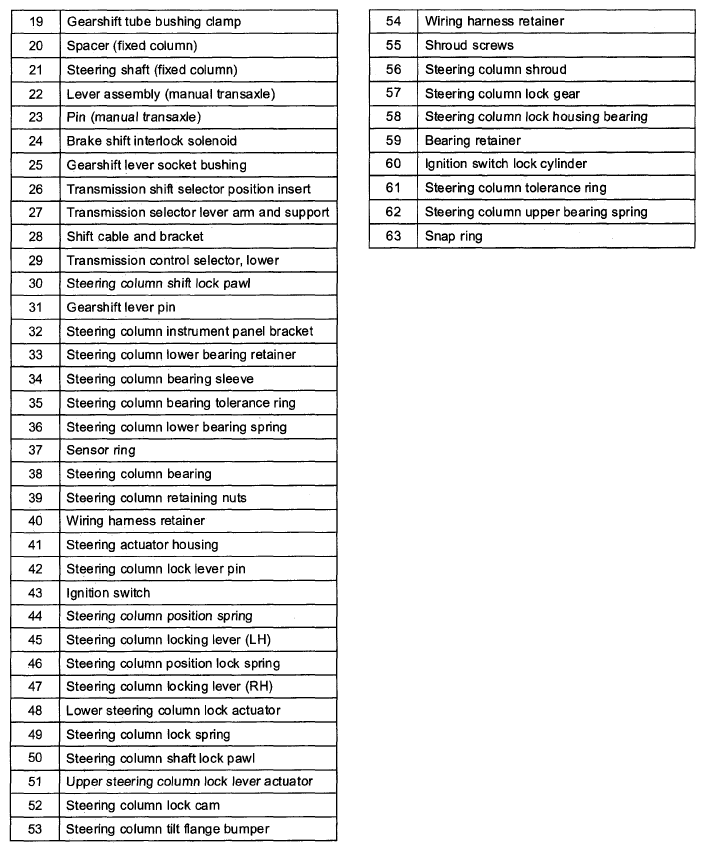

Fig 2: Exploded View Of Steering Column Components 2 Of 2
G04930710Courtesy of MAZDA MOTORS CORP.
