Control System Component Location Index [L3 With TC]
Control System Component Location Index [L3 With TC]

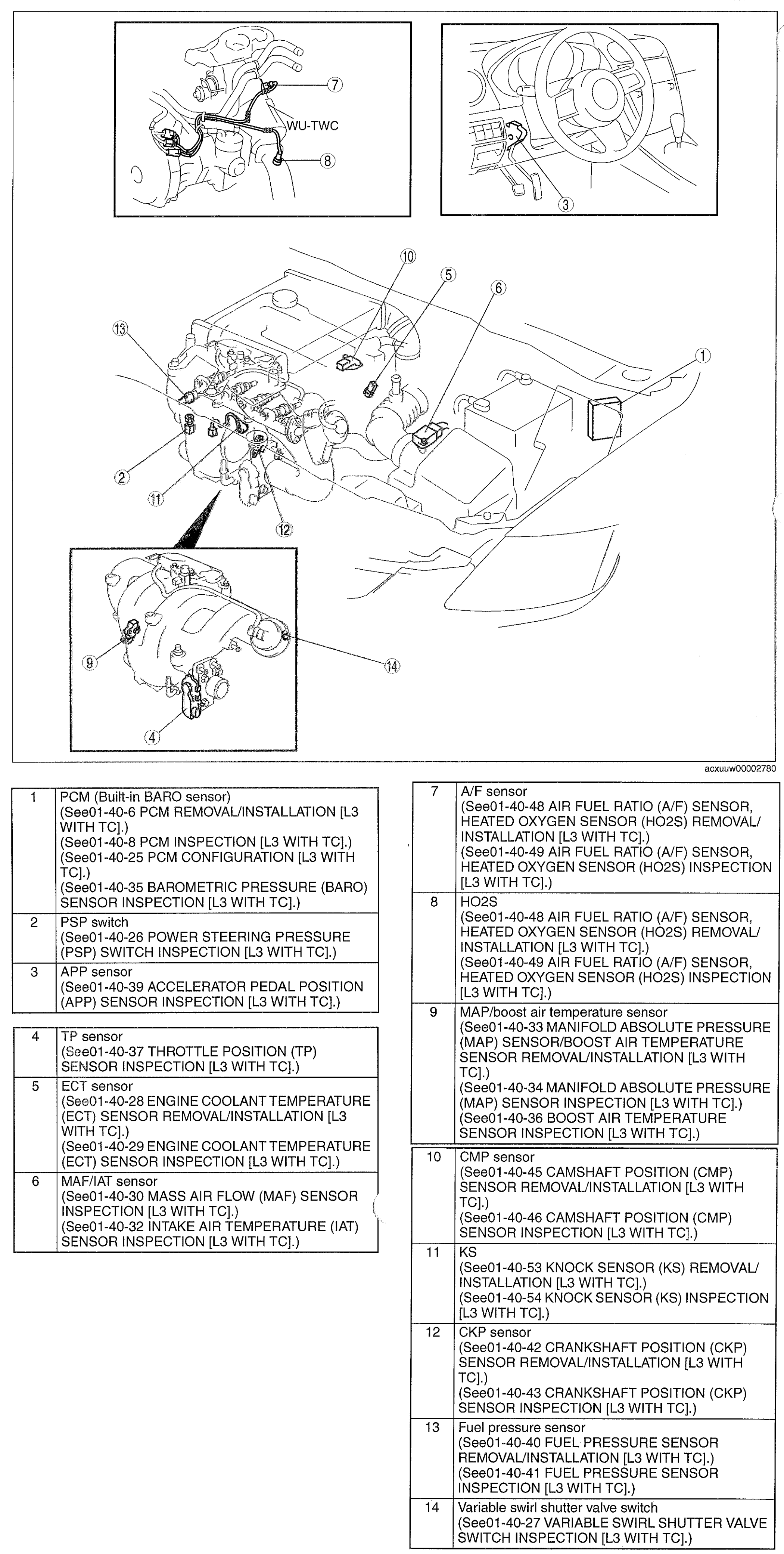

Fig 1: Identifying Control System Components (L3 With TC)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
