CX-7 Touring, 2.3 L, FWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Control System Diagram [L3 With TC]
Control System Diagram [L3 With TC]

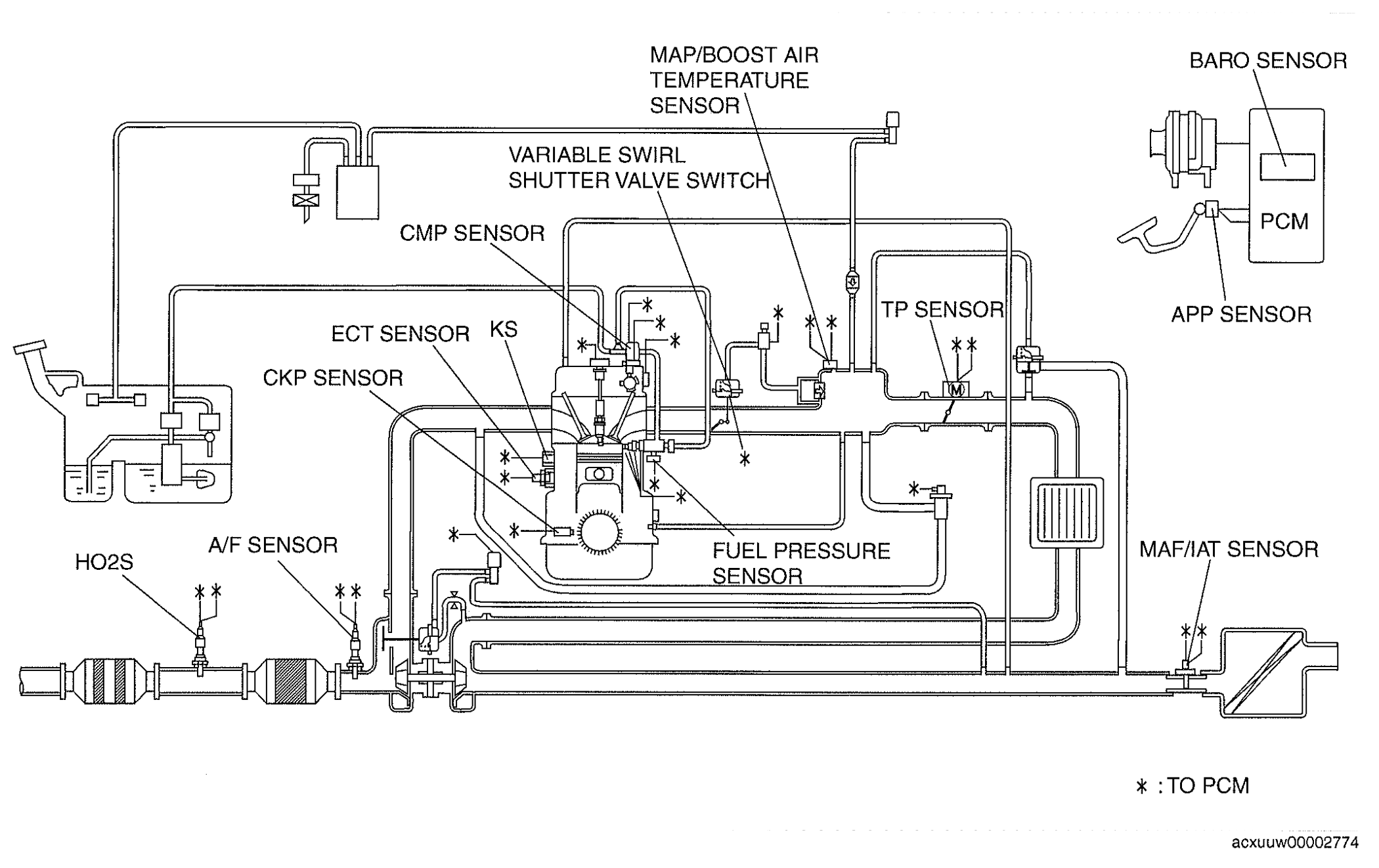

Fig 1: Control System Diagram (L3 With TC)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
