Engine Control System (MZI-3.7)
›
Control System Diagram [MZI-3.7]
Control System Diagram [MZI-3.7]

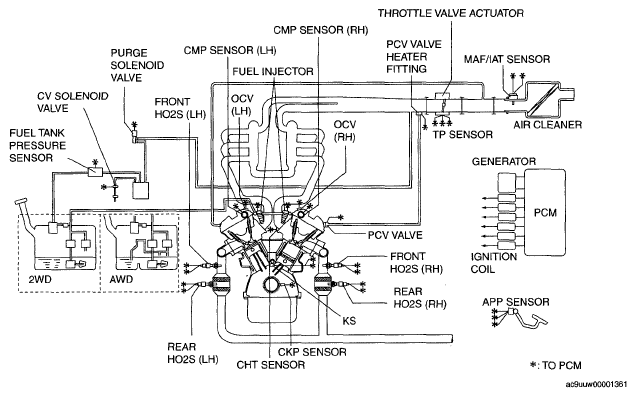

Fig 1: Control System Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
