Control System Location Index [MZI-3.7]
Control System Location Index [MZI-3.7]

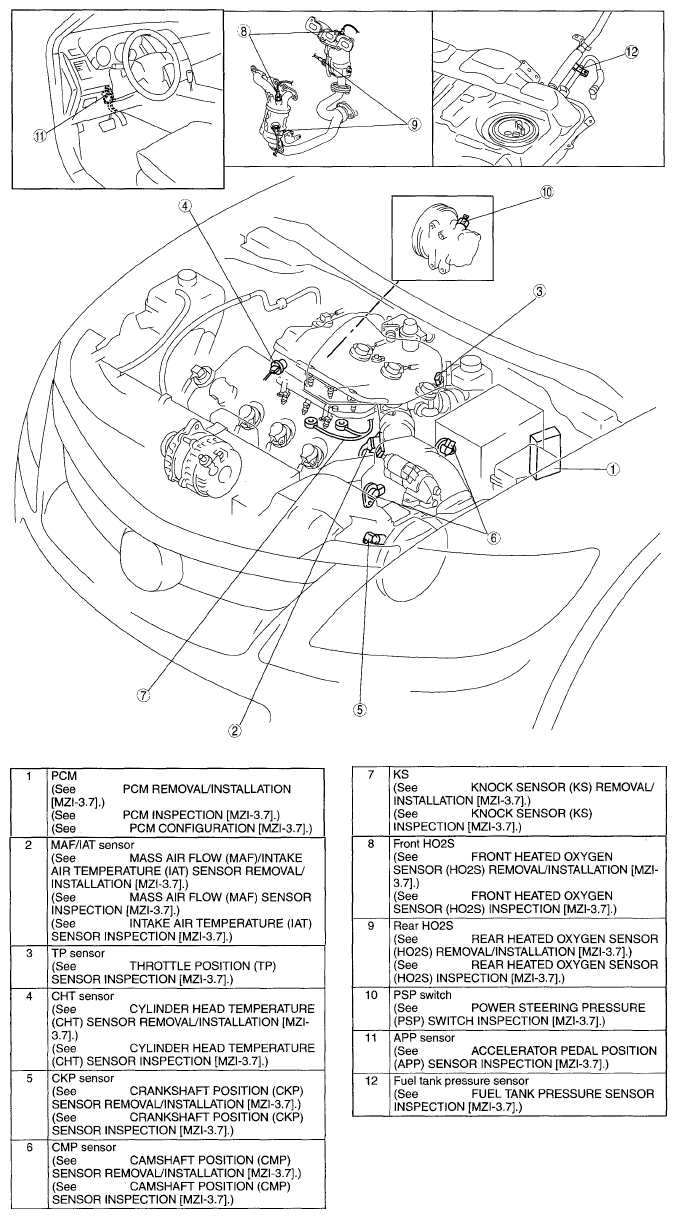

Fig 1: Identifying Control System Components Location
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
