Symptom Troubleshooting [Power Window System (Auto-Open/Close Function)]
›
Power Window System Wiring Diagram [Power Window Systems (Auto-Open/Close Function)]
›
Power Window Main Switch
Power Window Main Switch

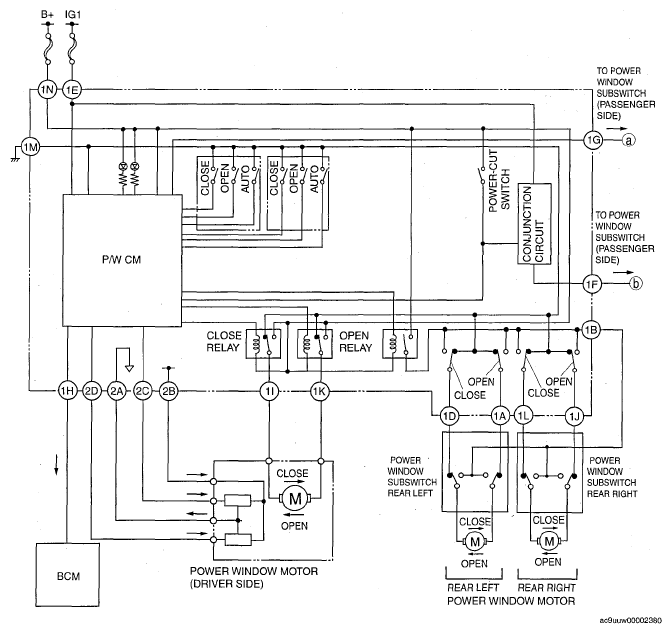

Fig 1: Power Window Main Switch - Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
