TCS Off Switch Removal/Installation: Notes

  1. Remove the dashboard under cover (LH). See DASHBOARD REMOVAL/INSTALLATION .
  2. Remove the hood release lever. See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .
  3. Remove in the order indicated in the table.

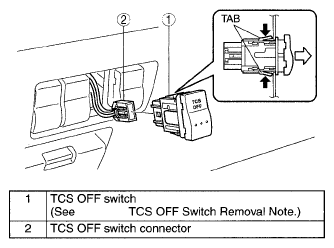

    Fig 1: Identifying TCS OFF Switch & TCS OFF Switch Connector
    G05508435Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
