Control System Location Index [LF]

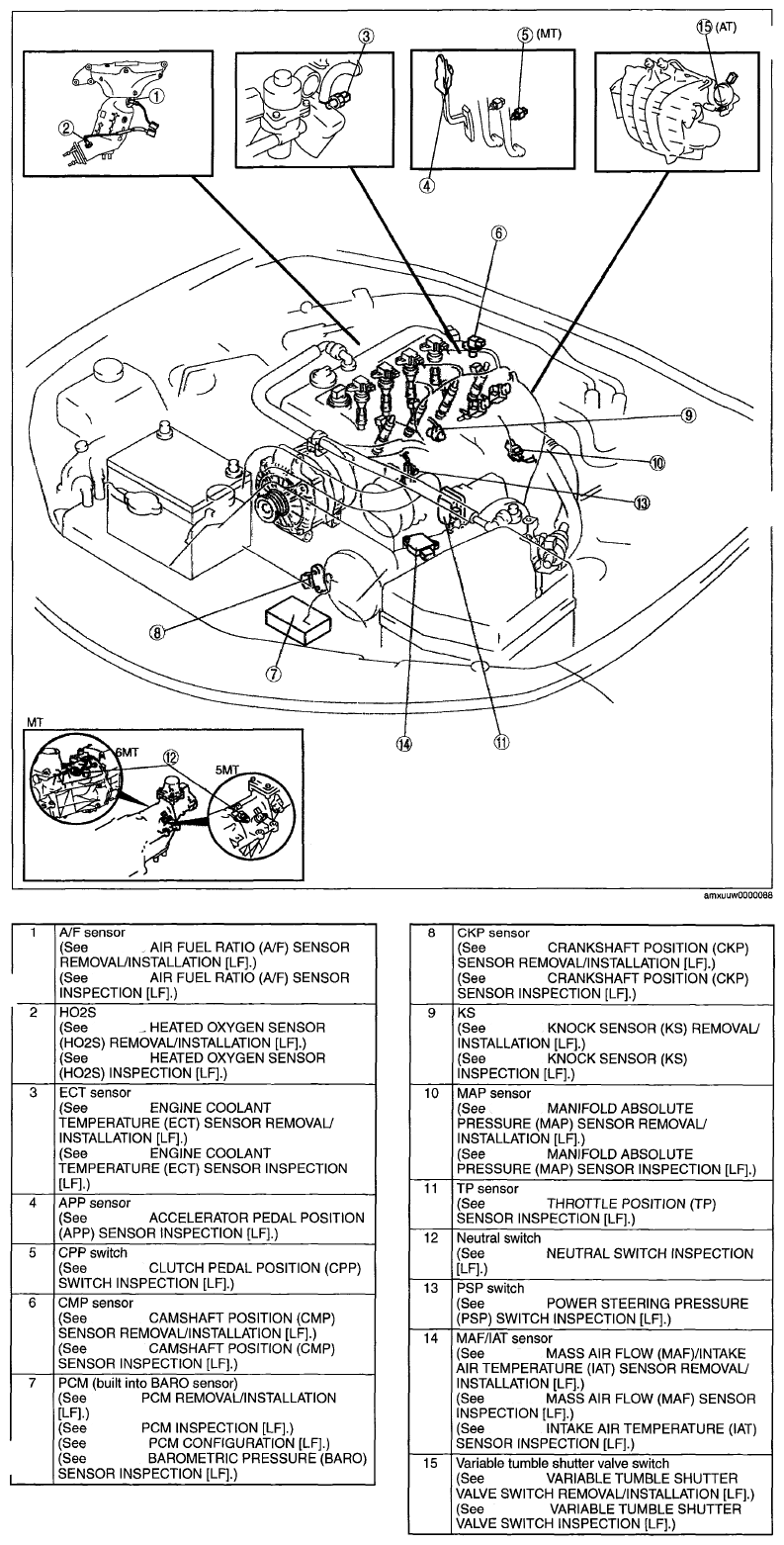

Fig 1: Identifying Control System Components Location
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
