Circuit Open/Short Inspection: Notes

1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [LF] )
2. Inspect the following wiring harness for open or short circuit (continuity Inspection).

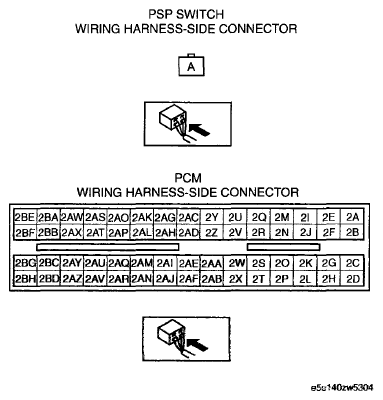

Fig 1: Identifying PSP Switch And PCM Connector

Courtesy of MAZDA MOTORS CORP.
