Main Fuse Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the main fuse block cover.
  3. Remove in the order indicated in the table.

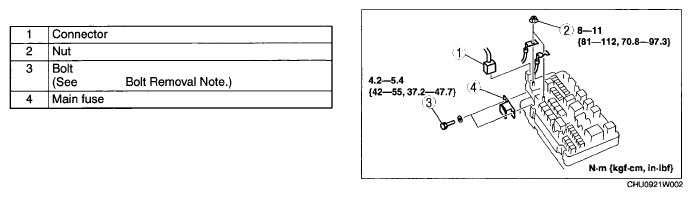

    Fig 1: Identifying Main Fuse, Connector, Bolt And Nut
    G05986358Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
