Brake Pipe Installation Note

1. Align the marks made before removal and install the brake pipe to the DSC HU/CM and brake pipe joint referring to the figure.
2. Tighten the brake pipe to the specified torque using the commercially available flare nut wrench.

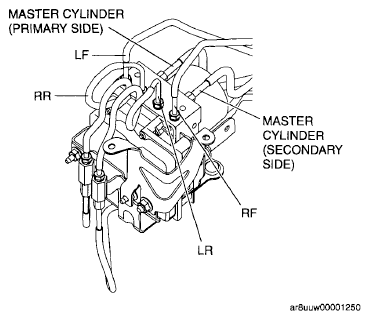

Fig 1: Identifying DSC HU/CM Brake Pipe

Courtesy of MAZDA MOTORS CORP.
