Knock Sensor (KS) Removal/Installation - 3.0L: Notes

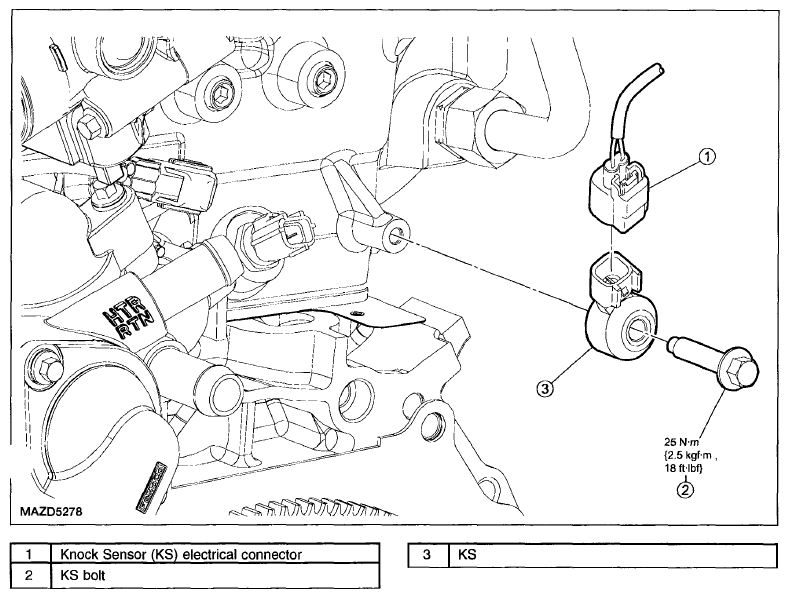

Cylinder Head-Mounted Knock Sensor (KS)

Fig 1: Identifying Cylinder Head-Mounted Knock Sensor Removal/Installation - 3.0L

Courtesy of MAZDA MOTORS CORP.

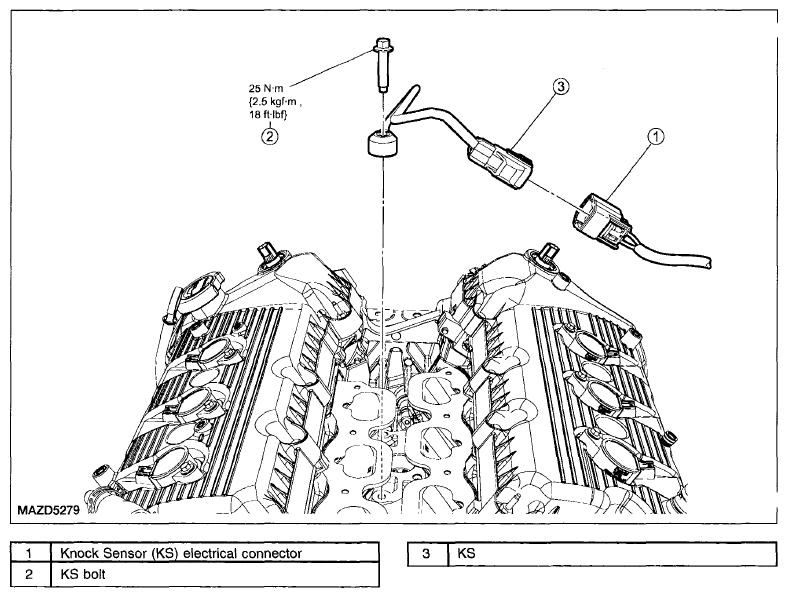

Engine Block-Mounted Knock Sensor (KS)

Fig 2: Identifying Engine Block-Mounted Knock Sensor Removal/Installation - 3.0L

Courtesy of MAZDA MOTORS CORP.
