Powertrain Control Module (Pcm) Removal/Installation - 3.0L: Notes

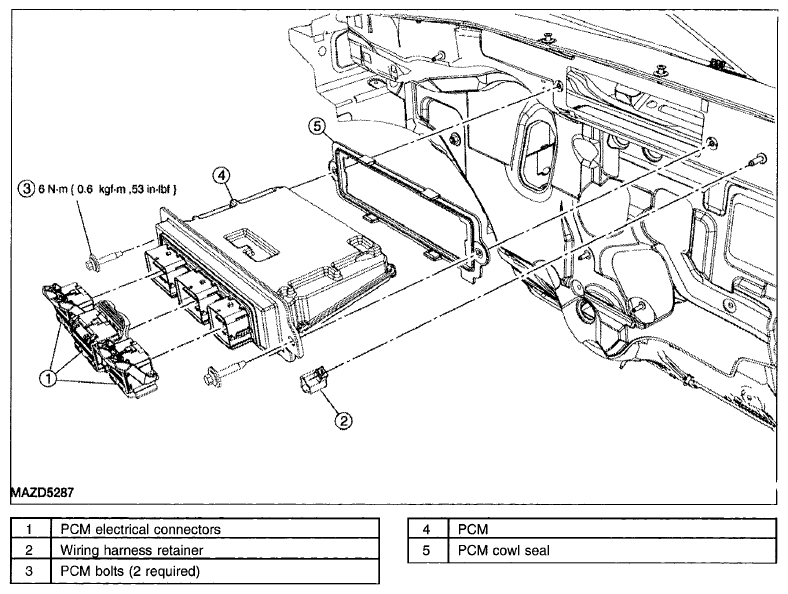

Fig 1: Identifying Powertrain Control Module Removal/Installation - 3.0L
G06157199Courtesy of MAZDA MOTORS CORP.
