Engine Ignition Components - Exploded View
›
Notes
Engine Ignition Components - Exploded View: Notes

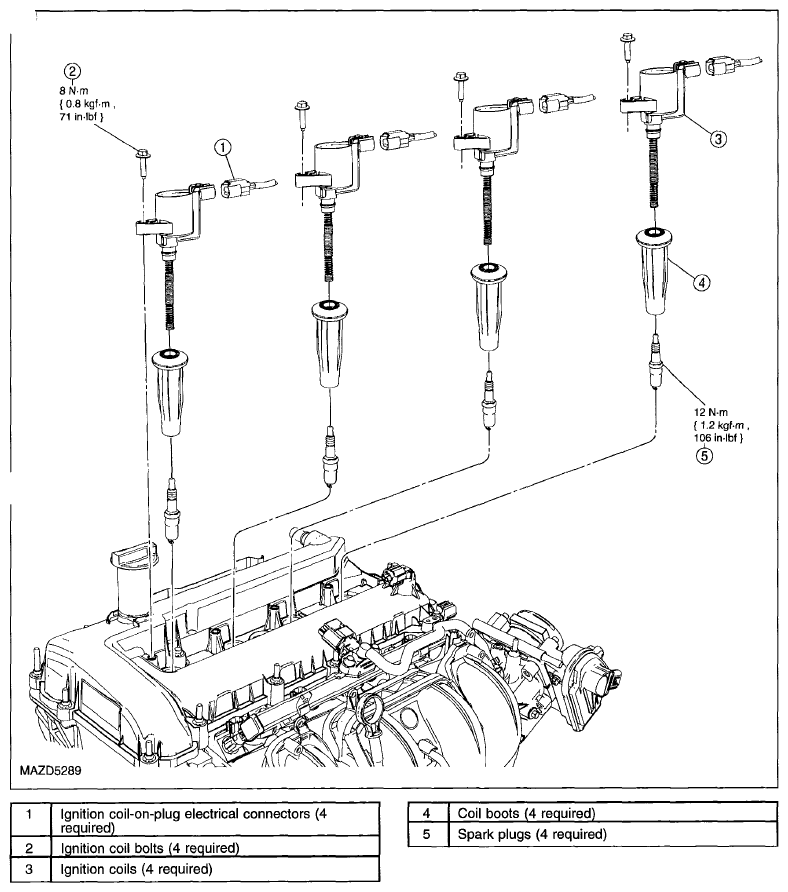

Fig 1: Identifying Engine Ignition Components
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
