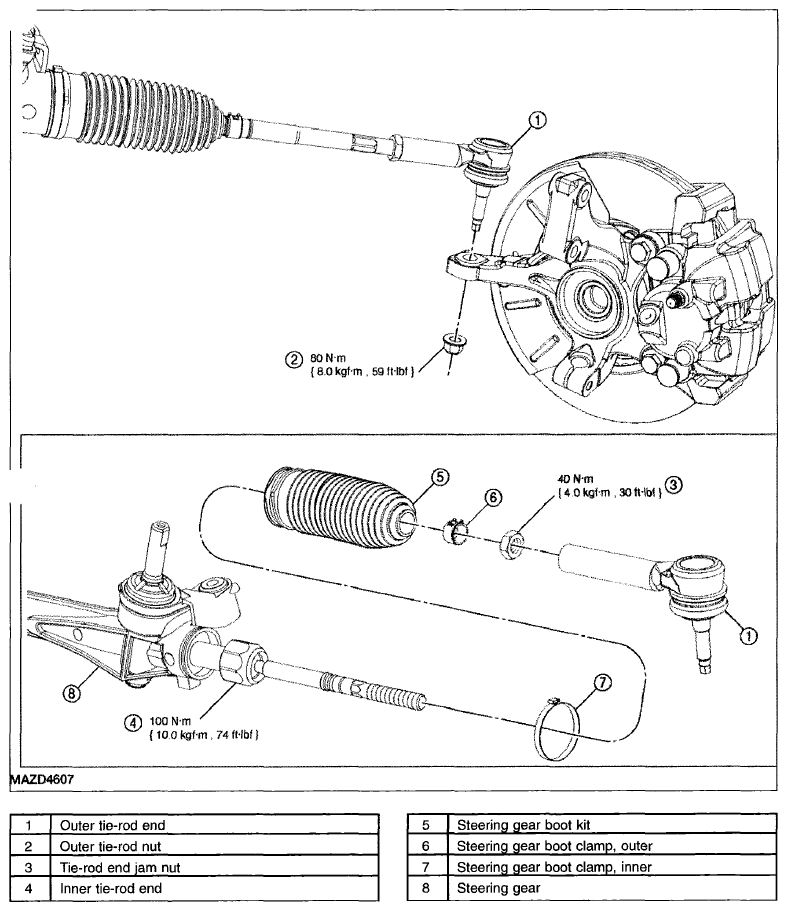

Steering Linkage - Exploded View

Fig 1: Identifying Steering Linkage Components
G06158891Courtesy of MAZDA MOTORS CORP.

For additional information, see the procedures in this service information.
